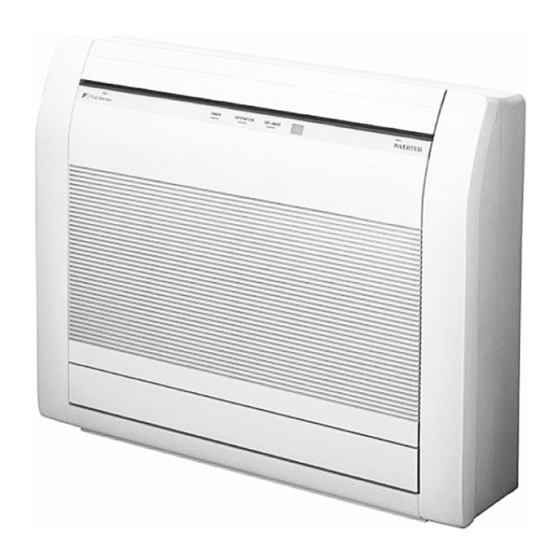

SPLIT TYPE
ROOM AIR CONDITIONER
FLOOR TYPE
Indoor unit
AGYG09LVCB
AGYG12LVCB
C ONT EN T S
SPECIFICATIONS. . . . . . . . . . . . . . . . . . .
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . .
REFRIGERANT SYSTEM DIAGRAM. . . .
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . .
INDOOR PCB CIRCUIT DIAGRAM . . . . .
OUTDOOR PCB CIRCUIT DIAGRAM . . .
ERROR DETECTION . . . . . . . . . . . . . . .
PARTS (INDOOR UNIT) . . . . . . . . . . . . .
PARTS (OUTDOOR UNIT) . . . . . . . . . . .
ACCESSORIES . . . . . . . . . . . . . . . . . . .
Outdoor unit
AOYG09LVCN
AOYG12LVCN
1
2
3
4
5
8
10
12
17
20
Advertisement
Table of Contents
Related Manuals for Fujitsu AGYG09LVCB
Summary of Contents for Fujitsu AGYG09LVCB
-
Page 1: Room Air Conditioner
SPLIT TYPE ROOM AIR CONDITIONER FLOOR TYPE Indoor unit Outdoor unit AGYG09LVCB AOYG09LVCN AGYG12LVCB AOYG12LVCN C ONT EN T S SPECIFICATIONS....DIMENSIONS ..... . - Page 2 SPE C I F I C A T I O N S ELECTRICAL DATA NOISE LEVEL High speed 40 dB TYPE Cool & heat inverter INDOOR INDOOR UNIT AGYG09LVCB AGYG12LVCB Medium speed 35 dB UNIT Low speed 29 dB OUTDOOR UNIT AOYG12LTCN...
-
Page 3: Indoor Unit
D I M E N S I O N S Drain hose length : 600 mm unit : mm Drain pipe diameter Inside : 15.8 mm Outside : 16.7 mm INDOOR UNIT OUTDOOR UNIT 2011.10.04... - Page 4 R E F R I GE R ANT S Y S T E M D IA G RAM Heat exchanger (indoor unit) 2-Way valve 3-Way valve Compressor Muffler Strainer 4-Way valve Expansion valve Heat exchanger (outdoor unit) Strainer Refrigerant pipe diameter Refrigerant direction Liquid : 1/4"...
- Page 8 INDOOR UNIT INDICATOR PCB ASSEMBLY K06DD-0801HSE-F0 06 JB20 / JB20 09 PAP / JB20 1061 L60 1061 L550 D201 SLR-343DC CN201 ORANGE CN203 CN202 D202, D203 SLR-343MC GREEN R201 <1/4W> I C201 SW201 C201 GP1UM261 KSHC611BT + C202 <F> SW202 SSSS213000 2011.08.31...
-
Page 11: Error Detection
E RRO R DETE C TIO N Indoor unit display If you use a wireless remote control, the lamp on the photo detector unit will output error codes by way of blinking patterns. If you use a wired remote control, error codes will appear on the remote control display. - Page 12 OUTDOOR UNIT ERROR Discharge temperature abnormal 0.5 second on / 0.5 second off IPM overcurrent protection 0.1 second on / 0.1 second off Thermistor abnormal CT abnormal 2.0 second on / 2.0 second off 0.1 second on / 2.0 second off Compressor location abnormal 5.0 second on / 5.0 second off Fan abnormal...
- Page 13 PA RT S INDOOR UNIT Description Parts number Intake Grille Assy 9316418059 Rope Assy 9316458017 Air Filter 9316189010 Front Panel 9316185012 Front Panel L 9316187016 Front Panel R 9316186019 Air Clean Filter Assy 9316474017 Bracket Panel 9316272019 Remote control 9379219006 Remote Control Holder 9305642045 2011.10.05...
- Page 14 INDOOR UNIT Description Parts number Description Parts number Control Cover 9316201019 Display PCB Assy 9707571042 Controller PCB Assy (09) 9708532042 Display Cover 9316191013 Controller PCB Assy (12) 9708532059 Thermistor Holder 9316192010 Control Box 9316200012 Motor Holder 9316195011 Terminal 9900385026 Bearing C Assy 9306628017 Terminal Bracket 9316269019...
- Page 15 INDOOR UNIT Description Parts number Evaporator Total Assy 9316091016 Evaporator Holder 9316199019 Water Seal 9316271012 2011.10.05...
- Page 16 INDOOR UNIT Casing assy Description Parts number Top Cover 9316207011 R and L Louver U 9316208018 Fan Guard 9316211018 Casing 9316204010 Gear Case 9316213012 Gear A 9309994003 Step Motor (up / down) 9900384043 Louver U 9316205017 Louver Z 9316206014 Reinforcement 9316378018 2011.10.05...
-
Page 17: Drain Pan Assy
INDOOR UNIT Drain pan assy Description Parts number Motor Step (Damper) 9900384050 Micro Switch (Limit Switch) 9900424015 Motor Step (Damper Lock Left) 9900384067 Drain Cap 9316177017 Drain Pan U 9316214019 Drain Hose Assy 9314147029 Step Motor (Damper Lock Right) 9900384074 Damper 9316216013 R and L Louver Z... - Page 18 P A R T S OUTDOOR UNIT Ref. Description Part number 1 Thermistor Holder 9313954031 2 Protective Net 9332492002 3 Top Panel Assy 9318464023 4 Front Panel Assy 9318463026 5 Emblem 9319151007 Cabinet Left Assy 9318461015 7 Grip 9317588003 Switch Cover Assy 9318499001 9 Cabinet Right Assy 9318462005...
- Page 19 Ref. Description Part number Heater Unit Assy 9900616014 Heater Holder A 9318631005 Heater Holder B 9318651003 Base Assy 9316885059 Condenser Total Assy 9317089098 Compressor Assy 9317117005 2-way Valve Assy 9332371000 OUTDOOR UNIT 3-way Valve Sub Assy 9317109000 4-way Valve Assy 9317110020 Solenoid 9970110047...
- Page 20 OUTDOOR UNIT Ref. Description Part number 41 Sealed Panel 9309913011 Controller PCB Assy (09) 9708753188 Controller PCB Assy (12) 9708753195 43 PCB Holder 9313074029 Inverter Case Assy 9315690074 45 Terminal Bracket 9315233073 46 Terminal 9900435028 -- Outdoor Thermistor 9900544010 -- Thermistor Assy 9900614027 2011.10.05...
-
Page 21: Indoor Unit
A C C ES S O R IE S INDOOR UNIT Name and Shape Q'ty Part No. Bracket panel For indoor unit installation 9316272019 Remote control Use for air conditioner 9379219006 operation Battery (penlight) For remote control 0600185527 Remote control holder Hold a remote control 9305642045 Cloth tape... - Page 22 1109G3974...
