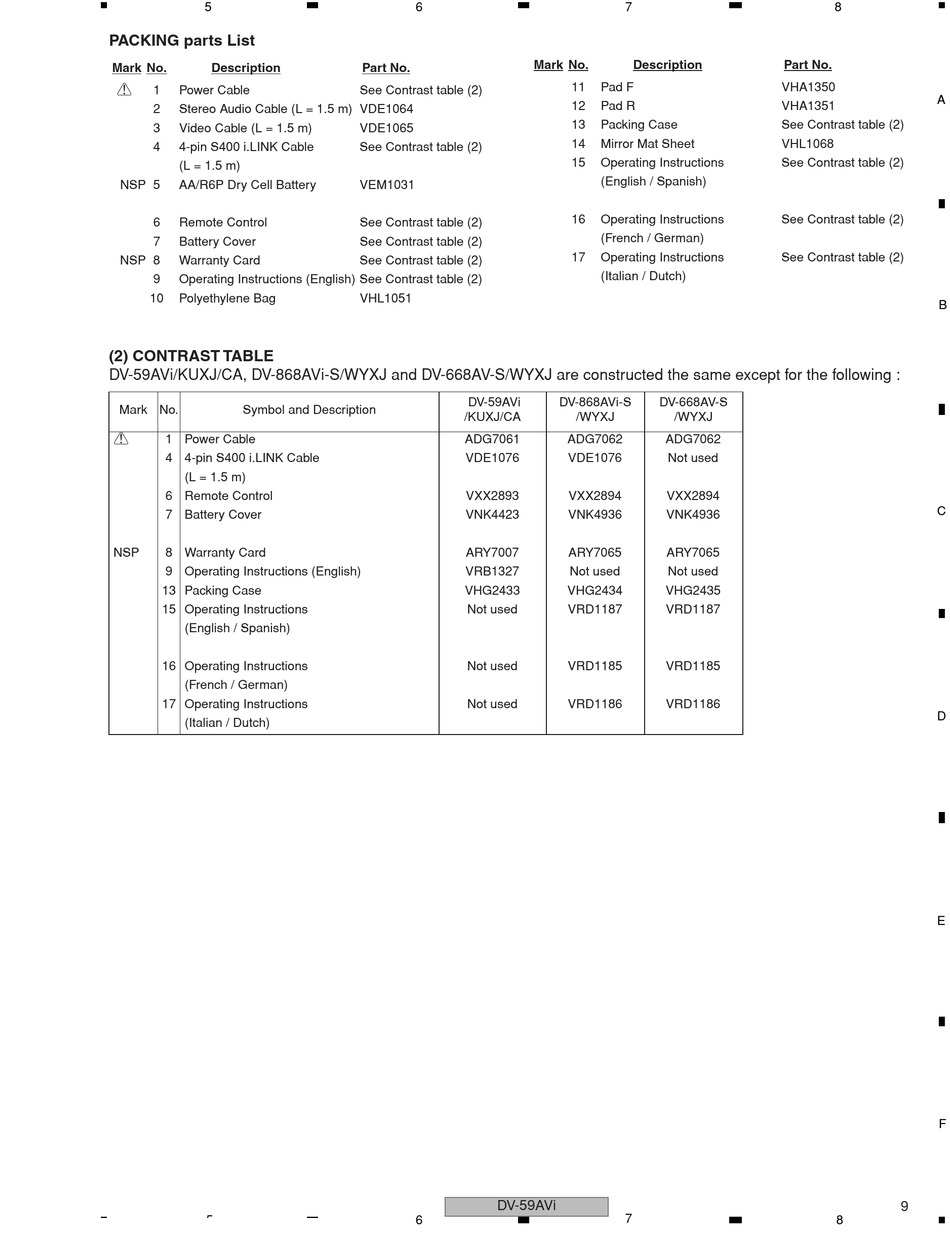

PACKING parts List
Mark No. Description
>
1

Power Cable

2 Stereo Audio Cable (L = 1.5 m) VDE1064
3 Video Cable (L = 1.5 m)
4

4-pin S400 i.LINK Cable

(L = 1.5 m)
NSP 5 AA/R6P Dry Cell Battery
6

Remote Control

7 Battery Cover
NSP 8

Warranty Card

9 Operating Instructions (English) See Contrast table (2)
10 Polyethylene Bag
(2) CONTRAST TABLE
DV-59AVi/KUXJ/CA, DV-868AVi-S/WYXJ and DV-668AV-S/WYXJ are constructed the same except for the following :
Mark No. Symbol and Description
>
1 Power Cable
4 4-pin S400 i.LINK Cable
(L = 1.5 m)
6 Remote Control
7 Battery Cover
NSP 8 Warranty Card
9 Operating Instructions (English)
13 Packing Case
15 Operating Instructions
(English / Spanish)
16 Operating Instructions
(French / German)
17 Operating Instructions
(Italian / Dutch)
5
6
Mark No.
Part No.
See Contrast table (2)
VDE1065
See Contrast table (2)
VEM1031
See Contrast table (2)
See Contrast table (2)
See Contrast table (2)
VHL1051
DV-59AVi
/KUXJ/CA
ADG7061
VDE1076
VXX2893
VNK4423
ARY7007
VRB1327
VHG2433
Not used
Not used
Not used
DV-59AVi
6
7
Description
11 Pad F
12 Pad R
13 Packing Case
14 Mirror Mat Sheet
15 Operating Instructions
(English / Spanish)
16 Operating Instructions
(French / German)
17 Operating Instructions
(Italian / Dutch)
DV-868AVi-S DV-668AV-S
/WYXJ /WYXJ
ADG7062 ADG7062
VDE1076 Not used
VXX2894 VXX2894
VNK4936 VNK4936
ARY7065 ARY7065
Not used Not used
VHG2434 VHG2435
VRD1187 VRD1187
VRD1185 VRD1185
VRD1186 VRD1186
7
8
Part No.
VHA1350
A
VHA1351
See Contrast table (2)
VHL1068
See Contrast table (2)
See Contrast table (2)
See Contrast table (2)
B
C
D
E
F
9
8
