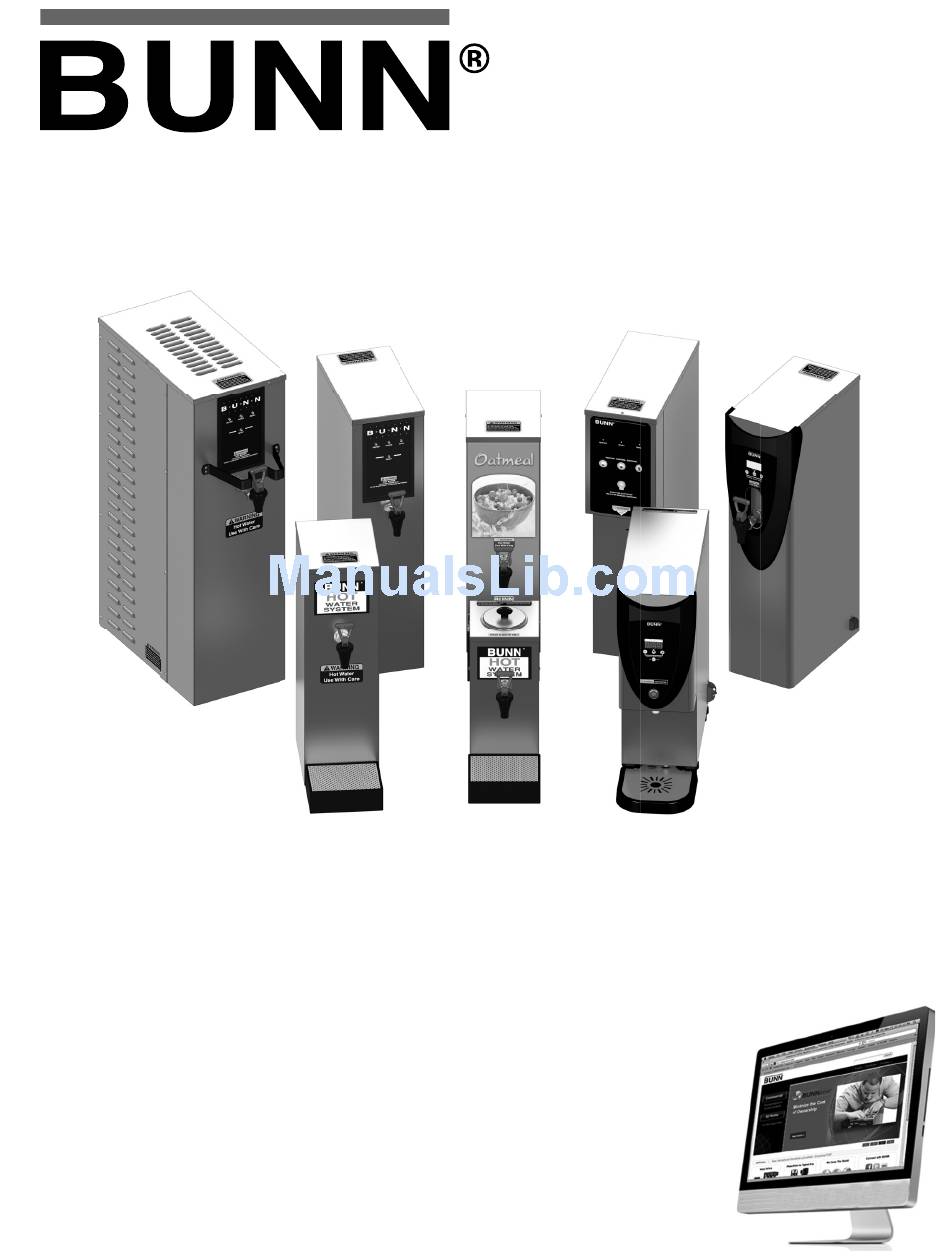

INSTALLATION & OPERATING GUIDE
To ensure you have the latest revision of the manual or to obtain the illustrated parts catalog, please visit
the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain
the latest catalog and manual updates. Contact Bunn-O-Matic Corporation at 1-800-286-6070 to obtain
a paper copy of the required Illustrated Parts Catalog mailed via U.S. Postal Service.
46819.0001B 07/15 © 2014 BUNN-O-MATIC CORPORATION
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
Hot Water
Dispensers
Supercedes
10052.0000; 10010.0000; 10267.0000
10420.0000; 10889.0000; 39338.0000
39338.0001; 44306.0000

Advertisement

Table of Contents
loading

Related Manuals for Bunn 10052.0000

Summary of Contents for Bunn 10052.0000

  • Page 1 To ensure you have the latest revision of the manual or to obtain the illustrated parts catalog, please visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and manual updates. Contact Bunn-O-Matic Corporation at 1-800-286-6070 to obtain a paper copy of the required Illustrated Parts Catalog mailed via U.S.

  • Page 2: Warranty

    AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profi ts, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

  • Page 3: Table Of Contents

    CONTENTS WARRANTY ......................2 INTRODUCTION ..................... 3 CE & NORTH AMERICA REQUIREMENTS .............. 4 USER NOTICES ...................... 5 ELECTRICAL REQUIREMENTS ................6 PLUMBING REQUIREMENTS ................. 7 INITIAL SET-UP (H5E, H5X, H5-PC, H3/5 ELEMENT, H10X) ........7 INITIAL SET-UP H5M, HW2, OHW ................. 8 OPERATING CONTROLS (H5-PC ONLY) ..............

  • Page 4: Ce & North America Requirements

    CE REQUIREMENTS • This appliance must be installed in locations where it can be overseen by trained personnel. • For proper operation, this appliance must be installed where the temperature is between 5°C to 35°C. • Appliance shall not be tilted more than 10° for safe operation. •...

  • Page 5: User Notices

    THIS APPLIANCE IS HEATED WHENEVER CONNECTED TO A POWER SOURCE To reduce the risk of electric shock, Authorized service personnel only. 00831.0000F 3/98 ©1998 BUNN-O-MATIC CORPORATION Disconnect power before servicing. do not remove or open cover. No user-serviceable parts inside.

  • Page 6: Electrical Requirements

    ELECTRICAL REQUIREMENTS WARNING - The dispenser must be disconnected from the power source until specifi ed in Initial Set-Up. Refer to Data Plate on the Brewer, and local/national electrical codes to determine circuit requirements. POWER CORD POWER CORD POWER CORD NEUTRAL WHITE WHITE...

  • Page 7: Plumbing Requirements

    ½˝ water supply line. At least 18 inches of an FDA approved fl exible beverage tubing, such as reinforced braided polyethylene or silicone, before the dispenser will facilitate movement to clean the countertop. Bunn- O-Matic does not recommend the use of a saddle valve to install the dispenser. The size and shape of the hole made in the supply line by this type of device may restrict water fl...

  • Page 8: Initial Set-Up H5M, Hw2, Ohw

    NOTE - Due to the tank capacity and heater size, this product should be used only for dispensing a few cups of hot water at a time. (Larger capacity Bunn-O- Matic hot water dispensers are available.) 46819.1 090314...

  • Page 9: Operating Controls (H5-Pc Only)

    NOTE: The dispenser should be at operating temperature before setting dispense volumes. 1. Press and hold the hidden programming button (c) located under the ® next to the BUNN logo on the front of the dispenser until the 3 LED's begin fl ashing from the left to the right. Release the button.

  • Page 10: Programming (H5E, H5X, H5-Pc, H10X)

    PROGRAMMING - H5-E, H5-PC, H5X, H10X When power is applied to the dispenser, the display located on the bottom of the main circuit board will show the software version for 5 seconds, and then it will show the model number (see chart below) it will then go to (-).
  • Page 11 PROGRAMMING - H5-E, H5-PC, H5X, H10X Continued LEVEL 2 PROGRAMMING H1 - DISPENSE TEMPERATURE LOCKOUT - PORTION CONTROL ONLY (WILL NOT DISPLAY ON OTHER MODELS) 1. To enter Level 2 Programming, press and hold the center button until H1 ap- pears on the display (approximately 6 seconds) then release button.

  • Page 12: Programming (H5 Element)

    3. Use a small screwdriver to move switch to set position. 4. Install top cover, connect dispenser to power source. Step backward Programming the dispenser: 1. Press and hold upper hidden button (bottom center of “BUNN” logo) until “P1” is displayed. Continued 46819.1 070215...
  • Page 13 PROGRAMMING - H5-ELEMENT Continued 2. The display will now show the model number. (H5H) 5 Gallon High Voltage Unit (200-240V) (H5L) 5 Gallon Low Voltage Unit (100-120V) Now scroll with the (+/-) buttons through the models listed above until the display matches the model you are working with.
  • Page 14 PROGRAMMING - H5-ELEMENT Continued LEVEL 2 PROGRAMMING H2 - F° OR C° SELECTION 1. To enter Level 2 Programming, press and hold the upper hidden button until H2 appears on the display. Release the upper hidden button. The display will show either FAH (Degrees in Fahrenheit) or CEn (Degrees in Centigrade).

  • Page 15: Programming (H3E Element)

    PROGRAMMING - H3E ELEMENT Program lockout switch: The switch must be in the “SET” position in order to access the program modes. LOCK LOCK K 1. Disconnect the dispenser from the power source. 2. Remove the 4-40 screws and the top cover. 3.
  • Page 16 PROGRAMMING - H3E ELEMENT Continued 1. Press and release the hidden button. The display will show P1. Display will now show the “SET” temperature. Press the (+) button to increase the temperature set point, or the (-) button to decrease the set point. Range: 15°C (60°F) to 96°C (205°F).
  • Page 17 PROGRAMMING - H3E ELEMENT Continued LEVEL 2 PROGRAMMING H1 - DISPENSE LOCKOUT 1. To enter Level 2 Programming, press and hold the hidden button until H1 ap- pears on the display. Release the hidden button. The display will show “noL” (no lockout) or Loc (dispense lockout).

  • Page 18: Draining The Dispenser

    CLEANING The use of a damp cloth rinsed in any mild, non-abrasive, liquid detergent is recommended for cleaning all surfaces on Bunn-O-Matic equipment. WALL MOUNTED INSTALLATION - 5 GALLON MODELS ONLY If the dispenser is wall mounted, the bottom of the dispenser should be at the same height as a counter or table top.
