Summary of Contents for Sylvania SDVD1048

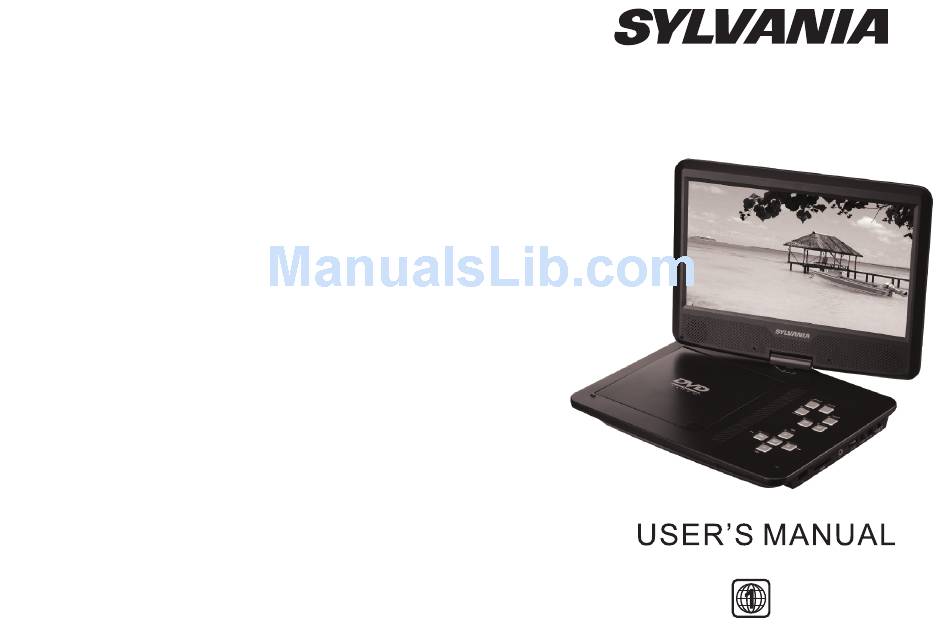

- Page 1 SDVD1048...
-
Page 2: Table Of Contents
Table Of Contents Safety Precaution Safety Precaution Package Main Features Main Unit Controls System Connection The Remote Control Warning: To reduce the risk of fire or electric shock, do not expose this Basic operation apparatus to rain or moisture. System Setup 1) Please read the instruction manual carefully and follow all the requirements of safe operation to operate the device. -
Page 3: Package
Package This device complies with Part 15 of the FCC Rules. Operation is subject to the DVD Player following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that Remote Control with battery may cause undesired operation. -
Page 4: Main Unit Controls
System Connection Main Unit Controls Powering and installation Plug one end of the AC/DC power adaptor into the DC IN 9-12V jack on the right of the machine,then plug the other end into the AC power receptacle.Please refer to the following illustration. -
Page 5: The Remote Control
The Remote Control Connecting with external Speaker The unit can be connected with external speaker.Please see the following illustration. AV OUT OFF/ON AV CABLE Not supplied VIDEO IN AUDIO IN AMPLIFIER 1. Number button 11. ZOOM(To zoom in/out the image during the playback) 2. -
Page 6: Basic Operation
Basic Operation The Use of Remote Control Please put the battery into the remote control as per below illustration. MPEG4 SVCD Playing disc of DVD, MPEG4, SVCD, VCD, CD, Mp3. In the Source Mode,you can press “ ” “ ” ,to select and “ENTER”... - Page 7 Repeat playing of favorite scene Fast forward and fast backward MPEG4 SVCD MPEG4 SVCD When playing disc of DVD,MPEG4,SVCD,VCD,CD, the machine can search forward or backward. When playing disc of DVD,MPEG4,SVCD,VCD,CD,Mp3,user can repeatedly 1. Press“ ”,the machine will search forward. Press it repeatedly ,the machine will play play a specific section.
- Page 8 Playing JPEG file in date disc Zoom in/out 1. Place a JPEG disc into the tray, the unit will start reading and play. 2. Press“MENU”to browse JPEG files. When playing disc of JPEG user can zoom in or 3. Press“ ”to select a JPEG file and press“ENTER”button to confirm.
- Page 9 SD/MMC/USB main menu Browser mode 00 00 03 43 001/008 \Ctyy\ ..TRACK01 TRACK02 TRACK03 TRACK04 TRACK05 After Enter the SD/MMC or USB,the system will show Main Menu which includes 4 Function ICONS.You can select them by “ ” and press “ENTER”...
- Page 10 When playing JPEG : Movie mode 1.To rotate the picture counter-clockwise,press “ ”; Press“ ” to rotate the picture clockwise 2. Press OSD button when viewing pictures,you can select different refresh mode as follows: 1. from top to bottom 001/006 2.
-
Page 11: System Setup
Speed: In this item, you can set the rip speed: Normal or Fast. General Setup Page Bitrate: In this item, you can set the bitrate. It has 6 choices,96 Kbps,112Kbps,128Kbps, 196Kbps,256Kbps and 320 Kbps. Create ID3:In this item, you can create ID3 when playing CD text. Device: This item indicates whether USB or SD CARD is connected with DVD player. - Page 12 Video Setup Page Preference Setup Subtitle Select your preferred language to show the Video Setup subtitles on the screen. Audio English The default is OFF Subtitle French The subtitle languages depend on the Disc Menu German TV Type NTSC information available on each disc,You can TV Type: Parental Italian...
-
Page 13: Specification
Troubleshooting Specification Compatible disc: DVD/VCD/CD/MP3/MPEG4 Signal system: PAL/NTSC Panel size: 10.1 inch PROBLEM SOLUTION Picture resolution: 1024x600 Frequency response: 20 Hz to 20 kHz Make sure the machine is connected properly. No sound or Video output: 1 Vp-p/75 Ohm, unbalanced Make sure all cables are securely inserted into distorted sound Audio output: 1.4Vrms/10kOhm... - Page 14 SDVD1048 Remote Control with battery User Manual Cigarette Lighter Adapter Earphone AC/DC Power Adapter Audio/Video Cable Travel Bag Earphone splitter...
