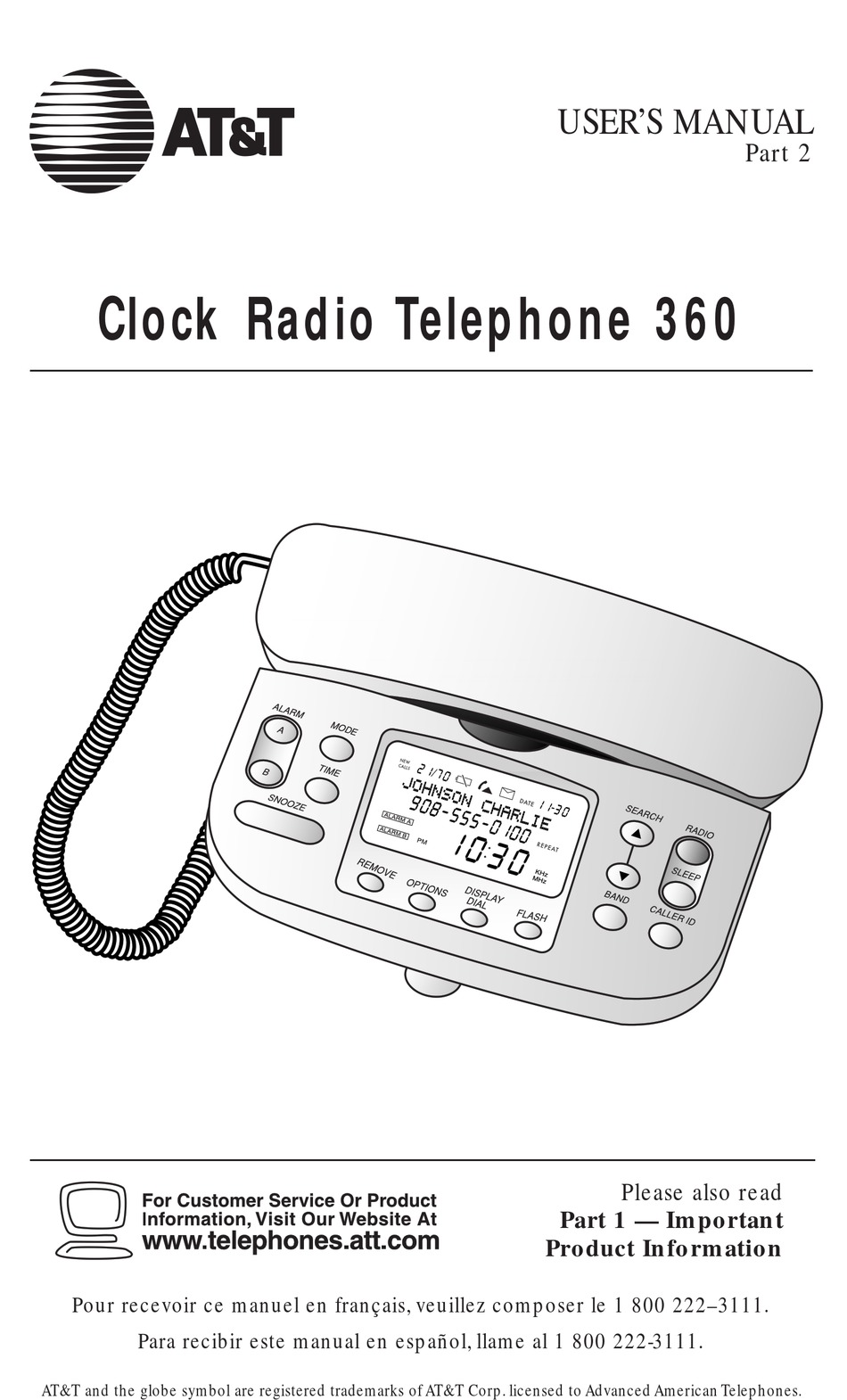

USER'S MANUAL
Part 2
Clock Radio Telephone 360
Please also read
Part 1 — Important
Product Information
Pour recevoir ce manuel en français, veuillez composer le 1 800 222–3111.
Para recibir este manual en español, llame al 1 800 222-3111.
AT&T and the globe symbol are registered trademarks of AT&T Corp. licensed to Advanced American Telephones.

Advertisement

Table of Contents
loading

Related Manuals for AT&T 360

Summary of Contents for AT&T 360

  • Page 1 USER’S MANUAL Part 2 Clock Radio Telephone 360 Please also read Part 1 — Important Product Information Pour recevoir ce manuel en français, veuillez composer le 1 800 222–3111. Para recibir este manual en español, llame al 1 800 222-3111.
  • Page 2 © 2000 Advanced American Telephones. All rights reserved. Printed in Mexico. 850003559 Issue 1AT&T 6/00...

  • Page 3: Table Of Contents

    CONTENTS INSTALLATION ...2 Display Dimmer Switch Brightness ...4 TELEPHONE OPERATION...5 Volume Control...5 Temporary Tone Dialing...5 Redial ...5 Mute ...5 Set Dial Mode ...5 New Call/Message Waiting Light...6 Flash ...6 Making and Answering Calls ...6 TELEPHONE MEMORY...7 Dialing Numbers in Telephone Memory...7 Storing Numbers in Telephone Memory...7 One Touch Dialing ...7 Storing a Pause in a Memory Number ...7...

  • Page 4: Part

    INSTALLATION Standard AC Outlet Power Cord Display Dimmer Switch Before installing, check with your service provider to ensure that you have subscribed to Caller ID with Call Waiting (combined service), and voice mail service (if you intend to use the visual message waiting feature in this phone).
  • Page 5 Connect the handset. Plug one end of the coiled handset cord into the jack labeled HANDSET on the back of the telephone. Plug the other end of the coiled cord into the handset, then hang up. Connect the power adapter. Connect the power adapter to the jack on the back of the base.

  • Page 6: Display Dimmer Switch Brightness

    INSTALLATION Select Display Language. Press N. The screen displays WHICH LANGUAGE?. Press + until the screen displays your selected language. Press N for 1.5 seconds to save the selected display language. NOTE: To change the display language at a later date, see “Setting Display Options”...

  • Page 7: Telephone Operation

    Volume Control To adjust the listening level in the handset, set the volume control on the left side of the handset. Temporary Tone Dialing If you have dial pulse (rotary) service, you can change from dial pulse to touch tone dialing during a call by pressing *.

  • Page 8: New Call/Message Waiting Light

    TELEPHONE OPERATION New Call/Message Waiting Light This light stays on when you have unreviewed call information in the call history. If you subscribe to a voice mail service, this light flashes if you have new messages waiting. Flash Use F instead of the switchhook to activate telephone company subscriber services such as Call Waiting...

  • Page 9: Telephone Memory

    This telephone can store 13 telephone numbers, each up to 32 digits long. You can dial numbers stored in memory by pressing one or two buttons. Dialing Numbers in Telephone Memory For two touch dialing, lift the handset and press m and the number button (0-9) where the memory number is stored.

  • Page 10: Caller Id Operation

    CALLER ID OPERATION When on steadily, indicates phone on this line is in use. When flashing, indicates line is ringing Indicates battery needs replacement Number of new calls/ Total number of calls Indicates displayed information has not been reviewed Remove a call from call history Indicates voice mail is waiting...

  • Page 11: About Caller Identification

    About Caller Identification This telephone is designed to store and display information about incoming calls. It must be used with Caller Identification service provided by your local telephone company; there is a fee for this service, and it may not be available in all areas.

  • Page 12: Removing All Calls From Call History

    CALLER ID OPERATION Removing All Calls from Call History Press C to enter the call history. Press and release r for 1.5 seconds when no call is displayed. The screen displays REMOVE ALL CALLS?. Press and release r for 1.5 seconds again to remove all calls. The screen displays END OF LIST.

  • Page 13: Setting Display Options

    Programming Area Codes In addition to programming your home area code (see Step 9 in INSTALLATION), you can program up to four other local area codes. These are area codes that do not require dialing a “1” before them. After programming, if you receive a call from one of these area codes, the screen displays the ten digits (three digits of area code plus seven digits of phone number).
  • Page 14 CALLER ID OPERATION Option: HICH ANGUAGE ENGLISH SPANISH FRENCH TORE HOME AREA CODE? TORE OCAL LOCL AREA CODE? ISTORY ALL CALLS UNANS. CALLS NO CALLS EPEAT ALLS COMBINED SEPARATE RDER NEW CALLS BY TIME AITING ESSAGE AITING IGHT LEAVE ON RESET Choice: Choose whether the display appears in English,...

  • Page 15: Display Screen Messages

    Display Screen Messages Screen Displays: PRIVATE NAME PRIVATE CALLER UNKNOWN CALLER UNKNOWN NAME CALLER ID OPERATION When: The other party is blocking name information. The other party is blocking telephone number information. The other party is blocking name and number information.

  • Page 16: Radio/Alarm Operation

    RADIO/ALARM OPERATION Turn radio on or off Search for next clear radio station Set separate alarms Current radio station Silence alarm for Select AM or FM about 10 minutes Set radio to automatically turn off...

  • Page 17: Turning Radio On/Off

    Turning Radio On/Off Press I to turn the radio on or off. When you turn the radio on, the screen displays the currently selected station, band, and MHz or KHz. You can access Caller ID information while the radio is on. NOTE: If you receive a call while the radio is on, the screen will display Caller ID information during the call, and for about 30 seconds after you hang up.

  • Page 18: Setting Alarm Time

    RADIO/ALARM OPERATION Setting Alarm Time You can set the alarm (ALARM A) or (ALARM B) to wake you with the radio or the buzzer. NOTE: To set the clock, see the INSTALLATION section of this manual. Press and hold d for about one second. Press and release a A —...

  • Page 19: In Case Of Difficulty

    If you have difficulty operating this phone, try the suggestions below. For Customer Service, visit our website at www.telephones.att.com or call 1 800 222–3111. Please retain your receipt as your proof of purchase. No Dial Tone • Make sure all plugs are connected properly. Inspect the line cord connections at the modular jack and at the telephone.
