Service
Manual
SECTION
1. TECHNICAL SPECIFICATIONS ........................................................................... 1
2. SERVICE INFORMATION AND PROCEDURE ................................................... 4
3. WIRING DIAGRAM ............................................................................................... 9
4. BLOCK DIAGRAM .............................................................................................. 11
5. SCHEMATIC DIAGRAM ..................................................................................... 13
6. PARTS LOCATION ............................................................................................. 15
7. IC DATA .............................................................................................................. 22
8. EXPLODED VIEW AND PARTS LIST ................................................................ 25
9. ELECTRICAL PARTS LIST ................................................................................ 29
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
STANDBY
STANDBY
TUNER
MENU
ENTER
TABLE OF CONTENTS

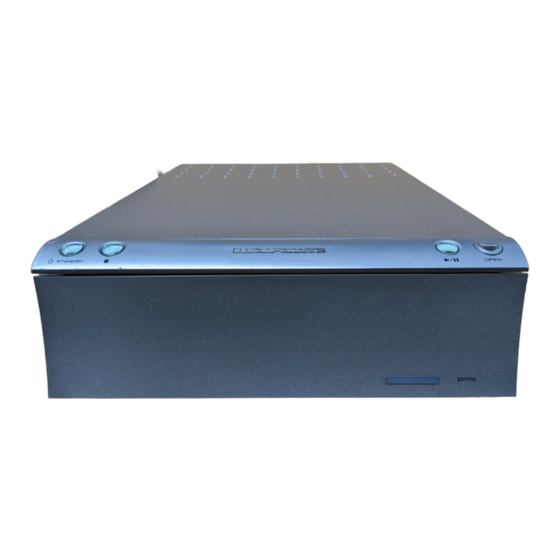

DV110
DVD / Tuner
OPEN
DV110
OPEN
/MODE
MULTI JOG
PUSH ENTER
/MEMO
PAGE
DV110/
N1S
R
17AW855010 MIT
First Issue 2003.3
Advertisement
Table of Contents
Related Manuals for Marantz DV4003
Summary of Contents for Marantz DV4003
-
Page 1: Table Of Contents
Service DV110/ Manual DVD / Tuner STANDBY OPEN DV110 STANDBY OPEN TUNER MENU /MODE ENTER MULTI JOG PUSH ENTER /MEMO TABLE OF CONTENTS SECTION PAGE 1. TECHNICAL SPECIFICATIONS ................1 2. SERVICE INFORMATION AND PROCEDURE ........... 4 3. WIRING DIAGRAM ....................9 4. - Page 2 MARANTZ Parts for your equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.
-
Page 3: Technical Specifications
1. TECHNICAL SPECIFICATIONS TUNER SECTION FM TUNER SECTION Tuning range ................................ 87.5 to 108.0 MHz Usable sensitivity (3% distortion) ............................9.5 dBµ S/N ratio ............................... Mono: 65 dB / Stereo: 60 dB T.H.D. 1kHz ........................Mono: 0.5% or less / Stereo: 1.0% or less Output voltage ................................ - Page 4 SCART CONNECTOR 1 3 5 7 9 11 13 15 17 19 2 4 6 8 10 12 14 16 18 20 Pin No. TV (OUT) Pin No. AUX (IN) Pin 1 Audio R out : 2Vrms Pin 1 Audio R out : 2Vrms Pin 2 Audio R in : 2Vrms Pin 2...
- Page 5 NOT PLAYABLE DISCS ABOUT DISCS • DVD discs whose region number is not "2" nor "ALL". • DVD-RW • DVD-ROM PLAYABLE DISCS • DVD-RAM • DVD-Audio • DVD+RW • CD-ROM • CDV DVD-R • CD-G Finalized DVD disc recorded in the DVD •...
-
Page 6: Service Information And Procedure
2. SERVICE INFORMATION AND PROCEDURE SERVICE HINTS SERVICE TOOLS Disc for firmware update *DV110xxxx Audio signals disc 4822 397 30184 Disc without errors (SBC444)+ Disc with DO errors, black spots and fingerprints (SBC444A) 4822 397 30245 Disc (65 min 1kHz) without no pause 4822 397 30155 Max. - Page 7 WARNINGS AND LASER SAFETY INSTRUCTIONS WARNING WAARSCHUWING All ICs and many other semi-conductors are Alle IC's en vele andere halfgeleiders zijn susceptible to electrostatic discharges (ESD). gevoelig voor elektrostatische ontladingen Careless handling during repair can reduce (ESD). life drastically. Onzorgvuldig behandelen tijdens reparatie When repairing, make sure that you are kan de levensduur drastisch doen connected with the same potential as the...
- Page 8 LASER SAFETY This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury. LASER DEVICE UNIT Type: Semiconductor laser GaAlAs Wave length: 650 nm (DVD) 780 nm (VCD/CD) Output Power: 7 mW (DVD) 10 mW (VCD/CD)
- Page 9 EMARGENCY DISC EJECT Push Push Remove those screws 1. Remove the top cover of the player. 2. Remove two screws shown in the picture above. 3. Remove the top cover of the drive unit with pressing the latches. 4. Now you can remove the disc. RESETTING THE UNIT Reset all the settings EXCEPT the parental lock password 1.
- Page 10 FIRMWARE VERSION CHECK Firmware version check for the main drive unit 1. First, connct a TV monitor to the player. 2. Press the OPEN/CLOSE button to open the tray. 3. Press the SETUP button on the remote controller. 4. Input the code “8800” with the numeric buttons on the remote controller. 5.
-
Page 11: Wiring Diagram
3. WIRING DIAGRAM... -
Page 12: Block Diagram
4. BLOCK DIAGRAM... -
Page 13: Schematic Diagram
5. SCHEMATIC DIAGRAM... -
Page 14: Parts Location
6. PARTS LOCATION MAIN IC104 Q105 D105 Q111 Q114 Q122 D104 Q110 Q105 Q103 Q104 IC101 D108 D107 Q119 D114 Q108 Q106 D103 Q107 Q109 Q102 Q101... - Page 15 MAIN D112 Q124 D113 D120 IC104 Q115 Q117 Q116 D111 D101 Q112 Q113 IC106 D106 D109 D102 Q123 IC107 Q121 Q118 IC101 D110 IC105...
- Page 16 FRONT D803 D802 Z801 D801 FRONT Q803 Q802 IC801 Q801 Q804...
- Page 17 S-VIDEO S-VIDEO SCART SCART...
-
Page 18: Ic Data
7. IC DATA IC104:MM1568 Block Diagram Vcc1 Vcc2 bias 150kΩ COUT 75Ω Driver 6.75MHz MUTE1 GND2 sync tip clamp VOUT 75Ω Driver 6.75MHz YC MIX VSAG sync tip clamp GND2 6.75MHz BIAS YOUT 75Ω bias Driver GND1 YSAG GND2 GND1 CYOUT 75Ω... - Page 19 IC801:M66005FP IC101:CXP84632 Pin Assignment Pin Assignment PF3/SDA1 PI4/INT4 RDSClk PF4/PWM0 PI3/INT3 PF5/PWM1 PI2/INT2 EssCs PF6/TxD PI1/INT1 PwrDown PF7/RxD PI0/INT0 PE5/TO PwrMute FanCtrl PE3/NMI DvdRst PE2/RMC RemoconIn PE1/EC1 PE0/EC0 PB7/SO1 TunerDvdCtrl EssDataOut PB6/SI1 ScartCtrl EssDataIn PB5/SCK1 TunerOnOff EssClock PwrSw PB4/SO0 StByLED PB3/SI0 PwrLED PB2/SCK0...
-
Page 20: Exploded View And Parts List
8. EXPLODED VIEW AND PARTS LIST D x4 LOADER ASSY (MECHA LOADER) (MECHA TRAVERSE) (DVD PCB MODULE) POWER SUPPLY(SMPS) PCB ASSY A x2 E x2 B x2 C x13 A x4 I x4 15 x2 E x2 K x7 K x2 TUNER ASSY F x2 22 x4... - Page 21 +#2PS 3X8Y B020030081P10 PLATE PBS2 0.2T A4 / EARTH-C 4470210266000 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
-
Page 22: Electrical Parts List
2) On the occasion, be confirmed the common parts on CP106 CN.WAFER 2.0MM 53014-0410 4P L101530140410 the parts list. 3) Refer to “Common Parts List” for the other common NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. parts (RI05, DD4, DK4). 010728MIT... - Page 23 C20006806M160 R125 NN05680610 R,CHIP THICK 68-J,1/16W-1608REEL C20006806M160 R126 NN05750610 R,CHIP THICK 75-J,1/16W-1608REEL C20007506M160 R127 NN05000610 R,CHIP THICK 0-J,1/16W-1608REEL C20000006M160 R136 NN05104610 R,CHIP THICK 100k-J,1/16W-1608REEL C20001046M160 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 24 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160 C813 DK96103300 C,CERAMIC CHIP HIK 0.01µF-K/50V-1608REEL D011103777160 C814 DK96103300 C,CERAMIC CHIP HIK 0.01µF-K/50V-1608REEL D011103777160 CP801 CN.FPC 1.0MM SCB 2119-00 19P ST L130211900010 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 25 C,CERAMIC HIK AXIAL 0.1µF-Z/50V-52RE D005104597530 C170 C,CERAMIC HIK AXIAL 0.1µF-Z/50V-52RE D005104597530 C208 DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160 CP205 CN.WAFER 2.0MM 53015-0910 9P ANGLE L101530150910 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 26 R,CHIP THICK 390-J,1/16W-1608REEL C20003916M160 R209 *NN000490R R,CHIP THICK 91-J,1/16W-1608REEL C20009106M160 TP201 *LC107290R *LC107290R COIL,CHOKE COIL TRANS MATCHING D300010250000 POWER SUPPLY(SMPS) PCB *FS001020R *FS001020R FUSE T2AL/250V G659202251010 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
