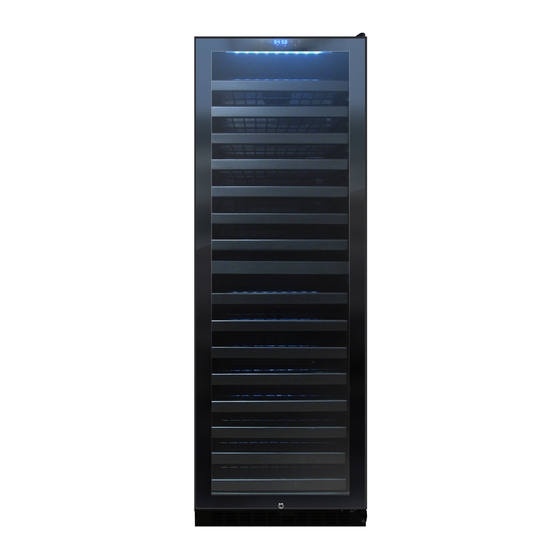

A P R O U D H E R I T A G E O F E X P E R I E N C E & Q U A L I T Y D u a l - Z o n e W i n e C o o l e r V T - 1 4 0 T S B W ( a p p r o x 1 4 2 b o t t l e s ) O W N E R ’...
Page 3
Y o u r W i n e C e l l a r This unit can be used for storage and/or service. The unit has a glass door and soft interior light that you can use to display your wine. S e r v i n g W i n e s Storing wines at the proper temperature is important.
Page 4
Upon receipt and inspection of unit, the supply cord must be replaced if it is damaged. Contact our customer service at 1-800-777-8466 or info@vinotemp.com. Let the unit rest UNPLUGGED for 24 hours once you have it placed in your home.
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..........6 ELECTRICAL CONNECTION ............7 PARTS AND SPECIFICATIONS ............8 INSTALLATION ................9 OPERATING YOUR WINE COOLER ..........9 CARE AND MAINTENANCE ............12 TROUBLESHOOTING ..............13 TERMS OF SALE AND WARRANTY ..........14 SERVICE &...
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock or injury when using your appliance, follow these basic precautions: • Do not operate this or any other appliance with a damaged cord. • Do not operate if housing is removed or damaged. •...
ELECTRICAL CONNECTION Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, frayed or shows cracks or abrasions across its length, have it replaced at an authorized service center. For your protection, this unit is equipped with a 3-conductor cord set that has a molded 3-prong grounding-type plug, and should be used in combination with a properly connected grounding-type outlet.
PARTS AND SPECIFICATIONS Model No. VT-140TSBW Voltage AC 115V Frequency 60 Hz Ambient Temperature Range 60°- 90°F Control Temperature Range 40°- 72°F Refrigerant R134a/3.88oz Power Consumption 1.9 kWh/24h Input Power 160W Volume 428L Net Weight 278.5 lbs Gross Weight 304.5 lbs 23.625"...
INSTALLATION • Remove all packing material before using your wine cooler. • IMPORTANT: Before connecting the unit to a power source, let it stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
Page 10
TEMPERATURE ZONES The wine cooler has two temperature zones with a temperature range of 40°-72°F. The recommended temperature setting for each zone is: • Lower Zone between 55°-72°F (Ideal for red and white wines) • Upper Zone between 40°-55°F (Ideal for sparkling and white wines) NOTE: The temperature set for the Lower Zone must always be the same or higher than the temperature set for the Upper Zone.
Page 11
STORING WINE You can place 70 standard bottles in the upper zone with 10 bottles on each shelf and 72 standard bottles in the lower zone with 10 bottles on each full size shelf and 6 bottles on each half-size shelf. Approximate wine cooler capacity is 142 bottles.
CARE AND MAINTENANCE LEANING YOUR WINE COOLER MPORTANT: Always unplug the unit before cleaning or performing maintenance. Never use harsh cleansers or scouring pads to clean any part of the unit. • Turn off the power, unplug the appliance, and remove all items including shelves. •...
PROBLEMS WITH YOUR WINE COOLER ost common problems can be solved easily, saving you the cost of a possible service call. Try the following suggestions to see if you can solve the problem before contacting Vinotemp at info@vinotemp.com. TROUBLESHOOTING PROBLEM...
Note: Unfinished wood is subject to warping; all wood surfaces must be sealed before placing cellar into service. Improper placement of the unit will void the warranty. By Vinotemp in writing, any third party repair facility must be pre-approved before providing parts free of charge.
Page 15
1 7 6 2 1 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1 i n f o @ v i n o t e m p .
Rancho Dominguez, CA 90221 www.vinotemp.com Vinotemp is a registered trademark of Vinotemp International. All products, features, and services are subject to change without notice. We cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes.
