- Page 3 User Manual for your Baumatic BMIS3817 17 Litre microwave oven NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance.
-
Page 4: Table Of Contents
Contents Environmental note Important safety information 5 – 9 Specifications 10 – 14 Product specifications Electrical details Description of the appliance Control panel The turntable LED display 13 - 14 Using your microwave 14 – 23 Setting the clock Before first use 14 - 15 Cooking food 15 - 16... -
Page 5: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 6: Important Safety Information
Installation o IMPORTANT: Only built installation sanctioned by Baumatic and outlined in this manual should be followed. A separate building in kit will be supplied with the microwave, to allow you to complete a built in installation. - Page 7 If you notice that the door seal, door surfaces, power cord and plug are damaged. You s hould stop using the appliance, disconnect it from the mains supply and contact the Baumatic Customer Care Department. o Only genuine Baumatic spare parts should be fitted to your appliance.
- Page 8 Warning and safety instructions o This appliance complies with all current European safety legislation. Baumatic do wish to emphasise that this complian does not remove the fact that the appliance surfaces will become hot during use and retain heat after operation.
- Page 9 This appliance must be correctly in stalled by a uitably qualified person, strictly in accordance ith the manufacturer’s instructions. o Baumatic declines any respon sibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
- Page 10 Declaration of conformity o CE: Appliance conforming European directives 89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions and “RoHS” directive 2002/95/CE.* o The manufacturer declares that the oven is built using certified materials requires appliance installed accordance with the standards currently in force. This appliance must be used by a trained person for domestic purposes only.
-
Page 11: Specifications
pecifi cations Product specifications 5 power levels 8 functions: Pizza Meat Vegetable Pasta Potato Fish Beverage Popcorn o Quick start o LED full programmer with function display Pushbutton control operation Safety lock o Stainless steel exterior and cavity o Mark resistant coating o Capacity: 17 litres o Microwave out... -
Page 12: Electrical Details
Electrical details Rated Voltage: 230 Vac 50 Hz Supply Connection: 13 A (do uble pole switched fused outlet with 3mm contact gap) ax Rated Inputs: 1.25 kW ains Supply Lead: 3 x 0.75 mm² For future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invo ice. -
Page 13: Description Of The Appliance

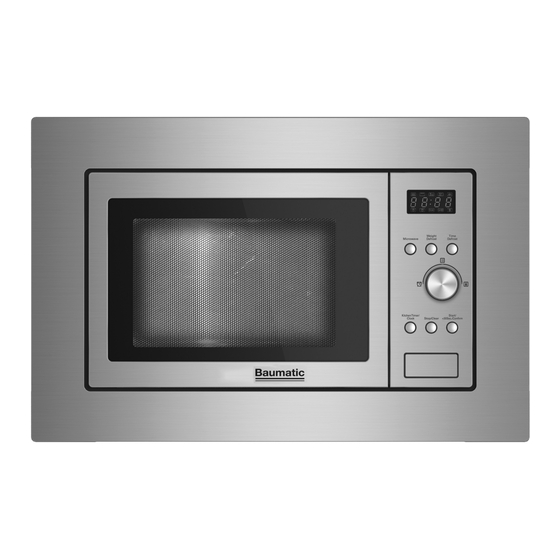

Description of the appliance Control panel Viewing window Turntable shaft Door Turntable ring assembly Safety interlock system Glass tray Control panel LED display Defrost by time button Adjustment dial Start/+30Sec./Confirm button Door button Microwave button Defrost by weight button Kitchen timer/Clock button Stop/Clear button... -
Page 14: The Turntable
Turntable ring assembly o If the glass tray or turntable ring assembly crack s or breaks, it must be replaced immediately. Genuine Baumatic parts can be obtained from the Baumatic Spares Department. LED display o The LED display will show the time of day, or if the microwave is in u se, it will show the cooking time. -
Page 15: Using Your Microwave
Indicates that the ti me of day is shown on the display. ndicates that the safety lock is engaged. ndicates that the auto menu function has been selected. ndicates that grams are shown on the LED display. Indicates that the ti me of kitchen timer is shown on the display. -
Page 16: Cooking Food
o The oven cavity and outside of the appliance should be cleaned with warm soapy water, usin g either a sponge or soft cloth. No abrasive cleaners should be used. The appliance should be thoroughly dried afterwards. Cooking food o Once the clock has been set, your microwave is then ready to use. -
Page 17: Microwave Power Level Chart
o IMPORTANT: The inside of the microwave and the food that you have been cooking may be extremely hot. So care should be taken when removing items from the microwave. We would recommend that you use an oven glove. o After th e food has been removed from the microwave, you should make sure that the door is closed. -
Page 18: Cancelling A Cooking Cycle
Cancelling a cooking cycle o If you wish to cancel a cooking cycle when it is in progress, you should press the Stop/Clear button (I). o The m icrowave will stop heating immediately, give an audible signal and the LED display (A) will return to showing the time of day. -
Page 19: Defrost By Weight
Defrost by weight o Press the Weight defrost button (G) and the LED display (A) will show “dEF1”. o Turn the adjustment dial (C) t o select the weight of the food that you want to defrost. The letter “g” will appear on the LED display (A) to indicate grams. -
Page 20: Kitchen Timer
The kitchen timer The kitchen timer will countdown a set time and a buzzer will sound when the required time is reached. The kitchen timer is to be used separately from the microwave functions and cannot be used at the same time. -
Page 21: Auto Menu Function
Auto menu function o Your microwave has menus pre-programmed into it, where it will cook particular types of food on pre-set power levels and for pre- set periods of time. o Turn the adjustment dial (C) clockwise to access the auto menu function, the LED display (A) will show “A1”. -
Page 22: Safety Lock
Safety lock o When the microwave is not heating, it is possible to switch on the safety lock. o Press and hold down the Stop/Clear button (I) for 3 seconds. o The microwave will emit a long audible signal and the LED display (A) will display a padlock symbol. -
Page 23: Materials You Can Use In A Microwave Oven
o You should not use ceramic or porcelain crockery, or porous earthenware inside of your microwave. Thes e dishes could absorb moisture from the food whilst it is cooking, which could cause pressure to build up and shatter the dish. o If you are heating certain foods and any liquid, moisture will evaporate and condensation may occur. -
Page 24: Materials Not To Be Placed In A Microwave Oven
Plastic Microwave-safe only. Follow manufacturer’s instructions. It should be labelled as “microwave safe”. Some plastic containers soften as the food inside gets hot. “Boil ing bags” and tightly closed plastic bags should be slit, pierced or vented, as described by the package. -
Page 25: The Appliance Interior
Any damage that is caused to the appliance by a cleaning product will not be fixed by Baumatic free of charge, even if the appliance is within the guarantee period. -
Page 26: Installation
Install tion The installation must be carried out by a suitably qualified person, in accordance with the current version of the following. o UK Regulations and Safety Standards or their European Norm Replacements. o Building Regulations (issued by the Department of the Environment). - Page 27 The wiring in the mains lead is colo ured as follows: Brown Live Blue Neutral Green and yellow Earth o As the colours of the wires in the appliance’s mains lead may not correspond with the coloured markings identifying the terminals in your spur box, please proceed as follows: he brown wire must be connected to the terminal marked “L”...
-
Page 28: Aperture And Ventilation Requirements
pertur e and ventilation requirements (45) (45) o The diagram above shows aperture ventilation requirements that you require to build the appliance into a housing unit. o Ensure that the rear panel of the furniture housing unit has been removed. o This oven may be installed without any additional ventilation cut outs being made in the housing unit. -
Page 29: Built Under Installation Requirements
Installation requirements IMPORTANT: NO OTHER METHODS OF BUILDING UNDER THE MICROWAVE ARE SANCTIONED BY BAUMATIC. o The rear wall of the housing unit MUST be removed to allow there to be the correct amount of ventilation. o The minimum installation height is 850 mm to allow sufficient ventilation. -
Page 30: Supplied Installation Components
Supplied installation components ADJUST SCREW A SCREW B TRIM-KIT PLASTIC COVER Electrical connection The oven is fitted with a plug and must be only connected to a properly installed earthed socket. In accordance with the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a qualified electrician. -
Page 31: Installation
Install the Oven ADJUST SCREW A UPPER AIR TUNNEL ADJUST HEIGHT ADJUST SCREW A TRIM KIT TRIM-KIT 1. Fix ADJSUT SCREW A on the UPPER AIR TUNNEL of the oven, and then install the oven into the cabinet. Adjust the height of ADJUST SCREW A to keep 1mm gap between the ... -
Page 32: Troubleshooting
Troubleshooting o The microwave will not switch on. * Check that the appliance has been connected to the mains supply correctly. * Check that the fuse in the moulded plug has not blown. * Check that the fuses in your fuse box have not blown. * If fuses blow on a regular basis, then we would recommend that you consult with a qualified electrician. - Page 33 Baumatic Customer Care Department. o The interior light bulb is not working. * Call the Baumatic Customer Care Department. The interior light bulb can only be replaced by a trained service technician. o My food is not cooking properly * Check that the power level and cooking time that you have set, is appropriate for the food that you are cooking.
- Page 34 Or any installation other than the one specified by Baumatic has been completed. Please refer to the conditions of guarantee that appear on the warranty...
-
Page 35: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode. - Page 36 7. Read and follow the specific: " " P RECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" . 8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. 9.
- Page 37 17. Do not store or use this appliance outdoors. 18. Do not use this oven near water, in a wet basement or near a swimming pool. 19. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use.
- Page 38 27. Accessible parts may become hot during use. Young children should be kept away. 28.Steam cleaner is not to be used. 29.During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. 30.Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.) 31.WARNING: The appliance and its accessible parts...
-
Page 39: Contact Details
