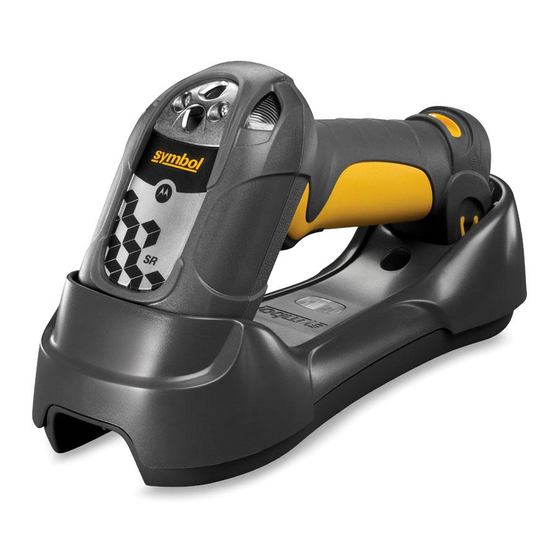

Motorola SYMBOL DS3578 User Manual

Motorola barcode reader user manual.


SYMBOL DS3578
Quick Start Guide
See Product Reference Guide for more information
1
Or use coin
NOTE: Cables may vary depending on configuration. When using an external power supply, place the
ferrite core on the power cable, insert the power supply cable into the cradle, then insert the
host cable. Connect AC power last.
Cable Connection at Cradle
Ferrite Core
Power
Host
Please refer to the Symbol DS3578 Product Reference Guide Troubleshooting section for further information.
Scanner not working
No power to scanner
End cap not secured correctly
Check battery
Turn end cap to secure
Scanner decoding bar code, but data not transmitting to host
Scanner not paired to host-connected cradle
Cradle not programmed for correct host interface
Pair the scanner to the cradle (using the
PAIR bar code on the cradle)
If data is still not transmitting to host, it may be necessary to recycle power on the cradle.
Set Defaults
Note: The scanner connection to the cradle
is dissolved when Set Defaults is scanned.
SET DEFAULTS
Unpairing/Disconnection
UNPAIR/DISCONNECT
USB Host Types
HID KEYBOARD EMULATION
IBM HAND-HELD USB
RS-232 Host Types
STANDARD RS-232
ICL RS-232
1
2
BATTERY INSERTION/REMOVAL
2
Interface cable is loose
Check scanner host parameters or
Check for loose cable
edit options
connections
SYMBOL DS3578 PROGRAMMING BAR CODES
IBM 46XX Host Types
PORT 5B
PORT 9B
Keyboard Wedge Host Types
IBM PC/AT and IBM PC COMPATIBLE
Carriage Return/Line Feed
SCAN OPTIONS
<DATA><SUFFIX>
ENTER
3
2
4
1
Tether Plate
2
LED Indicators
3
Scan Window
4
Scan Trigger
3
HOST INTERFACES
RS-232
USB
TROUBLESHOOTING
Scanner not decoding bar code
Scanner not programmed
for bar code type
Ensure scanner is programmed
to read type of bar code being
scanned
Scanned data incorrectly displayed on host
Paired cradle host communication parameters do not match the host's parameters
Check cradle host parameters or edit options
NIXDORF RS-232 MODE B
FUJITSU RS-232
Cradle Insertion
Caution: Symbol DS3478 cordless scanners are incompatible with
Symbol STB3508/3578 cradles. Symbol DS3578 cordless scanners are
incompatible with Symbol STB3408/3478 cradles.
4
Keyboard Wedge
IBM 46XX
Bar code unreadable
Ensure bar code is not defaced;
try scanning test bar code of same
bar code type
Radio Communications Host Types
CRADLE HOST
SERIAL PORT PROFILE (SLAVE)
BLUETOOTH KEYBOARD EMULATION (HID SLAVE)
SERIAL PORT PROFILE (MASTER)
NIXDORF RS-232 MODE A
OPOS/JPOS
Or use coin
