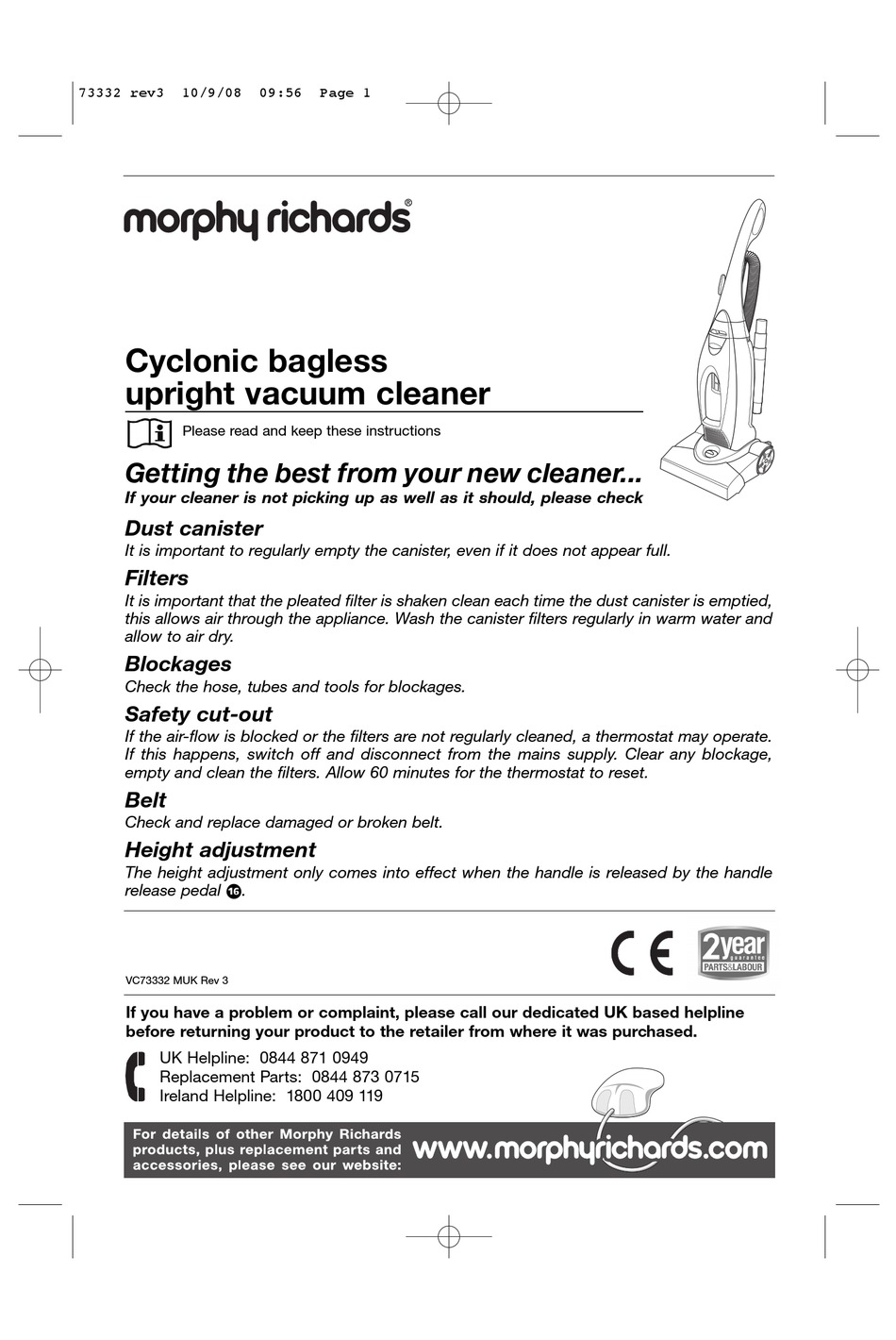

73332 rev3
10/9/08
Cyclonic bagless
upright vacuum cleaner
Please read and keep these instructions
Getting the best from your new cleaner...
If your cleaner is not picking up as well as it should, please check
Dust canister
It is important to regularly empty the canister, even if it does not appear full.
Filters
It is important that the pleated filter is shaken clean each time the dust canister is emptied,
this allows air through the appliance. Wash the canister filters regularly in warm water and
allow to air dry.
Blockages
Check the hose, tubes and tools for blockages.
Safety cut-out
If the air-flow is blocked or the filters are not regularly cleaned, a thermostat may operate.
If this happens, switch off and disconnect from the mains supply. Clear any blockage,
empty and clean the filters. Allow 60 minutes for the thermostat to reset.
Belt
Check and replace damaged or broken belt.
Height adjustment
The height adjustment only comes into effect when the handle is released by the handle
release pedal
.
È
VC73332 MUK Rev 3
If you have a problem or complaint, please call our dedicated UK based helpline
before returning your product to the retailer from where it was purchased.
UK Helpline: 0844 871 0949
Replacement Parts: 0844 873 0715
Ireland Helpline: 1800 409 119
09:56
Page 1
Advertisement
Table of Contents
Related Manuals for Morphy Richards 73332
Summary of Contents for Morphy Richards 73332
-
Page 1: Height Adjustment
73332 rev3 10/9/08 09:56 Cyclonic bagless upright vacuum cleaner Please read and keep these instructions Getting the best from your new cleaner... If your cleaner is not picking up as well as it should, please check Dust canister It is important to regularly empty the canister, even if it does not appear full. -
Page 2: Important Safety Instructions
Never touch the plug or cable with wet hands. • Unprofessional repairs can be dangerous for users. • Use only Morphy Richards spare parts and accessories. • The appliance must never be left running unsupervised. • This appliance is intended for domestic use only. - Page 3 73332 rev3 10/9/08 09:56 ‡ · ⁄ „ ¤ ‹ Â › fi fl FEATURES ⁄ Eco Switch (certain models only) ¤ Front cover release ‹ Removable front cover › Exhaust filter grille fi Carpet height adjustment knob fl Floor nozzle with powered brush ‡...
-
Page 4: Operating The Appliance
73332 rev3 10/9/08 09:56 OPERATING THE APPLIANCE Assembly WARNING: Do not plug in the cleaner until it is assembled. Carefully unpack all of the components. Lift the cleaner body to the upright position. Remove the two screws that are already attached to the body. - Page 5 73332 rev3 10/9/08 09:56 Using the attachments Follow steps 1-4 but set the carpet height adjustment knob to the TOOLS setting. Remove the hose connector Í from the rear of the cleaner. Lift the hose · from the top handle hook.
-
Page 6: Safety Cut-Out
(usually because the brush has been stalled). A spare belt is supplied. Replacement belts can also be obtained from Morphy Richards by calling the helpline number at the base of the page. Accessing the floor nozzle Disconnect the cleaner from the mains supply. - Page 7 73332 rev3 10/9/08 09:56 Removing rotating brush & belt Lift the metal belt guard ¯ out of the floor nozzle and put it safely to one side L. Slide the belt past the end of the motor drive shaft ˘. If the belt has broken, remove all pieces and clean the drive shaft.
- Page 8 Morphy Richards products are intended for household use only. Morphy Richards has a policy of continuous improvement in product quality and design. The company therefore reserves the right to change the specification of it’s models at any time.
