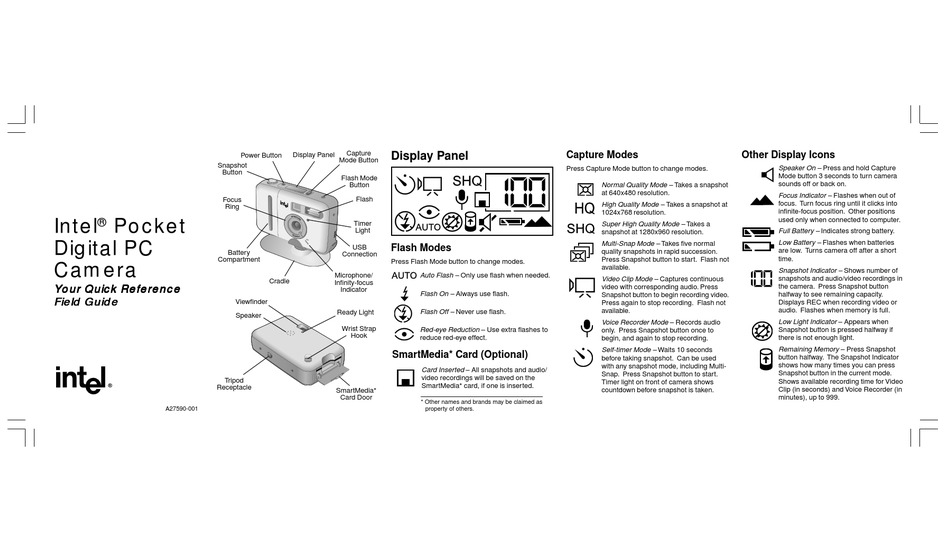

Intel Pocket Digital PC Camera Quick Reference Field Manual

Snapshot
Button
Focus
Ring
®
Intel Pocket
Digital PC
Battery
Compartment
Camera
Y Y Y Y Y our Quick Reference our Quick Reference our Quick Reference our Quick Reference our Quick Reference
Field Guide Field Guide Field Guide Field Guide Field Guide
Tripod
Receptacle
A27590-001
Capture Display Panel
Power Button Display Panel
Mode Button
Flash Mode
Button
Flash
Timer
Light
Flash Modes
USB
Connection
Press Flash Mode button to change modes.
Microphone/
Cradle
Infinity-focus
Indicator
Viewfinder
Ready Light
Speaker
Wrist Strap
Hook
SmartMedia* Card (Optional)
SmartMedia*
Card Door
Capture Modes
Press Capture Mode button to change modes.
Auto Flash – Only use flash when needed.
Flash On – Always use flash.
Flash Off – Never use flash.
Red-eye Reduction – Use extra flashes to
reduce red-eye effect.
Card Inserted – All snapshots and audio/
video recordings will be saved on the
SmartMedia* card, if one is inserted.
* Other names and brands may be claimed as
property of others.
Other Display Icons
Speaker On – Press and hold Capture
Mode button 3 seconds to turn camera
sounds off or back on.
Normal Quality Mode – Takes a snapshot
at 640x480 resolution.
Focus Indicator – Flashes when out of
focus. Turn focus ring until it clicks into
High Quality Mode – Takes a snapshot at
infinite-focus position. Other positions
1024x768 resolution.
used only when connected to computer.
Super High Quality Mode – Takes a
snapshot at 1280x960 resolution. Full Battery – Indicates strong battery.
Low Battery – Flashes when batteries
Multi-Snap Mode – Takes five normal
are low. Turns camera off after a short
quality snapshots in rapid succession.
time.
Press Snapshot button to start. Flash not
available.
Snapshot Indicator – Shows number of
snapshots and audio/video recordings in
Video Clip Mode – Captures continuous
the camera. Press Snapshot button
video with corresponding audio. Press
halfway to see remaining capacity.
Snapshot button to begin recording video.
Displays REC when recording video or
Press again to stop recording. Flash not
audio. Flashes when memory is full.
available.
Voice Recorder Mode – Records audio Low Light Indicator – Appears when
Snapshot button is pressed halfway if
only. Press Snapshot button once to
there is not enough light.
begin, and again to stop recording.
Remaining Memory – Press Snapshot
Self-timer Mode – Waits 10 seconds
before taking snapshot. Can be used button halfway. The Snapshot Indicator
with any snapshot mode, including Multi- shows how many times you can press
Snap. Press Snapshot button to start. Snapshot button in the current mode.
Timer light on front of camera shows Shows available recording time for Video
countdown before snapshot is taken. Clip (in seconds) and Voice Recorder (in
minutes), up to 999.
