Figure 3-13 Top Cover Alignment Mark; Figure 3-14. Replacing The Top Cover On A Pedestal-Mounted Server - HP 9000 rp3410 User's & Service Manual

Installing the System
Installing Additional Components

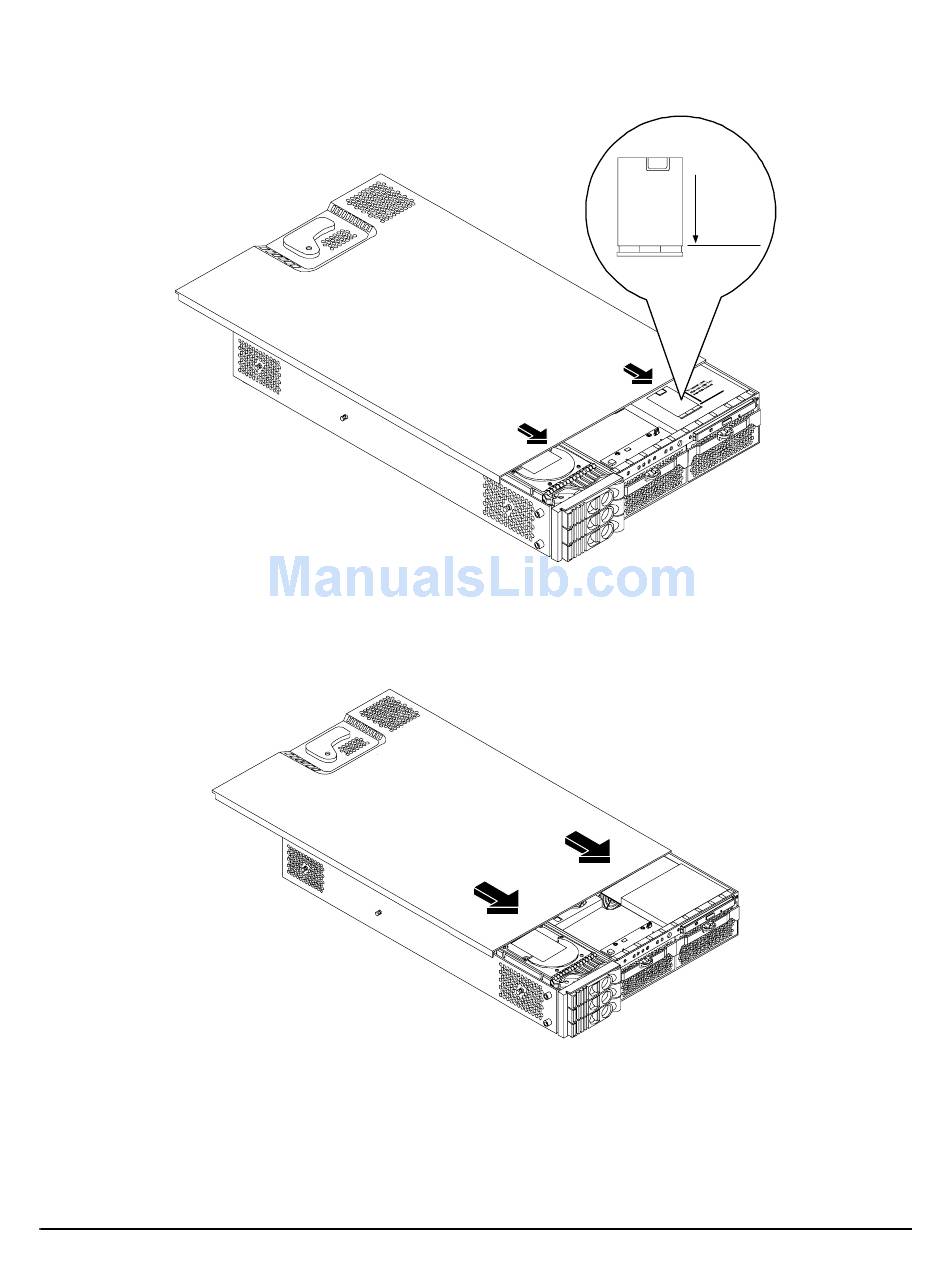

Figure 3-13 Top Cover Alignment Mark

Step 2. Place the top cover on the chassis and slide it toward the front of the server until the blue release
lever snaps in place.
Figure 3-14 Replacing the Top Cover
Replacing the Side Cover on a Pedestal-Mounted Server
To replace the side cover, follow these steps:
Step 1. Align the cover's mounting holes with the matching tabs on the server chassis.
70
on a Pedestal-Mounted Server
To replace cover,
align front edge here
then slide forward
Chapter 3
