BMW Parts and Accessories

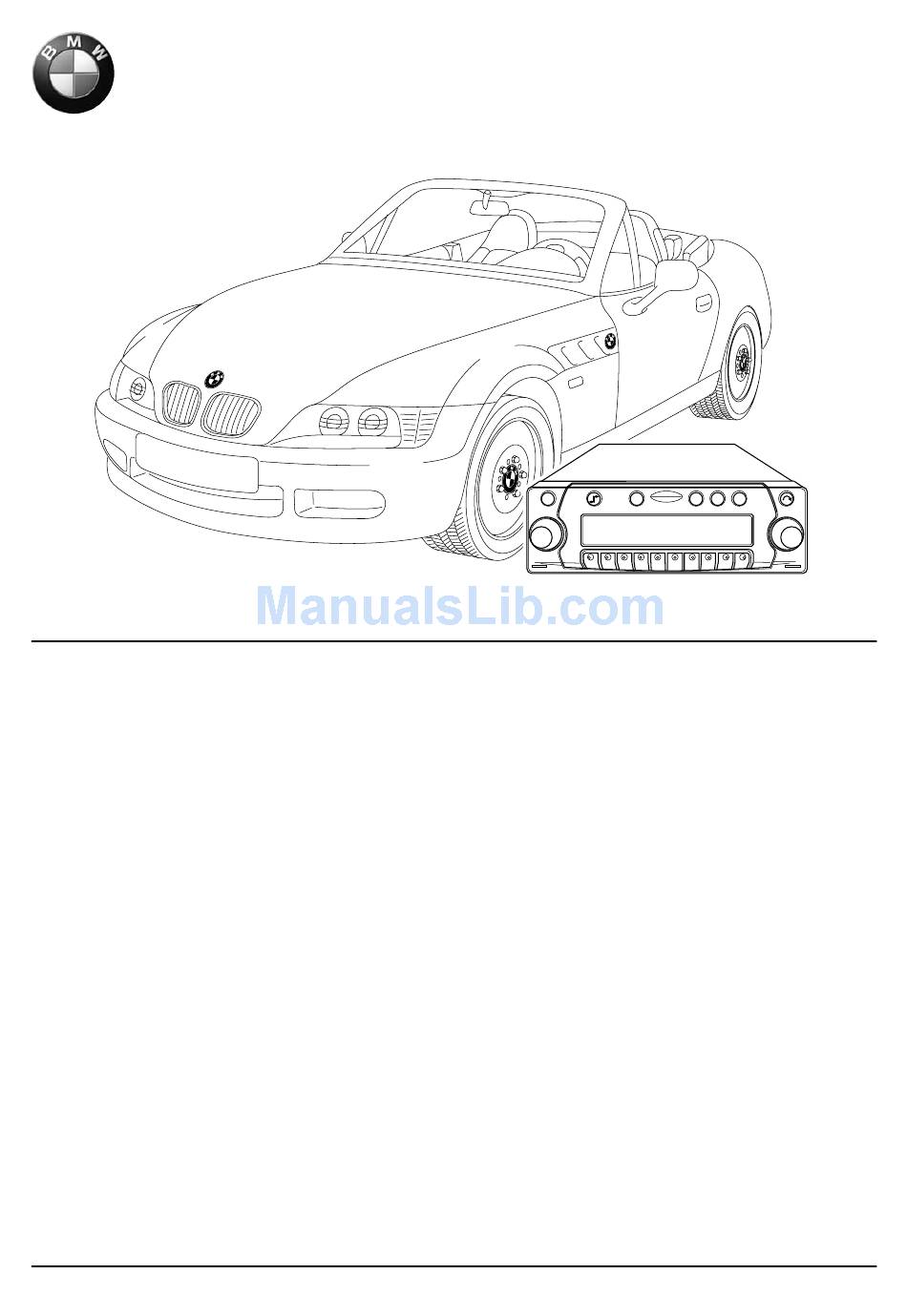

Installation Instructions
BMWTraffic Pro installation kit
BMW Z3 roadster (E36/7)
BMW Z3 Coupé (E36/7)
BMW Z3 M roadster (E36/7)
BMW Z3 M Coupé (E36/7)
Specialist and electrical knowledge required.
The installation time is approx. 1 hour, but this may vary depending on the condition of the
car and the equipment in it.
Retrofit/Installation kit No.: 65 90 0 027 973
Retrofit/Installation kit No: 65 90 0 139 835
Retrofit/Installation kit No: 65 90 0 027 973
Installation instructions No.: 01 29 0 028 261
ON
ON
ON
Info
Inf nfo
Issue date: 05.2001
TP
TP
TP
CD
CD
CD
Rad
Rad
ad
Nav
Nav
BMW
BMW
OK
OK
OK
F 36 0168 B

Advertisement

Table of Contents
loading

Summary of Contents for BMW Traffic Pro

  • Page 1 BMWTraffic Pro installation kit BMW Z3 roadster (E36/7) BMW Z3 Coupé (E36/7) BMW Z3 M roadster (E36/7) BMW Z3 M Coupé (E36/7) Specialist and electrical knowledge required. The installation time is approx. 1 hour, but this may vary depending on the condition of the car and the equipment in it.
  • Page 2: Table Of Contents

    Contents Section Page 1. Important information for installing the navigation radio ..........1 2. Preparations ......................2 3. Parts overview ......................3 4. Connection overview for the adapter cable ..............4 5. Connection overview for the navigation radio ............5 6.To install the GPS aerial....................6 7 .To install the adapter cable and connect the navigation radio ........8 8.
  • Page 3: Important Information For Installing The Navigation Radio

    Important information for installing the mudflaps Only for use within the BMW dealer organisation. The navigation radio may only be installed by a specialist workshop that has the required special tools and manuals. Ensure that the cables/lines are not kinked or damaged as you install them in the car.
  • Page 4: Preparations

    2. Preparations TIS AW-Nr. Conduct a short test (print out the error memory) Disconnect the battery 1200 Remove the radio (remove the installation frame if necessary) 65 11 030 Remove the centre fresh air grille 51 16 200 Remove the footwell trim on the driver’s side 51 45 180 Remove the bottom A pillar trim on the driver’s side EN/2...
  • Page 5: Parts Overview

    3. Parts overview Info Bedienungsanleitung Anleitung zur Inbetriebnahme F 36 0169 B A Adapter cable 1 Navigation radio 2 Radio retaining pin 3 Insulation-piercing connector 4 Cable tie (10x) 5 GPS aerial with retaining plate 6 Adhesive section (double-sided) 7 Rattle guard (2x) 8 Damping strip 9 Retaining bracket (not required) 10 Installation clip (2x)
  • Page 6: Connection Overview For The Adapter Cable

    4. Connection overview for the adapter cable F 36 0170 B Item Design / Description Cable colour Connection site in the car Adapter cable Black 17-pin plug casing To the black 17-pin socket casing X18126 in the centre console Black 16-pin socket casing To the navigation radio in the centre console Exposed wire end blue/yellow...
  • Page 7: Connection Overview For The Navigation Radio

    5. Connection overview for the navigation radio 13 16 15 18 14 17 F 36 0171 B Chamber A Chamber C2 Speed signal (TAA) 7-12 Specific connection for CD changer Signal from reversing light (RS) Telephone mute Continuous positive Chamber C3 Control output for automatic aerial / amplifier Low frequency telephone input Light (terminal 58G)
  • Page 8: To Install The Gps Aerial

    6. To install the GPS aerial Cut a square (30) measuring 40 x 40 mm out of the damping strip (8). F 36 0172 B Affix the square (30) of damping strip to the top of the GPS aerial (5) with the retaining plate (31). Affix the adhesive section (6) on to the centre of the underside of the retaining plate (31) and remove the backing foil (32).
  • Page 9 To install the GPS aerial Lay the connection cable (30) for the GPS aerial to the installation site of the radio (31) and tie it back. The connection cable (30) for the GPS aerial must not be kinked or damaged. Install the fresh air grille.
  • Page 10: To Install The Adapter Cable And Connect The Navigation Radio

    To install the adapter cable and connect the navigation radio Connect branch A1, black 17-pin plug casing on X18126 the adapter cable A to the black 17-pin socket casing X18126 on the audio wiring harness. Affix a rattle guard (7) to the second rattle guard (7) and then affix them over the plug connection A1+X18126.
  • Page 11 To install the adapter cable and connect the navigation radio Connect the coaxial plug (30) for the GPS aerial into the coaxial socket casing (31) in the navigation radio (1). Carefully slide the navigation radio (1) into the radio shaft and secure it with the existing slides. Refer to the information for securing the navigation radio in the section entitled Installation/Removal instructions in the operating...
  • Page 12: Coding

    8. Coding This system has no diagnostics capability and does not have to be coded. 9. Concluding work Connect the battery Complete the commissioning process Assemble the car again following the instructions for its dismantling in reverse order Print out the error memory 10.
  • Page 13: Circuit Diagram For The Adapter Wiring Harness

    12. Circuit diagram for the adapter wiring harness EN/11 Retrofit/Installation kit No: 65 90 0 027 973 Issue date: 05.2001 Installation instructions No.: 01 29 0 028 261...
  • Page 14 (chambers A + B) Cable end The components marked with an asterisk (*) are only valid for this circuit diagram. All other components and X designations comply with the BMW after-sales circuit diagrams. Colour abbreviations BR = Brown RD = Red...
