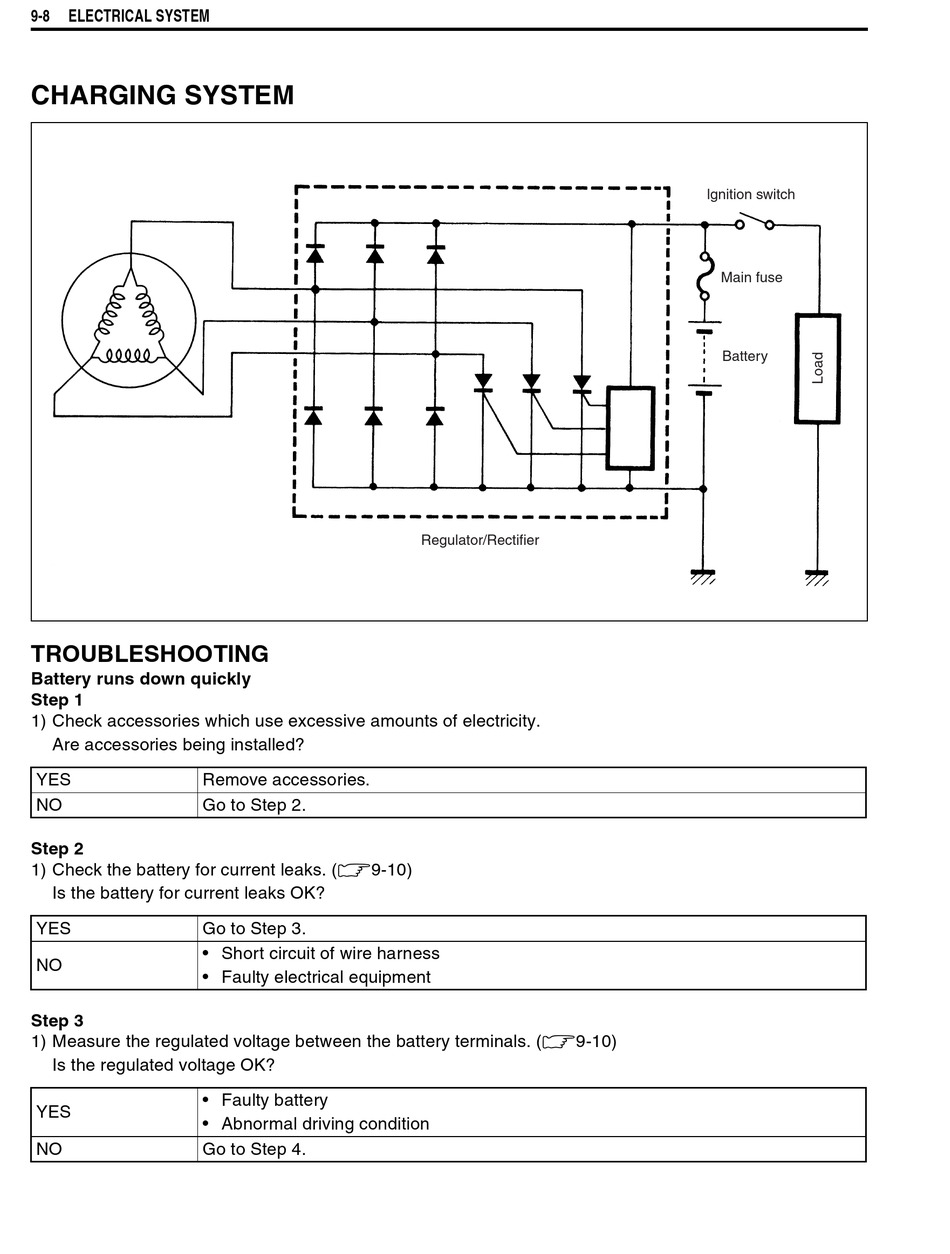

9-8 ELECTRICAL SYSTEM

CHARGING SYSTEM

TROUBLESHOOTING

Battery runs down quickly
Step 1
1) Check accessories which use excessive amounts of electricity.
Are accessories being installed?
YES Remove accessories.
NO Go to Step 2.
Step 2
1) Check the battery for current leaks. (!9-10)
Is the battery for current leaks OK?
YES Go to Step 3.
• Short circuit of wire harness
NO
• Faulty electrical equipment
Step 3
1) Measure the regulated voltage between the battery terminals. (!9-10)
Is the regulated voltage OK?
• Faulty battery
YES
• Abnormal driving condition
NO Go to Step 4.
Regulator/Rectifier
lgnition switch
Main fuse
Battery
