Service and Parts Manual

Compressor/Electrical Specifications

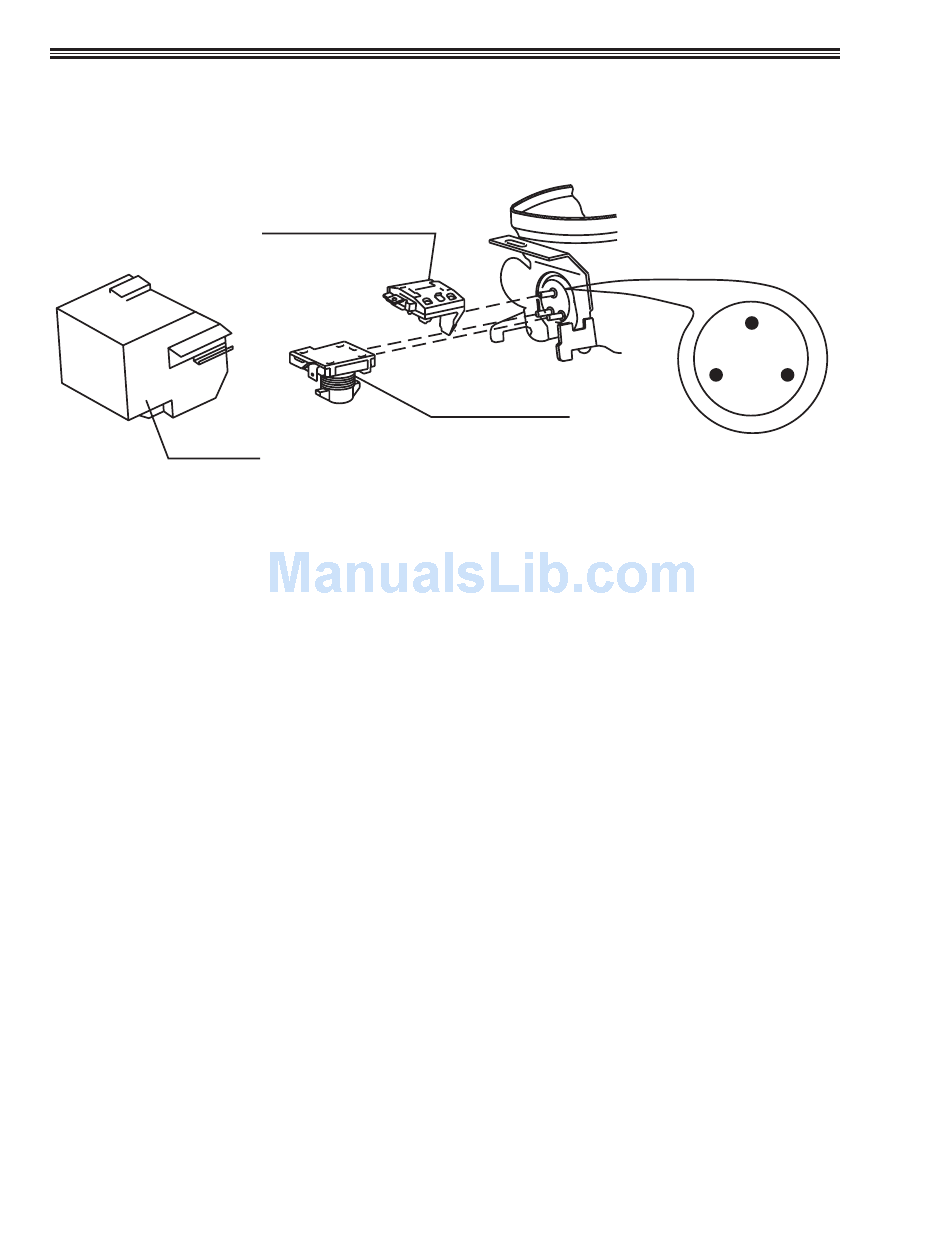

EMI ER
OVERLOAD PROTECTOR
RELAY COVER
Compressor Pins
To measure start winding resistance, measure across the C-S pins.
To measure run winding resistance, measure across the C-R pins. These pins should
never measure any resistance to ground. This would indicate a shorted compressor.
Specifications
EMI3OHER Start Winding Resistance:
EMI3OHER Run Winding Resistance:
SD39 Start Winding Resistance:
SD39 Run Winding Resistance:
EMI5OHER Start Winding Resistance:
EMI5OHER Run Winding Resistance:
SD51 Start Winding Resistance:
SD51 Run Winding Resistance:
115 VOLT Ice Maker Heater Resistance:
115 VOLT Water Valve Coil Resistance:
STARTING RELAY
28 OHMS
8 OHMS
11 OHMS
5 OHMS
12 OHMS
4 OHMS
5 OHMS
5 OHMS
80 OHMS
335 OHMS
12
C
R
S
UL183-3
