Panasonic MC-CL934 Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

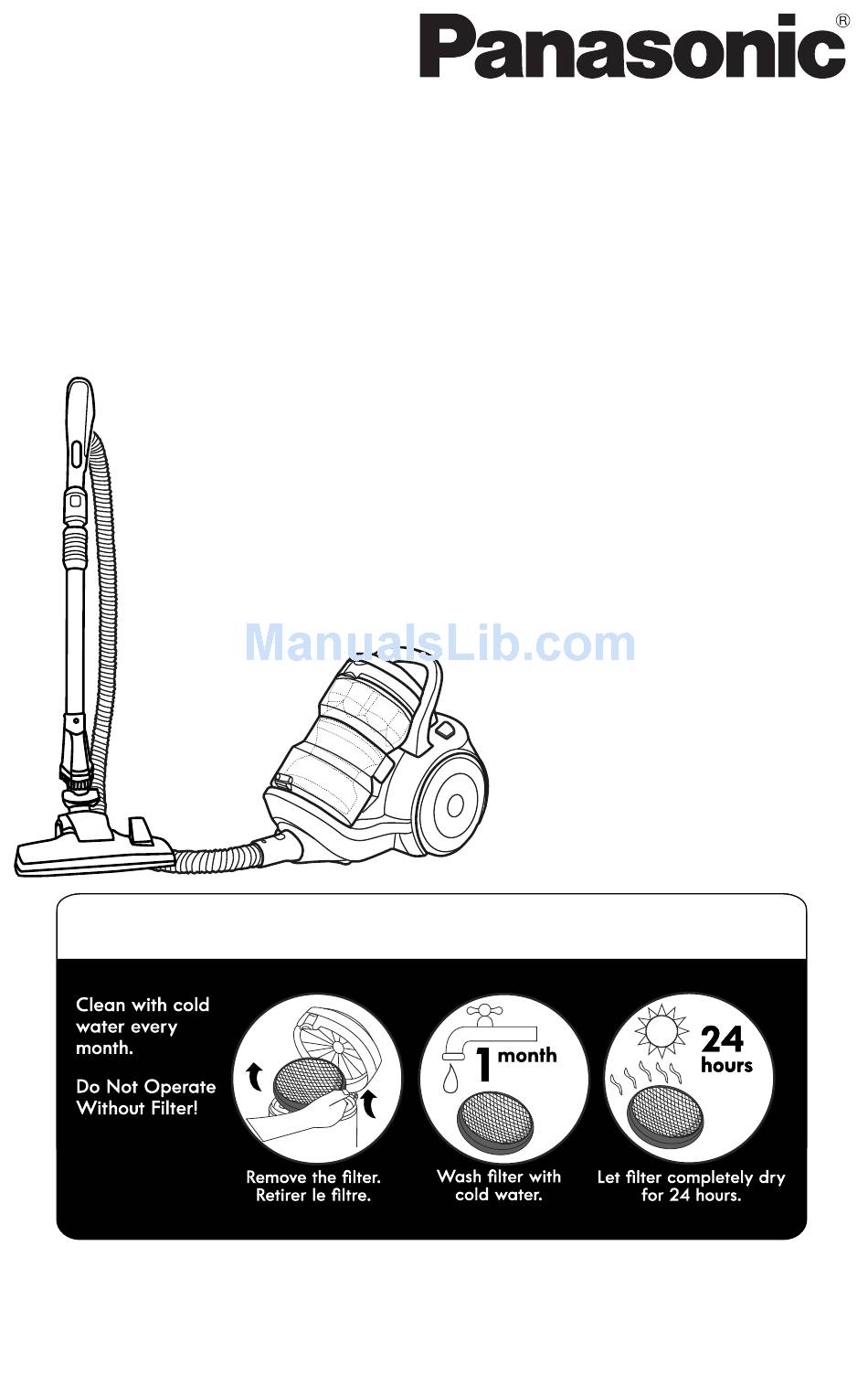

Operating Instructions

VACUUM CLEANER

(HOUSEHOLD)
MC-CL934
Model No.
Washable Filter
Thank you for purchasing this vacuum cleaner.
Please read these instructions carefully before using the vacuum cleaner
and save these instruction for future reference.
This product complies with the directive 2006/95/EC and 2004/108/EC.

Advertisement

Table of Contents
loading

Related Manuals for Panasonic MC-CL934

Summary of Contents for Panasonic MC-CL934

  • Page 1: Operating Instructions

    Operating Instructions VACUUM CLEANER (HOUSEHOLD) MC-CL934 Model No. Washable Filter Thank you for purchasing this vacuum cleaner. Please read these instructions carefully before using the vacuum cleaner and save these instruction for future reference. This product complies with the directive 2006/95/EC and 2004/108/EC.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Cautions ............2 Caution for AC Mains Lead (UK and Ireland only) .

  • Page 3: Caution For Ac Mains Lead (Uk And Ireland Only)

    If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic Dealer. IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

  • Page 4: Important Safety Instructions For The User

    • Do not use to pick up flammable or combustible materials, or others that may become so or use in areas where they may be present. • This appliance should be serviced by an authorised Panasonic Service Centre, and only genuine Panasonic spare parts should be used.

  • Page 5: Parts Identification

    PARTS IDENTIFICATION Dusting Parquet Brush Handle Nozzle Suction Control Hose Handle Quick Release Telescopic Wand Crevice Tool Wand Button Dusting Brush Quick Release Pedal Hose Swivel Carpet/Bare Floor Floor Selector Brush Washable Primary Filter (inside) Carrying Handle Mains Lead Dust Cup On/Off Switch Exhaust Filter Tray...

  • Page 6: Assembly

    ASSEMBLY Hose ➢ Tilt the canister back. Hose Latch ➢ Align the hose latch tab and notch in canister and insert hose into canister until it snaps in place. To remove: ➢ Press hose latch tab inward and pull Notch out on hose.

  • Page 7: To Operate Vacuum Cleaner

    Floor Brush ➢ Insert wand into floor brush until the Telescopic Wand wand button snaps into place. Quick Release To remove: Pedal ➢ Press quick release pedal and pull the wand straight up and out of floor Floor Brush brush. TO OPERATE VACUUM CLEANER Mains Lead ➢...
  • Page 8 Decrease Suction Increase Suction Suction Control Tools ATTACHMENTS ON HANDLE ➢ Press handle quick release button and pull up on handle. Handle Quick Release Button ➢ Slide attachments firmly on handle as needed. ATTACHMENTS ON WAND Quick Release ➢ Press quick release pedal and pull the Pedal wand straight up and out of floor brush.

  • Page 9: Performance/Safety Features

    PERFORMANCE / SAFETY FEATURES Motor Protection System Motor Protector Motor Protector This vacuum cleaner also has a motor protector bypass valve which prevents Dust motor overheating and damage. The valve opens to provide cooling air when a clog prevents normal air flow to the vacuum cleaner suction motor.

  • Page 10: Routine Care Of Vacuum Cleaner

    ROUTINE CARE OF VACUUM CLEANER Removing Clogs The vacuum cleaner creates suction that picks up dirt. Rapidly moving air carries the dirt to the dust cup through the airflow passages. The dust cup lets the air pass through, while it traps the dirt. For best cleaning results, keep the airflow passage open. Check the starred areas occasionally for clogs.

  • Page 11: Dust Cup

    Dust Cup Always empty the dust cup before the dirt Dust Cup Handle level reaches the “MAX” line. ➢ Turn off and unplug vacuum cleaner. ➢ Lift dust cup handle located at the top Dust Cup of the dust cup. ➢...
  • Page 12 TO REPLACE DUST CUP ➢ Place dust cup back into vacuum cleaner by ➀ inserting the bottom first and ➁ tilting back with the dust cup handle raised. ➢ Lower the dust cup handle to lock dust cup in place. A noticeable “click” should be heard.
  • Page 13 To Reinstall: Tabs ➢ Align the slots on the pre-filter with the Slots alignment tabs inside dust cup lid assembly. ➢ Rotate pre-filter clockwise to lock in place. ➢ Replace the lower portion of the dust cup by aligning marks as shown, UNLOCKED (For Cleaning).
  • Page 14 Primary Filter (Washable) The washable primary filter is located inside the dust cup lid. Check the primary filter frequently and clean when dirty. Dust Cup It is recommended to clean the primary Latch filter with cold water at least every (1) month.
  • Page 15 HEPA Media Exhaust Filter WARNING Fire and/or Electrical Shock Hazard Do not operate with a clogged exhaust filter or without the exhaust filter or exhaust filter tray installed. Exhaust Filter HEPA MEDIA EXHAUST FILTER Tray The exhaust filter cartridge must be replaced when dirty.

  • Page 16: Before Requesting Service

    BEFORE REQUESTING SERVICE Before contacting your Panasonic service centre, check the following points: NOTE: Failure to correctly maintain your product may result in a charge if referred to a service agent for attention. WARNING Electric Shock or Personal Injury Hazard.

  • Page 17: Specifications

    SPECIFICATIONS MODEL NO. MC-CL934 POWER SOURCE 230-240V / 50Hz MAX. INPUT POWER 1200W MOTOR PROTECTION PARQUET FLOOR CLEANING WASHABLE PRIMARY FILTER EXHAUST FILTER HEPA Media DIMENSIONS (W x L x H) 36.5 x 38 x 108 cm NET WEIGHT 7.5 kg Note: Specifications are subject to change without notice.

  • Page 18: Disposal Information

    DISPOSAL INFORMATION Disposing the appliance Before disposing the appliance, remove the dust bag and all filters, and dispose them with normal household waste. Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

  • Page 19: Guarantee

    GUARANTEE • The guarantee conditions set by our representatives in the country of sale is applied. • Using consumable parts which are not those of Panasonic will make the guarantee invalid. • Repairs should be done by Panasonic service persons or technicians. Otherwise the guarantee will be invalid.
  • Page 20 Pursuant to the directive 2004/108/EC, article 9 (2) Panasonic Testing Centre Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, F.R. Germany Panasonic Corporation http://www.panasonic.net/ © 2013 Panasonic Appliances Company of America, Division of Panasonic Corporation of North America. All Rights Reserved.
