Moen 84422 Specifications

DESCRIPTION
• Metal construction with chrome plated finish
• 1/2" IPS connections
• Includes hot and cold indicators
• Includes metal/polypropylene pop-up type waste assembly
for model 84422; less waste assemby for model 84420
OPERATION
• Knob style handles
• Maximum handle rotation angle is 180˚ to full on for
either handle.
• Hot side counterclockwise to open (clockwise to
close).
• Cold side counterclockwise to open (clockwise to
close).
FLOW
• Aerator is limited to 2.2 gpm (8.3 L/min)
CARTRIDGE
• 1224 Cartridge design
• Nonmetallic and stainless steel material
STANDARDS
• Third party certified to CSA B125 and
ASME A112.18.1M and all applicable requirements
referenced therein
• Certified to ANSI/NSF 61/9
• Complies with California Proposition 65 and with
the Federal Safe Water Drinking Act
WARRANTY
• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
1-7/8"
(48mm)
(121mm)
MOEN SPECIFIER SERVICES 1-800-321-8809 Ext. 2158
3/4" (19mm)
MAX. DECK
THICKNESS
MOUNTING
NUT/WASHER
4-3/4"

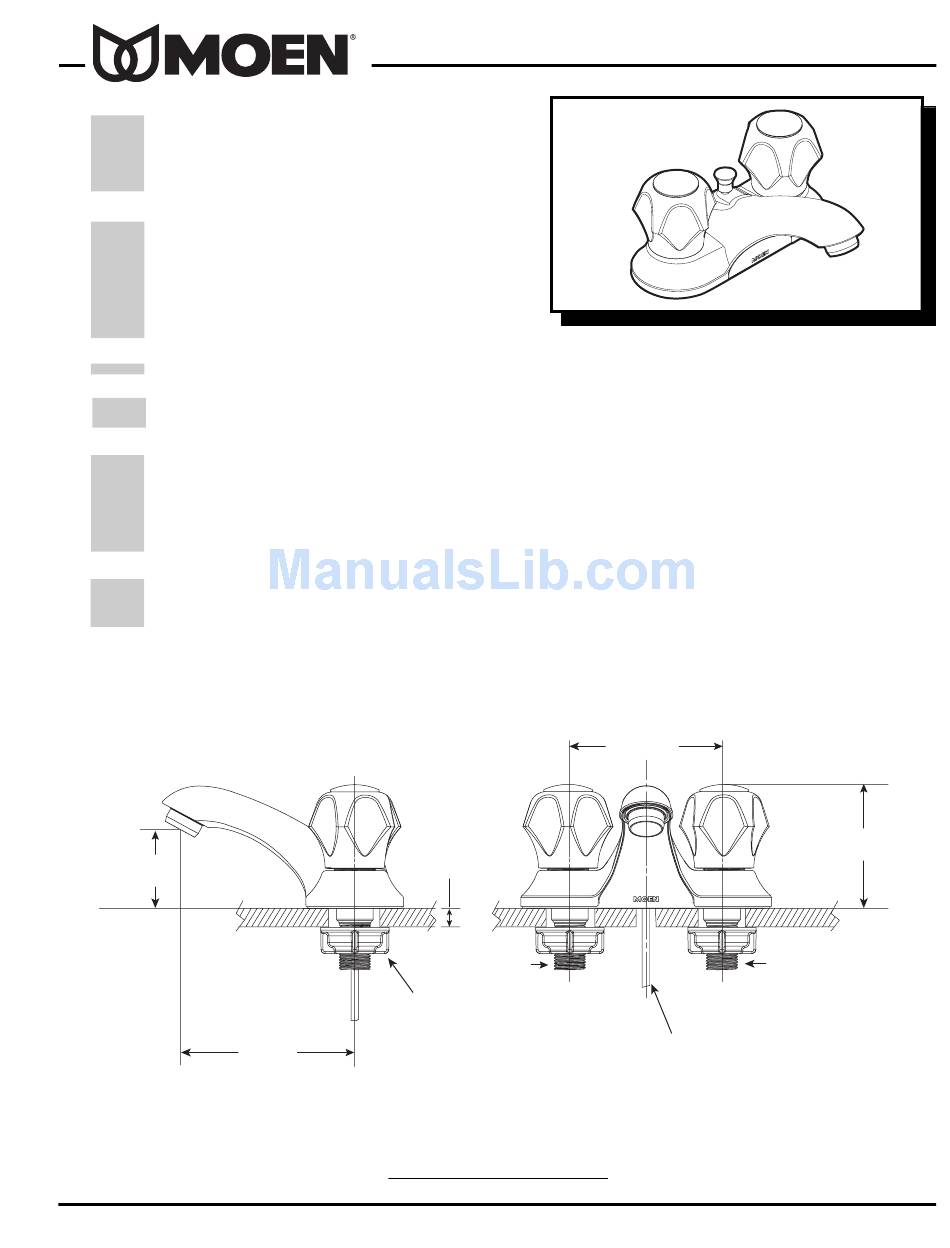

CRITICAL DIMENSIONS
Two Handle Lavatory Faucet
for illustrated parts and handle options
NOTE: THIS FAUCET IS DESIGNED TO BE
INSTALLED THRU 3 HOLES,
4"
(102mm)
HOT
1/2" NPT
(DO NOT SCALE)

Specifications

Models: 84422, 84420
NOTE: See reverse side
1" (25mm) MIN. DIA.
COLD
1/2" NPT
LIFT ROD
3"
(77mm)
