Assembly Instructions

75E LFL Antenna System
with Pre-Assembled Feed System
Feed and Arm
Assembly with
BUC, LNB and
Ground Wire
HARDWARE
6000737-01
M8 Plow Bolt 60mm
Andrew Corporation
Telephone: 708-349-3300
Fax (USA): 1-800-349-5444
10500 West 153rd Street
www.andrew.com
Orland Park, IL U.S.A. 60462
Reflector
with Clips
M8 Plow Bolt 80mm
M8 Hex Bolt 70mm
satcom@andrew.com
AntennaTechSupport@andrew.com
Skew Clip
Flat Washer
8000986-01
AZ/EL
Mount
M8 Lock Washer
M8 Nut
Printed in U.S.A.
ECN 9007225
1/06 8000986-01

Advertisement

Table of Contents
loading

Related Manuals for Andrew 75E LFL

Summary of Contents for Andrew 75E LFL

  • Page 1: Assembly Instructions

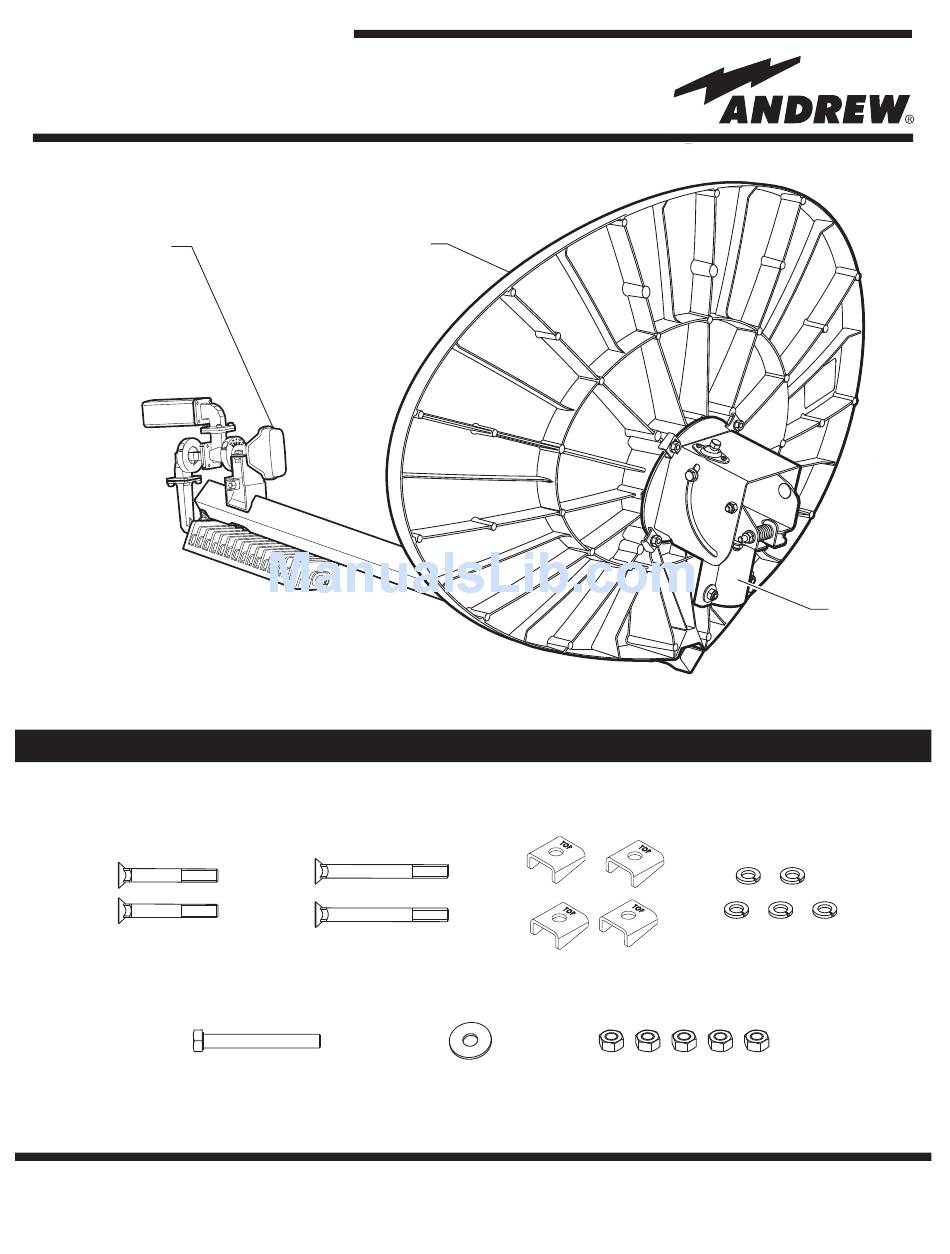

    Assembly Instructions 8000986-01 75E LFL Antenna System with Pre-Assembled Feed System Feed and Arm Reflector Assembly with with Clips BUC, LNB and Ground Wire AZ/EL Mount HARDWARE 6000737-01 M8 Plow Bolt 60mm M8 Plow Bolt 80mm Skew Clip M8 Lock Washer...
