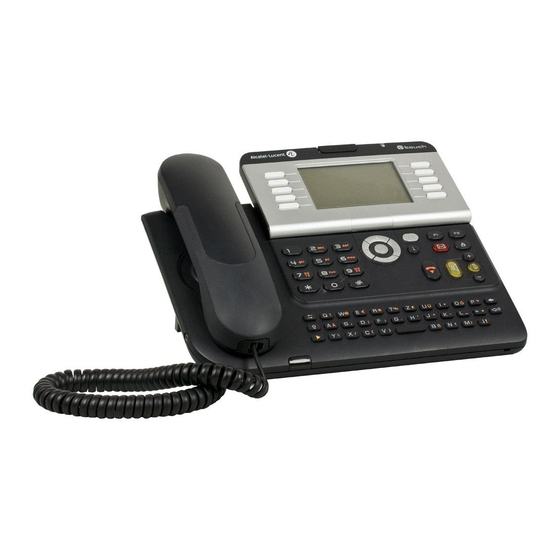

Alcatel-Lucent 4038 Instruction Manual

US
Receiver (possibility of a wireless
handset - Bluetooth® - Alcatel-Lu-
•
cent IP Touch 4068 Phone only)
•
Socket for connecting headphones or a
handsfree/speaker unit
Audio keys
END key: to terminate a call.
Handsfree/Speaker Key: to make or answer a call without lifting the
receiver.
• lit in handsfree mode or headset mode (short press).
• flashing in speaker mode (long press).
Intercom/Mute key:
• During a call: press this key so that your party cannot hear
you.
• Terminal idle: press this key so that you can automatically
answer a call without lifting the receiver.
To adjust the speaker or receiver volume up or down
Extension unit
An extension unit can be fitted to your tele-
phone. This provides additional keys which
can be configured as feature keys, line keys,
call keys etc.
To affix labels: push the holding strip of the
unit backwards to you and lift it. Install the la-
bel under the keypad, in the housing designed
for, and place the keypad back into position.
LED
flashing green: incoming call
flashing red: alarm
Navigation
OK key: used to validate your choices and options while programming or configu-
ring.
Left-right navigator: used to move from one page to another.
Up-down navigator: used to scroll through the content of a page.
Back/Exit key: to return to previous menu (short press) or return to first screen
(long press) ; during a call, provides access to welcome screens (Menu, Info,...) and
to return to the call icon screens.
Welcome screens
Info page: contains information on the telephone and the status of its features: name, telephone num-
Alphabetic keypad
ber, number of messages, activation of forwar feature, appointment reminder, etc.
Menu page: contains all features and applications ac-
cessible via the keys associated with the words on the
screen.
Main page: contains call line keys (allowing supervision
of calls) and programmable call keys.
IP Touch Bluetooth® Wireless handset (Only available on Alcatel-Lucent IP
Touch 4068 Phone set)
Other
Using your telephone
Identifying the terminal you are on
The number of your telephone is displayed on the 'Info' page.
Access the Info page using the navigator.
Making a call
OR OR OR
lift the IP Touch Bluetooth® handsfree programmable
receiver Wireless handset (IP line key
Touch 4068 Phone)
To make an external call, dial the outside line access code
(9) before dialing your party's number.
Answering a call
OR OR OR
Paul
is calling
lift the IP Touch handsfree press the key next to the
receiver Bluetooth®
Wireless handset
(IP Touch 4068
Phone)
Redial
last number redial
Making a call-back request to a busy number
¤Callback
the number you are calling
is busy
dial the
number for
your call
'incoming call' icon
hang up
