Milwaukee 4004-55 Service Parts List

EXAMPLE:
00
Component Parts (Small #)
0
Are Included When Ordering
The Assembly (Large #).
FIG. PART NO. DESCRIPTION OF PART
1 42-90-0210 Water Hose Fitting
2 45-80-0060 Shut Off Valve
3 06-57-1050 Retaining Nut
4 45-88-1140 Thrust Washer
5 43-06-0160 Clutch Disc-Outer
6 43-06-0150 Clutch Disc-Inner
7 43-76-0051 Water Swivel Hsg. w/ 06-83-2430 Scr.
8 40-50-2150 Disc Spring
9 45-06-0635 Seal
10 45-88-8565 Washer (Bag of 2)
13 38-50-6020 Spindle
16 34-80-3800 Retaining Ring
17 02-20-2515 Ball Bearing
18 06-82-9202 1/4-20 x 4-1/4" Taptite T-30
19 28-14-1870 Gear Case Assy.(Inc. 06-65-1535 Pin)
20 45-36-1520 Spindle Spacer
21 32-75-3430 Spindle Gear
22 02-50-4830 Needle Bearing
23 02-04-1205 Ball Bearing
24 36-66-3751 Pinion Shaft Assy.
25 06-42-1600 Woodruff Key
26 32-40-1581 Intermediate Gear
27 40-50-6300 Shifting Spring
28 44-70-0100 Shifting Plunger
30 45-88-0520 Thrust Bearing Washer
31 02-80-1800 Thrust Bearing
32 32-10-0061 High Speed Gear
34 36-14-0720 Clutch Pinion Shaft
35 45-88-0530 Thrust Bearing Washer
36 02-80-5000 Thrust Bearing
37 32-10-0051 Clutch Gear Assembly
38 45-88-0510 Thrust Bearing Washer
39 02-80-1200 Thrust Bearing
40 45-98-0090 Shifting Yoke
41 14-13-0210 Diaphragm Assy.(Inc. 06-65-1155 Pin)
42 30-15-0272 Shift Cam
43 43-44-0580 Foam Gasket
44 06-65-0840 1/8 x 3/4" Groove Pin
45 25-60-0056 Shifting Knob
46 02-04-1229 Ball Bearing
47 16-70-0320 Armature
SERVICE PARTS LIST
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS

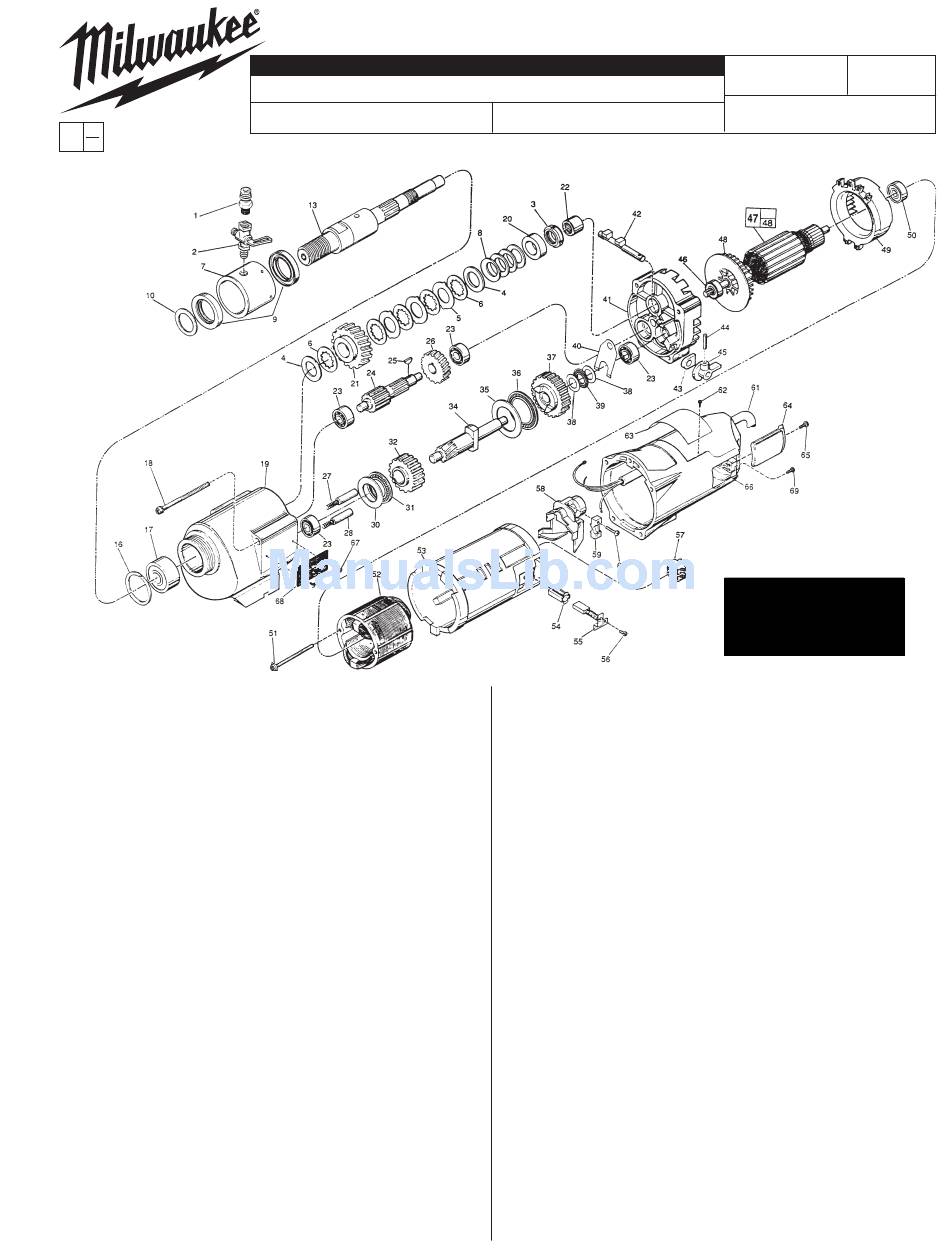

DYMODRILL with INTERNAL CLUTCH
CATALOG NO. 4004-55
NO. REQ.
STARTING
841A
SERIAL NO.
FIG. PART NO.
(1) 48 22-84-0790
(1) 49 42-14-0291
(1) 50 02-04-1041
(2) 51 06-82-9152
(3) 52 18-70-0290
(5) 53 23-16-1410
(1) 54 22-20-0680
(4) 55 22-18-0702
(2) 56 06-82-8835
(1) 57 22-56-0470
(1) 58 22-38-0140
(1) 59 31-17-0200
(1) 60 06-82-7326
(4) 61 23-37-0155
(1) 62 06-72-1720
(1) 63 12-99-2145
(1) 64 22-32-0350
(1) 65 06-82-5316
(4) 66 28-50-6363
(1) 67 06-82-5266
(1) 68 12-98-3060
(1) 69 05-81-0470
(2) 49-96-4700
(2) 49-96-0050
(1) 49-96-0085
(1) 45-56-0210
(1) 61-10-0660
(1) 61-30-0061
(1)
(1)
FOR MOUNTING DRILL MOTOR USE:
(1)
06-75-3090
(2)
06-97-4050
(1)
(1)
FIG. LUBRICATION
(1)
19 18 Oz. Type "J" Grease, No. 49-08-4220.
(1)
(2)
(1)
MILWAUKEE ELECTRIC TOOL CORPORATION
(1)
(1)
13135 W. LISBON RD., BROOKFIELD, WI 53005
(1)
BULLETIN NO.
55-16-7000
REVISED BULLETIN
WIRING INSTRUCTION
58-03-0021
SEE THE REVERSE SIDE
FOR THE SERVICING
OF THE INTERNAL
CLUTCH MECHANISM
DESCRIPTION OF PART
Fan
Baffl e
Ball Bearing
10-24 x 2-3/4" Pan Hd. Sem. T-25
Field
Motor Insulator
Brush Tube
Carbon Brush Assembly
8-32 x 5/16" Pan Hd. Sem.T-20
Terminal Block
Wire Trap
Cord Clamp
8-16 x 1" Pan Hd. Plastite T-20
Control Assy. (See Bull. 58-03-0021)
Service Rivet
Service Nameplate
Brush Cover
8-32 x 1/2" Pan Hd. Slt. Taptite T-20
Motor Housing
4-40 x 1/4" Pan Hd. TaptiteT-10
Instruction Plate
M-5 Ground Screw
1-3/8" Open End Wrench
3/32" Hex Socket Wrench
3/16" Hex Socket Wrench
Strap And Buckle
Retaining Nut Spanner Tool
Water Seal Jig
1/4-20 x 7/8" Socket Hd. Screw
1/4" Split Ring Lock Washer
DATE
Oct. '95
NO. REQ.
(1)
(1)
(1)
(2)
(1)
(1)
(2)
(2)
(2)
(1)
(1)
(1)
(2)
(1)
(2)
(1)
(2)
(2)
(1)
(2)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(4)
(4)
Drwg. 1
