BEFORE INSTALLATION
The LP916A-C Pneumatic Remote Bulb Thermostats
("Thermostats") provide proportional control of heating or
cooling in induction units, fan coil units, and unit ventilators. A
wide throttling range model is available for duct discharge
control of heating or cooling coils and mixed air dampers.
Observe the following warning when installing this device.
WARNING
Do not rotate the Thermostat control shaft more than
two revolutions clockwise from the original position as
received. Rotating the shaft more than two revolutions
from the original position can cause permanent
damage to the Thermostat.
This warning is also on a removeable tag (Fig. 1)
attached to the Thermostat and should remain
attached until the system is ready to start up.
Use care to prevent the capillary and sensing bulb
from being dented or damaged in any way during
installation. Also avoid any sharp bends or kinks in the
capillary during installation.
Copyright © 1990 Honeywell Inc. • All Rights Reserved

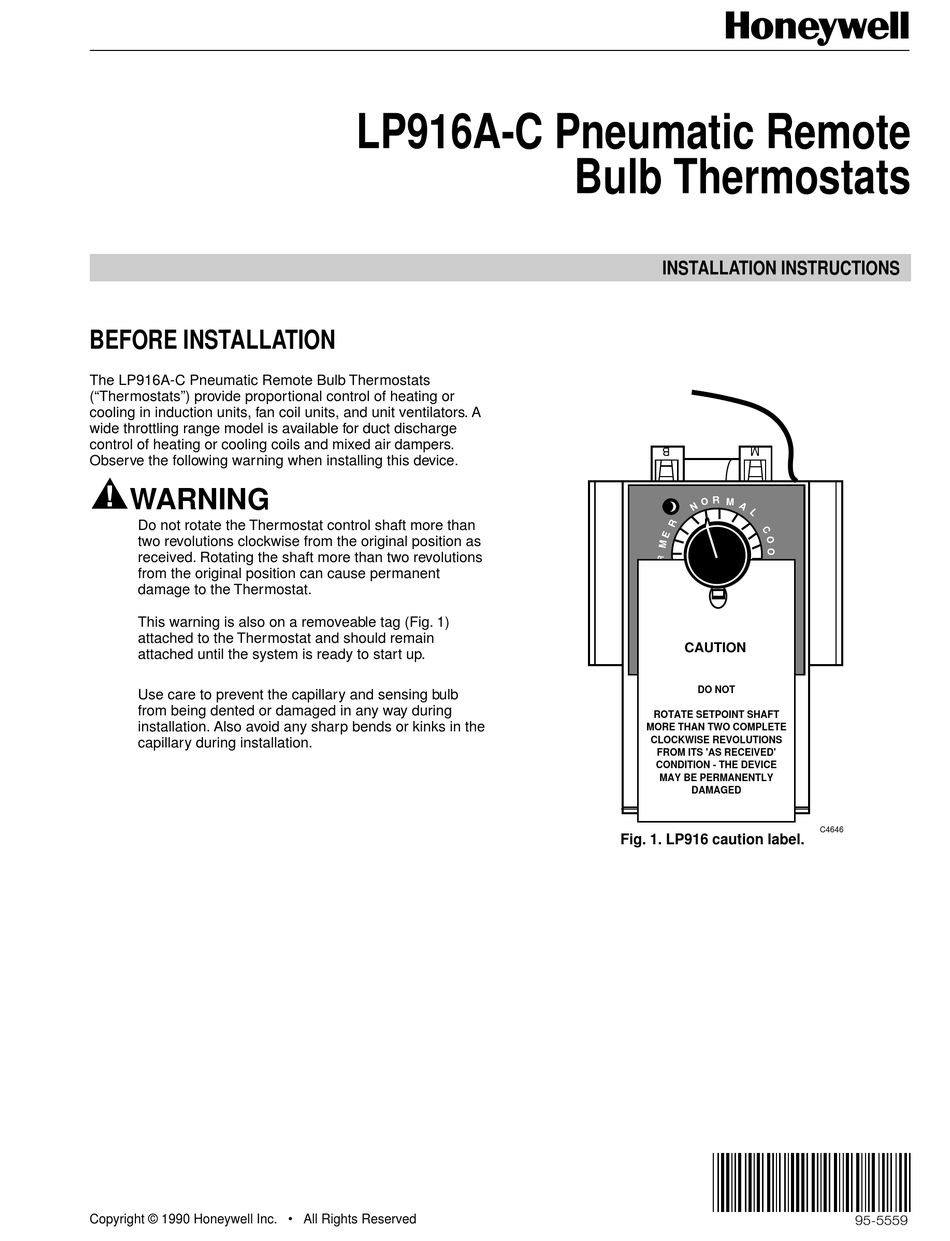

LP916A-C Pneumatic Remote
Bulb Thermostats
INSTALLATION INSTRUCTIONS
CAUTION
DO NOT
ROTATE SETPOINT SHAFT
MORE THAN TWO COMPLETE
CLOCKWISE REVOLUTIONS
FROM ITS 'AS RECEIVED'
CONDITION - THE DEVICE
H O N E Y W E L L
MAY BE PERMANENTLY
DAMAGED
Fig. 1. LP916 caution label.
C4646
95-5559
