NETWORK CAMERA

SND-7084R/
User Manual
SNO-7084R/SNV-7084R

Advertisement

Table of Contents
loading

Related Manuals for Samsung SND-7084R

Summary of Contents for Samsung SND-7084R

  • Page 1: Network Camera

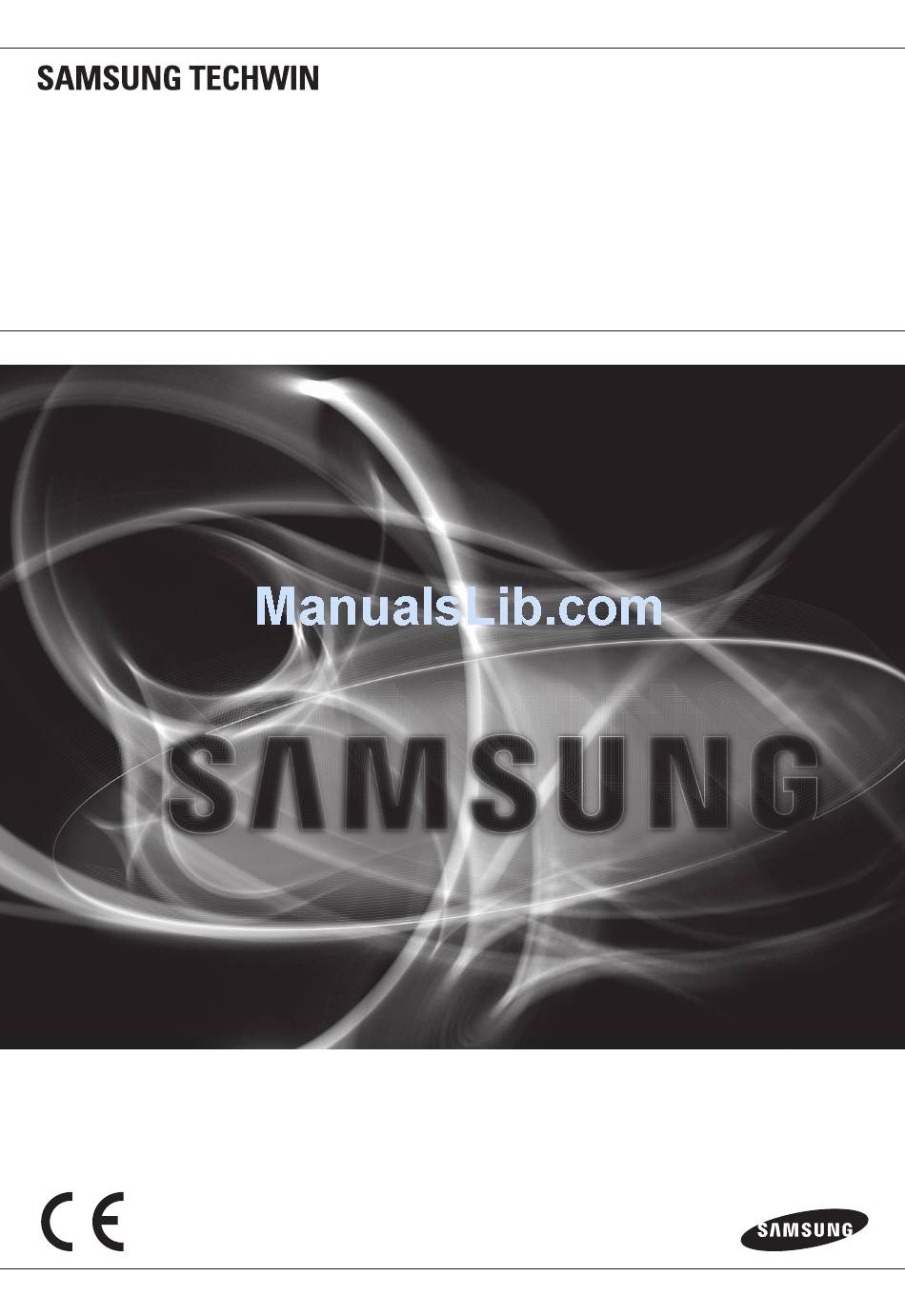

    NETWORK CAMERA SND-7084R/ User Manual SNO-7084R/SNV-7084R...

  • Page 2 Disclaimer Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility.

  • Page 3: Important Safety Instructions

    overview important Safety inStructionS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions.

  • Page 4: Explanation Of Graphical Symbols

    overview warninG TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
  • Page 5 class construction An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a protective earthing connection. Battery Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Disconnection Device Disconnect the main plug from the apparatus, if it’s defected.
  • Page 6 overview Please read the following recommended safety precautions carefully. y Do not place this apparatus on an uneven surface. y Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area. y Do not place this apparatus near conductive material.

  • Page 7: Table Of Contents

    Important Safety Instructions Product Features Recommended PC Specifications Recommended Micro SD/ SDHC/SDXC Memory Card Specifications NAS recommended specs What’s Included At a Glance (SND-7084R) At a Glance (SNO-7084R) At a Glance (SNV-7084R) iNSTALLATioN & Installation (SND-7084R) CoNNeCTioN Installation (SNO-7084R) Installation (SNV-7084R)

  • Page 8: Web Viewer

    overview web vieweR Connecting to the Camera Password setting Login Installing Silverlight Runtime Installing STW WebViewer Plugin Using the Live Screen Playing the recorded video SeTup SCReeN Setup Video & Audio Setup Network Setup Event Setup NAS (Network Attached Storage) guide System Setup AppeNDix...

  • Page 9: Product Features

    If the IR indicator turns on, the product switches to the IR mode for preventing an object from being too bright, which helps you identify the object in near distance. • visibility: 25m (SnD-7084r/Snv-7084r) In B/W mode, the IR indicator turns on with the effective visibility of 25m at 0 Lux.

  • Page 10: Recommended Pc Specifications

    overview • Smart codec Adaptively applies codecs for a portion of the camera’s field of view to improve the quality of such area specified by user. • auto Detection of Disconnected network Detects network disconnection before triggering an event. • onvif compliance This product supports ONVIF Profile-S.

  • Page 11: Specifications

    recommenDeD micro SD/SDHc/SDXc memory carD SpecificationS • Recommended capacity : 4GB ~ 64GB • For your camera, we recommend you use a memory card from the following manufacturers: Micro SD/SDHC/SDXC Memory Card : Sandisk, Transcend • For the framerate below 30 fps, it is recommended to use the specification memory card of Class 6 or higher.

  • Page 12: What's Included

    Please check if your camera and accessories are all included in the product package. Appearance Item Name Quantity Description Model Name SND-7084R or Camera SNO-7084R or SNV-7084R Instruction book, SND-7084R/ Installer S/W CD, SNO-7084R/ CMS S/W DVD...
  • Page 13 Appearance Item Name Quantity Description Model Name SND-7084R/ Power Terminal Block Plugged in the power plug SNV-7084R SND-7084R/ Template Product installation guide SNV-7084R Alarm Cable Useful for alarm connection SND-7084R Useful for installation on the Tapping Screw SND-7084R ceiling, wall, etc.
  • Page 14 SNV-7084R on the pipe, wall mount, etc. or blocking a hole. Used for dome cover Drill bit disassembly, assembly and SNV-7084R camera installation. Options (not included) Housing for installing indoor SND-7084R/ Indoor Buried Housing buried type cameras SNV-7084R 14_ overview...

  • Page 15: At A Glance (Snd-7084R

    GLance (SnD-7084r) appearance Item Description Dome cover Case cover used to protect the lens and the main unit. Camera Case Housing part that covers the camera body. English _15...
  • Page 16 overview components k l m 16_ overview...
  • Page 17 Item Description Internal Cover It is a cover to protect the main body. Illumination Sensor Detects incoming light to control the IR LED. Lens Lens for the camera. IR LED These infrared LED’s are controlled by the illumination sensor. Zoom in (Tele) Zoom out (Wide) Zoom/Focus Control Focusing on a near object (Near)
  • Page 18 overview Item Description Micro SD Memory Compartment for the Micro SD memory card. Card Compartment Audio Out Jack Used to connect to speakers. Audio In Jack Used to connect to a microphone. Network Port Used to connect the PoE or Ethernet cable for network connection. Microphone hole A microphone is embedded.
  • Page 19 at a GLance (Sno-7084r) appearance Item Description Sunshield It protects the camera from the direct sunlight. Sunshield Hold It fixes the sunshield with the camera. The button restores all camera settings to the factory default. Press and hold for about 5 seconds to reboot the system. If you reset the camera, the network settings will be adjusted so that Reset Button DHCP can be enabled.
  • Page 20 overview Item Description Zoom in (Tele) Zoom out (Wide) Zoom/Focus Control Focusing on a near object (Near) Button Focusing on a far object (Far) Focus Control Press this button for automatic focus control. Output port for test monitoring the video output. Use the test monitor cable Test Monitor Out to connect to a mobile display and check the test video.
  • Page 21 components CAUTION: Be ware of the Rated Voltage and Polarity of the power connection. Item Description Power Port Used to plug the power cable. ARM-OUT Used to connect the alarm output signal. Common port for alarm output signal. Alarm I/O Port Used to connect the alarm input sensor or external day/ ARM-IN night sensor.
  • Page 22 overview Item Description Audio Out Jack Used to connect to speakers. Audio In Jack Used to connect to a microphone. IR LED These infrared LED’s are controlled by the illumination sensor. Illumination Sensor Detects incoming light to control the IR LED. 22_ overview...
  • Page 23 at a GLance (Snv-7084r) appearance Item Description Dome cover Case cover used to protect the lens and the main unit. Camera Case Housing part that covers the camera body. English _23...
  • Page 24 overview components 24_ overview...
  • Page 25 Item Description Illumination Sensor Detects incoming light to control the IR LED. Lens Lens for the camera. IR LED These infrared LED’s are controlled by the illumination sensor. Power Port Port for power terminal block. Output port for test monitoring the video output. Use the test monitor cable Test Monitor Out to connect to a mobile display and check the test video.
  • Page 26 & connection inStaLLation (SnD-7084r) precautions before installation Ensure you read out the following instructions before installing the camera: • It must be installed on the area (ceiling or wall) that can withstand 5 times the weight of the camera including the installation bracket.
  • Page 27 installation 1. Attach the installation template to the selected area and punch 3 holes as shown in the figure. 2. Use the 2 supplied screws to fix the camera to the 2 punched holes. Set the <FRONT TOP> mark imprinted on the camera to face the direction of camera monitoring.
  • Page 28 installation & connection inStaLLation (Sno-7084r) This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed. precautions before installation Ensure you read out the following instructions before installing the camera: •...

  • Page 29: Outdoor Installation

    outdoor installation When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable connected to the outside. 1. Connect the power, I/O, BNC, and LAN Camera System cables.

  • Page 30: Installation (Snv-7084R

    installation & connection inStaLLation (Snv-7084r) This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed. precautions before installation Ensure you read out the following instructions before installing the camera: •...
  • Page 31 installation 1. Using the template provided as an accessory, drill the screw installation hole(diameter of 6mm, minimal depth of 55mm) and firmly insert the plastic anchor provided as an accessory to the end. 2. Fit the bottom hole to the anchor hole and insert and fix the taping screw (M4.5xL50).
  • Page 32 installation & connection connecting waterproof power cable and Lan cable 1. Remove the dome cover and the case. 2. Pull out the long projected part of the rubber plug on the bottom and remove it as shown in the figure. Use an appropriate cable bush for the LAN cable to be connected.
  • Page 33 5. Insert the LAN cable into the large hole made by removing the projected part of the rubber plug in step 2 above. 6. Remove the sheath with a cable cutter, and align the cables. 7. Connect the LAN cable with a LAN connector, and insert it into the LAN tool.
  • Page 34 installation & connection connecting alarm cable 1. Remove the dome cover and the case. 2. Pull out the rubber plug on the bottom as shown in the figure. 3. Insert the alarm cable into the hole made by removing the rubber plug in step 2, and connect the cable with the PCB alarm terminal.
  • Page 35 attaching to the unbundled adapter Choose and purchase a necessary one of the following options (unbundled) that is suitable to the installation site or for your convenience. 1. Remove the dome cover from the case by referring to the “Disassembling” section. (page 30) 2.

  • Page 36: Optional Accessories For Installation

    SBP-301HM3 : SNV-7084R) This adaptor is used when installing the dome camera onto a wall. 2. CEILING MOUNT ADAPTOR(SBP-300CM)/ HANGING MOUNT(SBP-301HM2 : SND-7084R, SBP-301HM3 : SNV-7084R) This adaptor is used when installing the dome camera on a concrete ceiling. 36_ installation & connection...
  • Page 37 3. POLE MOUNT ADAPTOR(SBP-300PM) This is an adaptor for WALL MOUNT ADAPTOR (SBP-300WM or SBP-300WM1) installation on a pole whose diameter is bigger than 80mm. 4. CORNER MOUNT ADAPTOR (SBP-300KM) This is an adaptor for WALL MOUNT ADAPTOR (SBP-300WM or SBP-300WM1) installation on the corner of wall joint.
  • Page 38 2. Set the horizontal angle so that the image is not reversed. In case of the SND-7084R model, rotate the lens with the cover on the rear of the lens unit. 3. Adjust the tilt angle so that the camera faces toward the monitoring object.

  • Page 39: Inserting/Removing A Micro Sd

    SD memory carD (SnD-7084r/Snv-7084r) Disconnect the power cable from the camera before inserting the Micro SD memory card. Do not insert the Micro SD memory card while it’s upside down by force. Otherwise, it may damage the Micro SD memory card.
  • Page 40 Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card from the slot. <SND-7084R> <SNV-7084R> Pressing too hard on the Micro SD memory card can cause the card to shoot out uncontrollably from the slot when released.
  • Page 41 memory carD information (not incLuDeD) what is a memory card? The memory card is an external data storage device that has been developed to offer an entirely new way to record and share video, audio, and text data using digital devices. Selecting a memory card that’s suitable for you Your camera supports Micro SD/SDHC/SDXC memory cards.

  • Page 42: Connecting With Other Device

    & connection connectinG witH otHer Device Monitor to install Ethernet Power <SND-7084R> Power CAUTION: Be ware of the Rated Voltage and Polarity of the power connection. Ethernet Monitor to install <SNO-7084R> 42_ installation & connection...
  • Page 43 Monitor to install Ethernet Power <SNV-7084R> The CVBS out terminal of the product is provided for easier installation, and is not recommended for monitoring purposes. English _43...

  • Page 44: Ethernet Connection

    & connection ethernet connection Connect the Ethernet cable to the local network or to the Internet. power Supply (SnD-7084r) Use the screwdriver to connect each line (+, –) of the power cable to the corresponding power port of the camera.

  • Page 45: English

    Specification for each model in case of Dc 12v input: Wire Type (AWG) SND-7084R Cable Length (Max.) SNO-7084R SNV-7084R in case of ac 24v input: Wire Type (AWG) SNO-7084R Cable Length (Max.) SNV-7084R network cable Specification Item Contents...
  • Page 46 installation & connection connecting to audio input/output Speaker Microphone Network Amp Microphone Speaker Microphone CAUTION: Be ware of the Rated Voltage and Polarity of the power connection. Speaker Microphone Microphone Speaker Speaker 46_ installation & connection...
  • Page 47 As a microphone is built in, you can use the built-in microphone instead of an external one. (It is applicable only to the SND-7084R model.) 2. Connect the AUDIO OUT port of the camera with the speaker or LINE IN port of the amplifier that the speaker is connected to.
  • Page 48 & connection connecting to the i/o port box Connect the Alarm I/O cable to the corresponding port of the port box. Sensor Alarm (Warning lamp) <SND-7084R> CAUTION: Be ware of the Rated Voltage and Polarity of the power connection. Alarm...
  • Page 49 Sensor Alarm (Warning lamp) <SNV-7084R> • ALARM-IN : Used to connect the alarm input sensor or external day/night sensor. • ALARM-OUT : Used to connect the alarm output signal. • GND : Common terminal to connect alarm signals. If devices (e.g., flashing light and siren) that exceed the voltage and current specifications are connected by using the open collector method, it may cause malfunction.
  • Page 50 installation & connection to connect the external sensor Connect one strand of each signal line (2-strand) of the sensors to the [aLarm in] port, and connect the other strand to the [GnD] port. alarm in wiring Diagram External Inside of the camera VCC_3.3V connection RESISTOR...

  • Page 51: Connecting The Camera Directly To Local Area

    network connection and setup You can set up the network settings according to your network configurations. connectinG tHe camera DirectLy to LocaL area networKinG connecting to the camera from a local pc in the Lan 1. Launch an Internet browser on the local PC. 2.

  • Page 52: Connecting The Camera Directly To A Dhcp

    network connection and setup connectinG tHe camera DirectLy to a DHcp BaSeD DSL/caBLe moDem INTERNET DSL/Cable Modem Camera External Remote PC DDNS Server (Data Center, KOREA) 1. Connect the user PC directly with the network camera. 2. Run the IP Installer and change the IP address of the camera so that you can use the web browser on your desktop to connect to the Internet.
  • Page 53 connectinG tHe camera DirectLy to a pppoe moDem INTERNET PPPoE Modem Camera External Remote PC DDNS Server (Data Center, KOREA) 1. Connect the user PC directly with the network camera. 2. Run the IP Installer and change the IP address of the camera so that you can use the web browser on your desktop to connect to the Internet.

  • Page 54: Broadband Router With The

    network connection and setup connectinG tHe camera to a BroaDBanD router witH tHe pppoe/caBLe moDem This is for a small network environment such as homes, SOHO and ordinary shops. Camera INTERNET PPPoE or PPPoE or Broadband Cable Modem Cable Modem Camera Router External Remote PC...

  • Page 55: Buttons Used In Ip Installer

    ButtonS uSeD in ip inStaLLer e f g Item Description Model name of the connected camera. Device Name Click the column to sort the list by model name. However, search will be stopped if clicked during the search. Alias This function is not currently implemented. Displays either <Static>, <Dynamic>...

  • Page 56: Static Ip Setup

    Exits the IP Installer program. For the IP installer, use only the installer version provided in the installation CD or use the latest one if available. You can download the latest version from the Samsung web site (www.samsungcctv.com). Static ip Setup manual network Setup Run <ip installer_v2.XX.exe>...
  • Page 57 3. In the <address> pane, provide the necessary information. • MAC (Ethernet) Address : The MAC address imprinted on the camera label is automatically displayed and requires no user setting. IP related parameters can be set only when DHCP is not checked. if not using a Broadband router For setting <ip address>, <Subnet mask>, and <Gateway>, contact your network administrator.
  • Page 58 network connection and setup if using a Broadband router • IP Address : Enter an address falling in the IP range provided by the Broadband Router. ex) 192.168.1.2~254, 192.168.0.2~254, 192.168.XXX.2~254 • Subnet Mask : The <Subnet mask> of the Broadband Router will be the <Subnet mask>...
  • Page 59 auto network Setup Run <ip installer_v2.XX.exe> to display the camera search list. At the initial startup, both [auto Set] and [manual Set] will be grayed out. For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not support this function.

  • Page 60: Dynamic Ip Setup

    network connection and setup Dynamic ip Setup Dynamic ip environment Setup • Example of the Dynamic IP environment - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server - If connecting the camera directly to modem using the DHCP protocols - If IPs are assigned by the internal DHCP server via the LAN checking the Dynamic ip 1.

  • Page 61: Port Range Forward (Port Mapping

    port ranGe forwarD (port mappinG) Setup If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the Broadband Router so that a remote PC can access the camera in it. manual port range forwarding 1.
  • Page 62 Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function. After connecting the network camera, set <Quick connect> of <Samsung DDNS> to <On> in the “Setup  Network  DDNS” menu.

  • Page 63: Connecting To The Camera From A Shared Local Pc

    connectinG to tHe camera from a SHareD LocaL pc 1. Run the IP Installer. It will scan for connected cameras and display them as a list. 2. Double-click a camera to access. The Internet browser starts and connects to the camera. Access to the camera can also be gained by typing the camera's IP address in the address bar of the Internet browser.

  • Page 64: Connecting To The Camera

    web viewer connectinG to tHe camera normally, you would 1. Launch the Internet browser. 2. Type the IP address of the camera in the address bar. ex) • IP address (IPv4) : 192.168.1.100  http://192.168.1.100 - the Login dialog should appear. •...
  • Page 65 To register your device to the <DDnS> server, visit www.samsungipolis.com and register your device first, and then set the Web Viewer’s <network> - <DDnS> to <Samsung DDnS>, as well as providing <product iD> that had been used for DDNS registration.

  • Page 66: Password Setting

    web viewer paSSworD SettinG When you access the product for the first time, you must register the login password. When the “password change” window appears, enter the new password. A new password should be eight to fifteen letters long and a combination of at least two of uppercase/lowercase alphabets, numbers and special characters.

  • Page 67: Installing Silverlight Runtime

    inStaLLinG SiLverLiGHt runtime If your PC has not installed Silverlight Runtime or has just installed an old runtime version, you will be redirected to the Silverlight Runtime installation page automatically when accessing the web viewer. to install on windows oS 1.
  • Page 68 web viewer to install on mac oS 1. Run the file trailing with “.dmg”. 2. Run the install package file automatically created, ending with “.pkg”. 3. Click <continue>. 4. Select your language on the language selection screen, and click <continue>. 68_ web viewer...
  • Page 69 5. Click <agree>. 6. Click <install>. 7. Enter the password of the account currently logged in, and click <install Software> and continue. 8. Once completed, click <close>. English _69...
  • Page 70 web viewer inStaLLinG Stw webviewer pLuGin If connecting to a camera for the first time, you will see the installation message. Then, install the required WebViewer Plugin to access the camera and control the video from it in real time. 1.
  • Page 71 5. Click [oK]. The old version of Web Viewer Plug-in is deleted. 6. Click [install] to begin installation of the Web Viewer Plug-in. 7. Click [finish]. STW Web Viewer Plug-in installation is completed. In your internet explorer, if you need to move to the installation screen after installing the STW webviewer plugin, check whether webviewer_...

  • Page 72: Using The Live Screen

    web viewer uSinG tHe Live Screen Item Description Monitoring Move to the monitoring screen. Move to the screen where you can search for the video recording saved in your Micro Playback SD memory card or NAS. Setup Move to the Setup screen. Displays the Live video on the screen.
  • Page 73 Item Description Full Screen Switch the current video to the maximum size of the monitor. Capture Saves the snapshot as an image file in the .bmp or .jpg format. Enable Audio and Microphone are control the Audio volume. Audio/Microphone Control Only the Audio volume can be controlled.
  • Page 74 web viewer to fit the full screen 1. Click the [full Screen ( )] button. 2. This will fit the Viewer to the full screen. 3. To exit the full screen mode, press [esc] on the keyboard. For the Internet Explorer and Google Chrome browser, you can switch to the full screen. to use audio 1.
  • Page 75 pLayinG tHe recorDeD viDeo Before you can play the video, you must configure the record settings. For details on record settings, refer to “Storage”. (page 113) name of event search screen and its function Item Description Set the search date and time range for data saved in your Micro SD memory Search range setting card or NAS.
  • Page 76 web viewer to play the content after searching by event 1. Click the [playback ( )] button. 2. Specify the start time and end time of your search. 3. Select an event type for your search within the specified period. 4.
  • Page 77 name of time search screen and its function Item Description Time bar The section in the specific period is played by moving the time bar. Set the search date using the calendar. Search date setting If there is data saved in your Micro SD memory card or NAS on the day, it is marked as a box on the calendar.
  • Page 78 web viewer Item Description Video information Time data of the replayed video is displayed on the screen. Set the desired date to make a backup copy of video data saved in your Backup Micro SD memory card or NAS. Can be set as up to 5 minutes. to play after searching by time 1.
  • Page 79 6. Move [time bar ( )] to a desired time point of the video before playing it. The time containing a normal recoding file will be highlighted in blue; the time with the event recording will be highlighted in red. to back up the searched video 1.
  • Page 80 web viewer to play an avi file (1) micro SD memory card 1. Separate the micro SD memory card from the camera. Before separating the micro SD memory card, set the <Device> to <Off> in the “Setup  Event  Storage” menu. 2.
  • Page 81 (2) naS (network-attached Storage) 1. In Windows browser, use \\<ip address>\ to access. ex)\\192.168.20.31\defaultfolder\ch01\ img\2013_07_02\AVI 2. Go to <computer>  <network drive connection>  Enter 1. 3. Connected to the NAS. The directory structure is same as the directory structure for a Micro SD memory card.

  • Page 82: Video Profile

    setup screen Setup You can configure the video & audio, network, event and system settings of the camera in the network. 1. In the Live screen, click [ Setup ( ) ] . 2. The Setup screen appears. Microsoft Silverlight 5.0 or higher is required to be installed on the PC for setup pages that provide preview video.
  • Page 83 4. Set the <video profile connection policy>. • Keep connection when profile setting is changed : Changing profile properties that is used by existing connection does not affect such connection and remains with old profile setup. If not selected, changing a profile used by an existing connection resets such connection.
  • Page 84 setup screen • ATC sensitivity : Affect the transfer rate according to the variance in the network bandwidth. The transfer rate will be adjusted to the fastest if the bandwidth is <very high>, and adjusted to the latest if the bandwidth is <very low>. •...
  • Page 85 to add/change the video profile The profile setup can be added or modified to accommodate various profiles depending on the recording conditions. 1. Select one from the <video profile> options. 2. Provide the name and select a codec. 3. Specify the conditions under which the codec will be applied. 4.
  • Page 86 setup screen • Encoding priority : You can set the priority of video transmission to frame rate or compression. • GOV length : It specifies the distance (in terms of number of frames) between two consecutive I-Frames in a video sequence when H.264 codec was selected. (One I-Frame + 0~Several P-Frames) •...
  • Page 87 to use crop encoding 1. Select <use>. 2. Click <Set area>. The Crop Encoding Area Setup window will pop up. 3. Select <ratio>. • Ratio: It sets up the aspect ratio of the user specified area. - 16:9 : The aspect ratio shall be set to 16:9 as close as to the user specified area.

  • Page 88: Video Setup

    setup screen video setup 1. From the Setup menu, select the <video & audio ( )> tab. 2. Click <video setup>. 3. Select a <video source> mode. • Flip mode : Turn upside down the image that is captured by the camera.

  • Page 89: Audio Setup

    - Internal microphone : Microphone that is built-in in the camera. (It is applicable only to the SND-7084R model.) - External microphone : 3.5 pi(¢) jack type external MIC. • Apply power to Ext. Mic. : If the external microphone connected has no separate power supply, check this option to set camera to supply power to the connected external microphone.

  • Page 90: Camera Setup

    setup screen camera setup You can change the camera settings according to the environment where the camera is located. 1. From the Setup menu, select the <video & audio ( )> tab. 2. Click <camera setup>. 3. Configure the settings as necessary of : Image preset, Sensor, SSDR, White balance, Back light, Exposure, Day/ Night, Special, OSD, IR...
  • Page 91 4. Set the <mode>. • Definition focus : This is the factory setting for your camera. Select it for video recording, focusing on reproducibility. • Motion focus : Record a moving object clearly. If there are many moving objects, such as on a road or in a crowded place like a museum, select this option. Noise level can increase in a low illumination environment, and sensitivity can go down.
  • Page 92 If the sensor mode is set to 50 fps or 60 fps, the <Back light> mode cannot be set to <WDR>. to Set SSDr (Samsung Super Dynamic range) In a scene where the difference between bright and dark is severe, you can increase the brightness of the dark area alone to regulate the overall brightness.
  • Page 93 to Set white Balance You can correct the image colors based on white under any lighting conditions. 1. Select <white balance>. 2. Select <mode>. • ATW : Corrects the colors of the camera video automatically. • Manual : You can adjust the red and blue gains of the camera video manually.
  • Page 94 setup screen to Set BLc You can specify a desired area on the video manually and set the area to be displayed more clearly. 1. Select <Back light>. 2. Set <mode> to <BLc>. 3. Set <BLc level>. You can change the level to adjust the brightness of the monitoring area.
  • Page 95 to Set exposure You can adjust the exposure level of the camera. 1. Select <exposure>. 2. Select each item and set it properly. • Brightness : Adjust the screen brightness. • Minimum shutter : The limit of the longest exposure time. Shutter is the mode to set up the range of the sensor exposure time which will specify the upper and lower limits for the electronic shutter movement.
  • Page 96 setup screen to Set Day/night 1. Select <Day/night>. 2. Select each item and set it properly. • Mode: Mode is used to adjust the color of Color or Black and White. - Color : The video is always output in color.
  • Page 97 to Setup Special 1. Select <Special>. 2. Select each item and set it properly. • Sharpness mode : Adjust the overall sharpness of the image. If selecting <on>, you can adjust the sharpness of the image. • Sharpness level : The higher the level is, the sharper and clearer the outline of the image becomes.
  • Page 98 setup screen to Set oSD 1. Select <oSD>. 2. Select each item and set it properly. • Title overlay : It specifies if the camera name shall be displayed on the screen. • Camera title : It specifies the name of the camera to be displayed on the screen.
  • Page 99 Smart codec setup Set a desired area of the video incoming from the camera as ROI area and specify the detection sensitivity for the area. 1. From the Setup menu, select the <video & audio ( )> tab. 2. Click <Smart codec setup>. 3.
  • Page 100 setup screen focus setup You can adjust the focus and zoom ratio of video image. 1. From the Setup menu, select the <video & audio ( )> tab. 2. Click <focus setup>. 3. Set the focus and zoom. • Focus : Manually adjusts the lens focus (Far ...

  • Page 101: Network Setup

    networK Setup interface 1. From the Setup menu, select the <network ( )> tab. 2. Click <interface>. 3. Set the <interface> and <ipv6 setup> as necessary. • IP type : Select an IP connection type. - Manual : Specify the IP address, Subnet mask, Gateway, DNS1, and DNS2.
  • Page 102 The available setting range is 1024~65535. (For security reasons, in your Safari or Google Chrome browser, you may not use 65535 as your HTTPS port.) • Device port : Set a port used to transfer video signals with the Samsung protocols.
  • Page 103 • Samsung DDNS : Select this if you use the DDNS server provided by Samsung Techwin. - Product ID : Enter the product ID that is registered with the Samsung DDNS service. - Quick connect : It sets port forwarding automatically when used with a UPnP (Universal Plug and Play) supporting router.
  • Page 104 DDnS to register your product with the Samsung DDnS 1. Visit the iPOLiS web site (www.samsungipolis.com) and sign in with a registered account. 2. From the top menu bar, select <DDnS Service> - <my DDnS>. 3. Click [proDuct reGiStration].
  • Page 105 Samsung DDnS in camera setup 1. From the DDNS setup page, set <DDnS> to <Samsung DDnS>. 2. Provide the <product iD> that you registered product ID with the DDNS site. 3. Click [apply ( When the connection is successfully made, you will see the message of <(Success)>...
  • Page 106 setup screen ip filtering You can create a list of IPs that you want to grant or deny access to them. 1. From the Setup menu, select the <network ( )> tab. 2. Click <ip filtering>. 3. Select <filtering type>. •...
  • Page 107 You can select a secure connection system or install the public certificate for this purpose. 1. From the Setup menu, select the <network ( )> tab. 2. Click <SSL>. 3. Select a secure connection system. If you want to use HTTPS mode for camera access, you need to enter the camera IP address as https://<Camera_IP>:HTTPS.
  • Page 108 setup screen 802.1x When connecting network, you can choose whether using 802.1x protocol, and then install the certification. 1. From the Setup menu, select the <network ( )> tab. 2. Click <802.1x>. 3. Set the <ieee 802.1x setting(eapoL using eap-tLS)>. •...
  • Page 109 You can specify the priority to secure a stable transfer rate for a specific IP. 1. From the Setup menu, select the <network ( )> tab. 2. Click <QoS>. 3. Click the [add ( )] button. The IP list will be created. 4.
  • Page 110 setup screen • Enable SNMP Trap : SNMP trap is used to send important events and conditions to the Admin. - Community : Enter the trap community name to receive messages. - IP address : Enter the IP address to which messages will be sent. - Authentication failure : It specifies whether an event shall be generated when the community information is invalid.
  • Page 111 Disable for UPnP Discovery. • Friendly name : Display the camera name. Friendly name is displayed in the format of SAMSUNG-<Model Name>-<MAC Address>. In the Windows operating system which basically supports UPnP, the cameras connected to the network are displayed.

  • Page 112: Event Setup

    setup screen event Setup ftp / e-mail You can configure the FTP/E-mail server settings so that you can transfer the images taken with camera to your PC if an event occurs. 1. From the Setup menu, select the <event ( )>...
  • Page 113 • E-mail configuration - Server address : Enter the IP address of the email server that you transfer the alarm or event images to. - Use authentication : Select whether to use authorization. - Use SSL : Specify the use of SSL. - ID : Enter the user ID for logging into the email server.
  • Page 114 If you insert a SD card saved in another saving file type (AVI/STW), you will need to format it before use. - STW : It is Samsung Techwin’s unique file format. - AVI : It is the conventional avi format.
  • Page 115 4. Specify the <normal record setup>. • Always : Always save recorded video in the Micro SD memory card. If set to Always, the activation time cannot be changed. • Only scheduled time : Records only on the specified time of the specified day of week. •...
  • Page 116 setup screen Confirm that the NAS IP address and the camera IP address are in the same format. ex) The NAS & camera subnet mask initial value is 255.255.255.0. If the IP address is 192.168.20.32 then the NAS IP address should be in the range of 192.168.20.1~192.168.20.255.
  • Page 117 naS (network attached Storage) guide When you use the NAS, you might be unable to save data due to temporary network disconnections. If the setting allows a Micro SD memory card and the NAS to be simultaneously connected for use, the higher priority for recording goes to the NAS. If you activate Overwrite to the NAS by setting it to <On>...
  • Page 118 setup screen 3. Click the <Shared folder> in the file sharing and privilege menu. 4. Click the [create] button. 5. After entering the shared folder name(ID), click the [oK] button to create a shared folder. In this example, the shared folder name is [testDirectory].
  • Page 119 8. After clicking the [create] button, enter name(ID) and password. In this example, name(ID) is set to [testiD] and password is also set to [testiD]. According to the NAS recommendations, when you use Netgear’s NAS equipment, do not allocate the capacity for use. 9.

  • Page 120: Alarm Input

    setup screen alarm input You can set the alarm input type, activation time, and operation mode. 1. From the Setup menu, select the <event ( )> tab. 2. Click <event setup>. 3. Select <alarm input> from <event action setup>. 4. Set whether or not to <enable>. 5.

  • Page 121: Time Schedule

    7. Specify an operation that will perform if an alarm occurs. • FTP : Specify the use of FTP transfer in the alarm input setup. • E-mail : Specify the use of email transfer in the alarm input setup. • Record : Specify the use of recording in the alarm input setup. •...

  • Page 122: Tampering Detection

    setup screen tampering detection You can set to detect tampering attempts and trigger events, such as sudden change of camera’s framing direction, blocked lens and other overall change of scenes from the video. 1. From the Setup menu, select the <event ( )>...
  • Page 123 motion detection / video analytics Events of motion detection and video analysis can be set to trigger event signal output. 1. From the Setup menu, select the <event ( )> tab. 2. Click <event setup >. 3. Select <motion detection / video analytics>...
  • Page 124 setup screen Before using, set the minimum and maximum motion sizes to suit desired motion range to be detected. Detected size of an object may have difference with the actual size according to its shape. Up to 16 objects from the top side of the screen can be displayed. If camera is capturing a close object, the video analysis capability may degrade.
  • Page 125 to use motion detection It detects a motion that meets all conditions specified by sensitivity, size and area. 1. Select a motion detection mode. 2. Select <Sensitivity> tab to set the sensitivity level. You can set the sensor’s sensitivity to detect a motion out of the background from the monitoring video.
  • Page 126 setup screen 4. Select <area> tab. You can specify an area on the screen to include or exclude the area to/from detection. You can specify up to 4 areas. • Detection area : Sets the entire screen as excluded from detection, and adds specified area as motion detection area.
  • Page 127 to use video analytics It detects event that meets all conditions specified by sensitivity, size and area and the event condition rules. 1. Select the video analysis mode. 2. Set <Sensitivity>, <Size> and <area>. For further details on settings, refer to “to use motion detection”.
  • Page 128 setup screen to set the video analysis rules ` passing 1. Set the type to <passing>. 2. On the screen, click on preferred starting and ending point of the virtual line, then a popup window appears. 3. Select the desired rule: •...
  • Page 129 ` appearing (Disappearing) 1. Set the analysis type to <appearing (Disappearing)>. 2. Select the desired event rule: • Defined area based rules : It detects event of appearing object that appears in the area and remaining for a certain time period while not passing through the area borders, and opposite case of disappearing of objects existed in the area.

  • Page 130: Face Detection

    setup screen face detection You can set to detect recognized face and trigger an event accordingly. 1. From the Setup menu, select the <event ( )> tab. 2. Click <event setup>. 3. Select <face detection> from < event action setup>. 4.

  • Page 131: Audio Detection

    audio detection You can set to detect sound over the specified level and trigger an event accordingly. 1. From the Setup menu, select the <event ( )> tab. 2. Click <event setup>. 3. Select <audio detection> from <event action setup>. 4.
  • Page 132 setup screen network disconnection You can receive and save events of a physically disconnected network. 1. From the Setup menu, select the <event ( )> tab. 2. Click <event setup>. 3. Select <network disconnection> from <event action setup>. 4. Set whether or not to <enable>. 5.
  • Page 133 alarm output setup 1. From the Setup menu, select the <event ( )> tab. 2. Click <alarm output setup>. 3. Set the camera’s type of alarm output. If you change the alarm output type, the alarm out button on the monitoring page and alarm output type displayed on Event Setup page will be changed accordingly.

  • Page 134: System Setup

    setup screen SyStem Setup product information 1. From the Setup menu, select the <System ( )> tab. 2. Click <product information>. 3. Check the camera information, or provide details according to your network environment. • Model : Model name of the product. •...
  • Page 135 Date & time 1. From the Setup menu, select the <System ( )> tab. 2. Click <Date & time>. 3. Specify the time and date that will be applied to the camera. • Current system time : Displays the current time settings of your system. •...
  • Page 136 setup screen user 1. From the Setup menu, select the <System ( )> tab. 2. Click <user>. 3. Provide the necessary user information. • Administrator password change : Change the password for the administrator. For the security purposes, you are recommended to use a combination of numbers, alphabets uppercase and lowercase and special characters for...
  • Page 137 If the existing password is not matched, when you change the admin password, you cannot change the password. After changing your password, if there is a camera connected to a CMS or NVR client, then you need to re-register it with the newly changed password. If the camera is still connected with the same password, then the account may be locked because a client uses the previous password.
  • Page 138 setup screen upgrade / reboot 1. From the Setup menu, select the <System ( )> tab. 2. Click <upgrade / reboot>. 3. Select a desired item and set it appropriately. • Upgrade : Performs upgrading the system. • Factory default : Resets the system to the factory default.
  • Page 139 If you forcibly terminate the upgrade process, upgrade will not be completed properly. During restarting the system, accessing with web viewer will not be made. You can download the latest version from the Samsung web site (www.samsungcctv.com). to back up the current settings 1.
  • Page 140 setup screen You can check the system log or event log. 1. From the Setup menu, select the <System ( )> tab. 2. Click <Log>. 3. Select a log type. • System : You can check the system logs where any system changes are recorded including the time information.
  • Page 141 profile access You can check the video profile of the camera being connected now. 1. From the Setup menu, select the <System ( )> tab. 2. Click <profile access>. • Profile access : Show the information of the newly added profile. - Profile : Show the information of the newly added codec.
  • Page 142 setup screen open SDK A user can install an application on their camera to execute additional functions. 1. From the Setup menu, select the <System ( )> tab. 2. Click <open SDK>. 3. Click the [Browse ( button to select the *.cap file from the user folder.
  • Page 143 Specification Description Items SND-7084R SNO-7084R SNV-7084R Imaging Device 1/2.8” PS Exmor 3.20M CMOS Total Pixels 2,065(H) x 1,565(V) Effective Pixels 2,065(H) x 1,553(V) Scanning System Progressive Video Min. Illumination Color : 0.1 Lux (F1.2, 50IRE), B/W : 0 Lux (IR LED on)
  • Page 144 Auto (ICR) / Color / B/W / External / Schedule Backlight Off / BLC / WDR Compensation Wide Dynamic Range Max. 120dB Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On) Digital Noise Reduction SSNRIII (2D+3D Noise Filter) (Off / On) Digital Image Off / On Operational Stabilization...
  • Page 145 Description Items SND-7084R SNO-7084R SNV-7084R Alarm I/O Input 1ea / Output 1ea Selectable (Mic IN/Line IN/Built-in Mic), Selectable (Mic IN/Line IN) Supply voltage: Audio In Supply voltage: 2.5VDC(4mA), Input impedance: 2.5VDC(4mA), Input approx. 2K Ohm impedance: approx. 2K Operational Audio out...
  • Page 146 Description Items SND-7084R SNO-7084R SNV-7084R [H.264] 3M Mode : Max 30fps@2048x1536 / 1920x1080 / 1600x1200 / 1280x1024 / 1280x960 / 1280x720 / 1024x768 / 800x600 / 800x450 / 640x480 / 640x360 / 320x240 / 320x180 2M Mode : Max 60fps@1920x1080 / 1280x1024 / 1280x960 /...
  • Page 147 Description Items SND-7084R SNO-7084R SNV-7084R HTTPS(SSL) Login Authentication Digest Login Authentication Security IP Address Filtering User access Log 802.1x Authentication Streaming Method Unicast / Multicast Max. User Access 15 users at Unicast Mode Micro SD/SDHC/SDXC Micro SD/SDHC/SDXC Micro SD/SDHC/SDXC (4GB included)
  • Page 148 Description Items SND-7084R SNO-7084R SNV-7084R AC24V : -50°C ~ +55°C AC24V : -40°C ~ +55°C (-58°F ~ +131°F) / Less (-40°F ~ +131°F) / Less -10°C ~ +55°C than 90% RH than 90% RH Operating Temperature (+14°F ~ +131°F) / DC12V, PoE (IEEE 802.3af) :...

  • Page 149: Product Overview

    SnD-7084r Unit : mm (inch) Ø 132.1 (5.2") Ø 97 (3.82") English _149...
  • Page 150 appendix Sno-7084r Unit : mm (inch) 333.2 (13.12") 200 (7.87") 178 (7.01") 134.6 (5.30") 321.6 (12.31") Ø 82 (3.23") (BoDy) 3- Ø 5.5 HoLeS Ø 70 (2.76") 82.2 90.4 (3.56") 150_ appendix...
  • Page 151 Snv-7084r Unit : mm (inch) Ø 160 (6.3") Ø 100 (3.94") English _151...

  • Page 152: Troubleshooting

    appendix trouBLeSHootinG PROBLEM SOLUTION y Check to make sure that the camera’s Network settings are appropriate. y Check to make sure that all network cables have been connected properly. I can’t access the camera from a y If connected using DHCP, verify that the camera is able to acquire web browser.
  • Page 153 PROBLEM SOLUTION Can I define event rules even y Yes, it can be. You can set rules for events despite of the intelligent when I don’t use <Motion video analysis setting. detection / Video analytics>? No signal is found at the Alarm Output port even when an y Check alarm output port settings.
