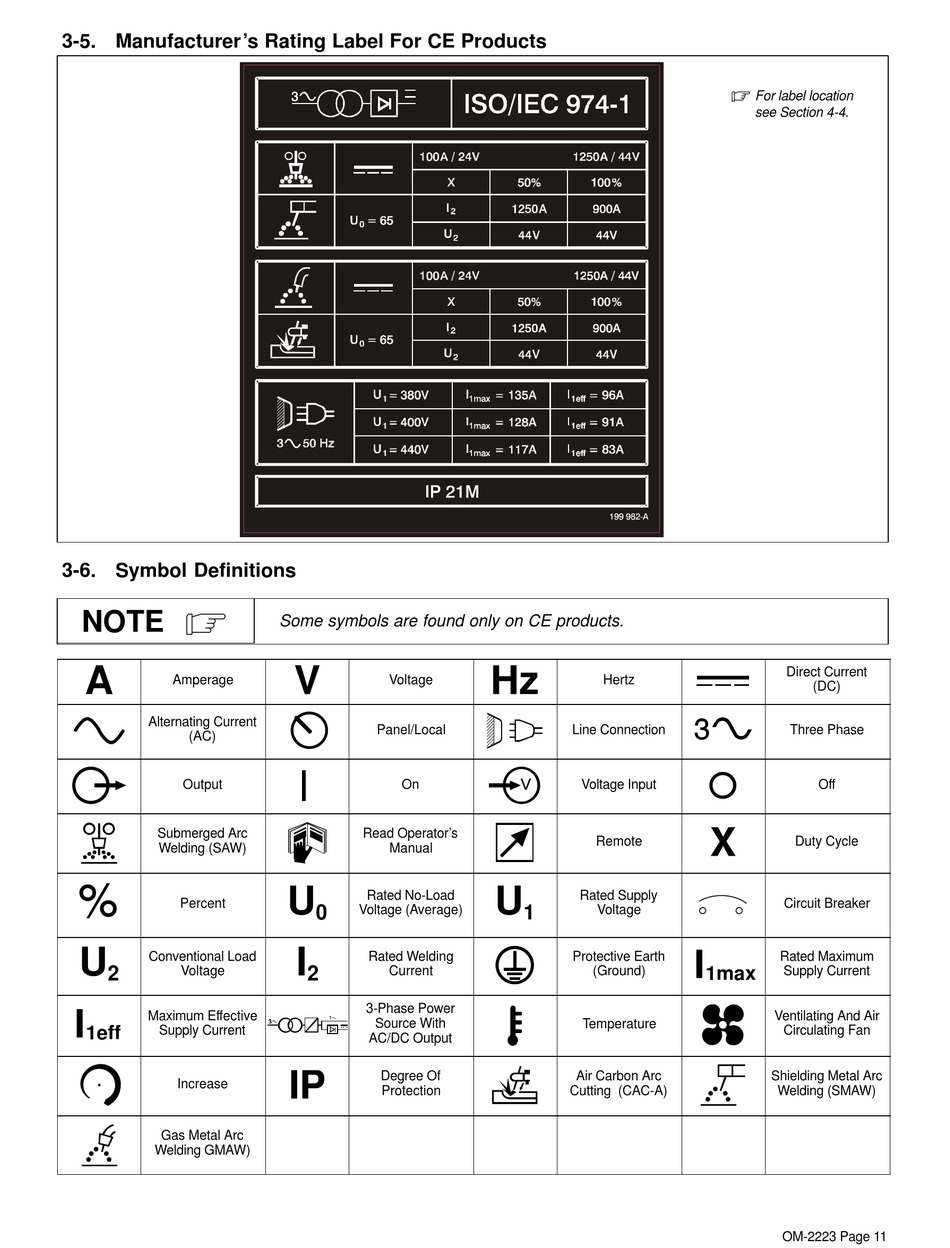

3-5. Manufacturer's Rating Label For CE Products

3-6. Symbol Definitions

NOTE
A
Amperage
Alternating Current
(AC)
Output
Submerged Arc
Welding (SAW)
Percent
U
Conventional Load
2
Voltage
I
Maximum Effective
1eff Supply Current
Increase
Gas Metal Arc
Welding GMAW)
Some symbols are found only on CE products.
V
Voltage
Panel/Local
On
Read Operator's
Manual
U
Rated No-Load
0
Voltage (Average)
I
Rated Welding
2
Current
3-Phase Power
Source With
AC/DC Output
IP
Degree Of
Protection
Hz
Hertz
Line Connection
Voltage Input
Remote
U
Rated Supply
1
Voltage
Protective Earth
(Ground)
Temperature
Air Carbon Arc
Cutting (CAC-A)
.
For label location
see Section 4-4.
Direct Current
(DC)
Three Phase
Off
X
Duty Cycle
Circuit Breaker
I
Rated Maximum
1max
Supply Current
Ventilating And Air
Circulating Fan
Shielding Metal Arc
Welding (SMAW)
OM-2223 Page 11
