Page 11
! This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. ! Children should be supervised to ensure that they do not play with the appliance.
Page 12

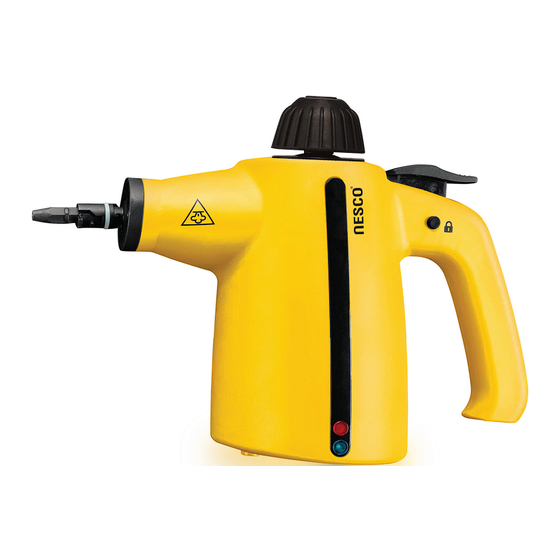

STEAM CLEANER 900 -1050 W 220-240 V 50 Hz Dear Customer Thank you for choosing a Nesco appliance. The experience, design, feature and technology of this appliance, as well as the strict quality controls used during manufacture, will provide full satisfaction for many years.
Page 13
TIP & SAFTY PRECAUTIONS - Do not use outdoors, for household use only. - Do not leave steam cleaner when plugged in Unplug the electrical cord when not in use and before servicing or cleaning. - Do not allow to be used as a toy. Close attention is necessary when used near children, pets and plants.
Page 14
Product features Sophisticated technologies Steam cleaner has the special patent which using hot and high-pressure steam for cleaning floors, windows and clothes. It can kill the bacteria and remove the dust. It has an automatic heating control system to continue producing steam for cleaning.
Page 15
INSTRUCTION FOR USE 1. Open the package, check all parts and manuals, and make sure no component is missing in the package. 2. Please read the manual before using the product. This product is only for household using. 3. Put the steam cleaner on the table, push down the safety cover, unscrew the safety cap counterclockwise, and then Install the funnel.
Round or bend sprayer installation Insert round or bend sprayer to the short sprayer directly; follow the instruction shows on figure ; adjust the direction of the sprayer. Glass brush installation Insert glass brush to the General spray nozzle and then trigger the big hook of glass brush , and push glass brush up and clutch it onto the body of the general spray nozzle.
TECHNICAL SPECIFICATION Rating of power supply : AC220-240 V Frequency : 50 Hz Current : 5 A Tank capacity : 350 ml. Max capacity of water cup : 175 ml. Rated power : 900-1050 W Steam pressure : 2.5-3.5 bar Injected steam capacity : 32g/min Temperature controller : 135 ºC Fuser functioning temperature : 169 ºC...
Page 18
WARRANT Warranty Boiler only -Damage or defective from manufacturer, dealer & service. -1 year warranty for house hold use only. Warranty is expired When (void of warranty) -Use according to this instruction carefully. WARRANTY IS EXPIRED WHEN (VOID OF WARRANT) -Damage or defect from misunderstand how to use or service from non authorized people.
