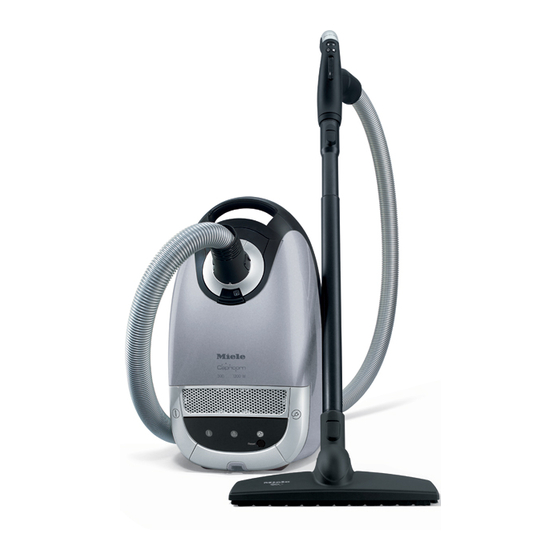

Miele operating instructions vacuum cleaner s 5980
Hide thumbs Also See for S 5980:
Table of Contents

Advertisement

Quick Links

See also: Operating Instructions Manual

Operating instructions

Vacuum cleaner

S 5980
G
These operating instructions apply to
standard model S 5980 and to
Special Edition models which are
distinguished by names rather than models.
M.-Nr. 06 829 980

Advertisement

Table of Contents
loading

Related Manuals for Miele S 5980

Summary of Contents for Miele S 5980

  • Page 1: Operating Instructions

    Operating instructions Vacuum cleaner S 5980 These operating instructions apply to standard model S 5980 and to Special Edition models which are distinguished by names rather than models. M.-Nr. 06 829 980...

  • Page 2: Table Of Contents

    Contents Caring for the environment Description of the appliance Warning and Safety instructions Preparing for use Accessories supplied Using the accessories supplied Mains cable ............16 Switching on and off .

  • Page 3: Caring For The Environment

    Disposal of packing material The transport and protective packing has been selected from materials which are environmentally friendly for disposal and can normally be recycled. Ensure that any plastic, wrappings, bags etc. are disposed of safely and kept out of the reach of babies and young children.

  • Page 4: Description Of The Appliance

    Description of the appliance...
  • Page 5 Electrobrush (either SEB 217 or SEB 236, depending on model) n Carrying handle o Electrobrush socket cover holder p Parking attachment (on both sides of vacuum cleaner) q Active HEPA filter r Foot switch for automatic cable rewind s Mains cable...

  • Page 6: Warning And Safety Instructions

    Correct use This vacuum cleaner must only be used for domestic household purposes to vacuum dry floor surfaces. Do not use on people or animals.

  • Page 7: Using Accessories

    Miele Electrobrush or Turbobrush, do not touch the rotating roller brush. The socket on the vacuum cleaner must only be used for the Miele Electrobrush specified for use with this appliance. The Miele Electrobrush is a motor driven accessory for use only with Miele vacuum cleaners.
  • Page 8 If the cable is damaged it should be replaced together with a complete cable rewind by a Miele ser- vice technician. Disposing of an old appliance When disposing of an old appliance, cut the cable off the appliance as close to the cleaner as possible and cut the plug off.

  • Page 9: Preparing For Use

    Attaching the electro suction hose ^ Insert the hose connector into the socket until it clicks into position. Removing the electro suction hose from the cleaner ^ Press the release buttons at the side of the hose connector, and lift the hose from the socket.
  • Page 10 Preparing for use Connecting the handle to the electro telescopic suction tube ^ Insert the handle into the electro telescopic suction tube until it clicks into position. ^ To release the handle from the suction tube, press the locking button (see arrow) and pull the handle away from the suction tube.

  • Page 11: Using The Electrobrush

    Using the Electrobrush Important: please observe the flooring manufacturer's cleaning and care instructions. The Electrobrush is particularly suitable for intensive vacuuming of carpets which are subject to hard wear. It is very effective at removing deep seated dirt and preventing areas of frequent use being trodden into a path.
  • Page 12 For hard flooring, such as stone and parquet, we recommend using one of the special Miele floor brushes (see "Optional accessories"). Connecting the electro telescopic suction tube and...

  • Page 13: Accessories Supplied

    The following accessories are supplied: a Crevice nozzle b Dusting brush with natural bristles c Upholstery nozzle d Filter grille You will need to fit the filter grille if you wish to replace the Active HEPA filter with a Super Air Clean filter (see "Maintenance and care - Replacing one type of exhaust filter with another").

  • Page 14: Using The Accessories Supplied

    Using the accessories supplied Crevice nozzle For cleaning in folds, crevices or corners. Dusting brush with natural bristles For cleaning skirting boards, ornate or carved articles, etc. The head of the dusting brush can be swivelled to attain the best cleaning position.
  • Page 15 Using the accessories supplied Upholstery nozzle For cleaning upholstery, mattresses, cushions, curtains, covers etc. Floorhead For general use and also for vacuuming the stairs.

  • Page 16: Use

    Mains cable Unwinding the cable ^ Pull out the mains cable to the required length (max. approx. 6.5 m). If vacuuming for longer than 30 minutes, the mains cable must be pulled out to its fullest extent. Otherwise there is a danger of overheating and damage.

  • Page 17: Adjusting The Suction Power

    ^ Press the stand-by button on the handle. The LED will go out, and the cleaner will switch itself on again at the last selected power level. The corresponding symbol in the handle will light up green. The lowest power level (Min.) can be directly selected by pressing -, and the highest power level (Max.) by pressing +.

  • Page 18: Switching The Electrobrush On And Off

    Switching the Electrobrush on and off The Electrobrush is switched on separately from the vacuum cleaner by pressing the j button on the handle. This means that you can switch the Electrobrush off during vacuuming and the vacuum cleaner will continue to operate using suction only.

  • Page 19: Setting Down, Transportation And Storage

    ^ Slot the floorhead into the parking attachment at the back of the vacuum cleaner. Switching on and off with the parking system The cleaner is automatically switched off when the floorhead is placed in the parking attachment.
  • Page 20 Setting down, transportation and storage Transportation and storage ^ Stand the vacuum cleaner upright when it is not being used and during storage. ^ Slot the floorhead downwards into one of the parking attachments on either side of the vacuum cleaner (the parking attachments cannot be used with the SEB 236 Electrobrush).

  • Page 21: Maintenance And Care

    Switch off at the wall socket and remove the plug. The Miele filter system consists of three filters which must be replaced from time to time to ensure that your vacuum cleaner performs efficiently.

  • Page 22: When To Change The Dustbag

    (see possible reasons for this below). Miele dustbags are disposable, and designed for single use only. Do not attempt to re-use them as suction would be reduced.

  • Page 23: Replacing The Dustbag

    Replacing the dustbag ^ Lift the release button for the dust compartment lid and raise the lid as far as it will go. ^ To remove the dustbag, hold the bag by the collar and pull it out of its holder.

  • Page 24: When To Change The Dust Compartment Filter (For Motor Protection)

    Replace this filter every time you start a new packet of dustbags. A dust compartment filter is supplied with every packet of Miele dustbags. How to change the dust compartment filter ^ Open the dust compartment lid. ^ Unclip the filter frame and remove the old filter.

  • Page 25: When To Change The Exhaust Filter

    You can replace the Active HEPA filter supplied with the vacuum cleaner with one of the other Miele exhaust filters if you wish (see "Replacing one type of exhaust filter with another").

  • Page 26: Replacing The Active Hepa Filter

    Resetting the exhaust filter change indicator The filter change indicator needs to be reset each time the filter is replaced. To do this the vacuum cleaner must be switched on. ^ Press the reset button. The exhaust filter change indicator goes out and resets to zero.

  • Page 27: Replacing One Type Of Exhaust Filter With Another

    The filter change indicator light is irrelevant if a Super Air Clean filter is being used, as long as it is replaced every time a new packet of Miele dustbags is started. The exhaust filter change indicator will go out when the reset button has been pressed.

  • Page 28: When To Change The Thread Lifters

    Press the bearing out, and remove. c Take out the roller. Remove any threads and hair, replace the roller and refit the bearing. Spare parts are available from your Miele dealer or from the Miele Spare Parts Department (see back cover for contact details).

  • Page 29: Cleaning And Care

    Cleaning and care E-Cloth A microfibre "E-Cloth" is available from the Miele UK Spare Parts Department, which is suitable for cleaning surfaces such as stainless steel, glass, plastic and chrome without the use of chemicals. It can be washed 300 times.

  • Page 30: Problem Solving Guide / After Sales Service

    After sales service In the event of a fault that you cannot easily remedy, please contact – your Miele dealer, or – the nearest Miele Service Department (see address on back page). Please note that telephone calls may be monitored and recorded for training purposes.

  • Page 31: Optional Accessories

    Turbobrush The Turbobrush is particularly suitable for vacuuming cut-pile carpeting, and is operated by the suction power of the vacuum cleaner. It has a rotating brush and is very effective at picking up thread, hairs and fluff. Hand-held Turbobrush The hand-held Turbobrush is intended...
  • Page 32 Optional accessories SBB 235-3 Hard floor brush This brush is designed for use on hard flooring such as tiled or stone floors. Parquet 3 floor brush This brush has natural bristles and is designed for use on parquet floors and other surfaces which are susceptible to scratching such as laminate flooring.
  • Page 33 Optional accessories Universal brush For dusting books, shelves, etc. Mattress nozzle For cleaning upholstery, mattresses, cushions, curtains, covers etc. Radiator brush (Can only be used if attached to the crevice nozzle). For cleaning radiators, narrow shelves and crevices.
  • Page 34 Optional accessories Crevice nozzle (300 mm) For cleaning in folds, crevices or corners. Micro Set This set is specially designed for cleaning small objects and difficult to reach areas (such as PC keyboards, stereo equipment, intricately carved furniture and ornaments, models etc). It consists of: –...

  • Page 35: Electrical Connection For The Uk

    (BS 7671 in the UK). The voltage and connected load are given on the data plate located underneath the vacuum cleaner. Please ensure that these match the household mains supply. The fuse rating is quoted on the plug.
  • Page 36 Alteration rights reserved / S 5980 / 2106 M.-Nr. 06 829 980 / 02 en - GB...
