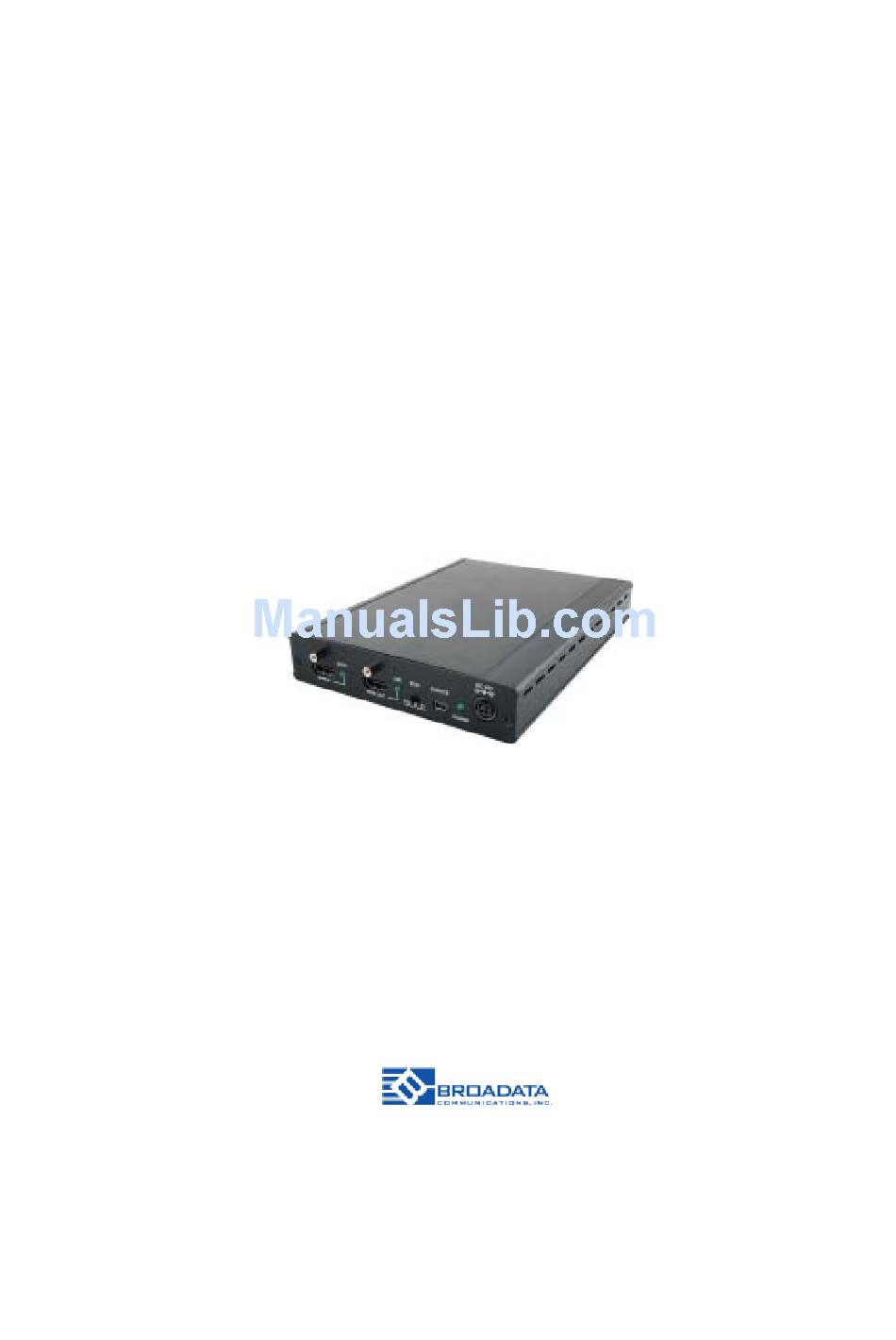

- Page 1 LBC-SPH4-1HB3-EIR RIDGE RANSMISSION YSTEM BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2013 Broadata Communications, Inc.
- Page 2 LBC-SPH4-1HB3-EIR User’s Manual Link Bridge HDBaseT 3x Transmission System SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATIONS PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
4.2 TROUBLESHOOTING ........... 11 5.0 SPECIFICATIONS ............13 6.0 SERVICE PROCEDURE ..........14 6.1 REPLACEMENT POLICY ..........14 6.2 RETURN AND REPAIR SERVICE ......... 14 7.0 LIMITED WARRANTY ............ 15 8.0 APPENDIX A ..............16 Broadata Technical Support, (800) 214-0222... -
Page 4: Product Description
HDBaseT 3x Transmission System 1.0 PRODUCT DESCRIPTION The LBC-SPH4-1HB3-EIR HDMI over HDMI and CAT 5e/6 Splitter can split and distribute a single HDMI input, 2-way IR control and LAN serving up to three CAT 5e/6 outputs and includes a simultaneous HDMI bypass output. - Page 5 High Speed HDMI cables are required. Package Contents • 1×4 HDMI over HDMI and CAT5e/6/7 Splitter • 1×IR Receiver • 1×IR Blaster • 24V DC Power Adaptor • Power Cord • Operation Manual Broadata Technical Support, (800) 214-0222...
-
Page 6: Operation Controls And Functions
LBC-SPH4-1HB3-EIR User’s Manual Link Bridge HDBaseT 3x Transmission System 2.0 OPERATION CONTROLS AND FUNCTIONS 2.1 Front Panel 1. HDMI IN: Connect to HDMI equipped source equipment such as a DVD/ Blu-ray player or game console. 2. SYNC LED: This LED will illuminate when the HDMI input is connected to a HDMI source and receiving a signal. -
Page 7: Rear Panel
TV or game console to the LAN port of a receiver for that device to share the network/internet access. Warning: DO NOT connect the LAN connection with any of the CAT5e/6/7 outputs, doing so may trigger a power shut down and may damage the device. Broadata Technical Support, (800) 214-0222... - Page 8 LBC-SPH4-1HB3-EIR User’s Manual Link Bridge HDBaseT 3x Transmission System 4. CAT5e/6/7 OUT 1~3: Connect to CAT5e/6/7 to HDMI Receivers (with or without PoH) with a single CAT5e/6/7 cable each to extend the HDMI signal up to 100m. 6. IR Extender: Connect to the supplied IR Receiver cables for IR signal reception.
-
Page 9: Connector Pin Assignment
LBC-SPH4-1HB3-EIR User’s Manual Link Bridge HDBaseT 3x Transmission System 3.0 CONNECTOR PIN ASSIGNMENT 3.1 IR Pin Assignment Figure 3-1 IR Blaster and IR Extender Pin Assignment Broadata Technical Support, (800) 214-0222... -
Page 10: Maintenance And Troubleshooting
However, observe the following light indicators to make sure that the unit is working properly: 4.2 Troubleshooting If the LBC-SPH4-1HB3-EIR units do not operate properly after installation, check for possible cable breaks, loose connections, and incorrect cable connections. If problems persist that may be fiber related, contact BCI at 1-800-214-0222 for further assistance. - Page 11 LBC-SPH4-1HB3-EIR User’s Manual Link Bridge HDBaseT 3x Transmission System c. Cable connections at both channels are securely fastened to each connector. Turn the power off, then back on to reset the link. Broadata Technical Support, (800) 214-0222...
-
Page 12: Specifications
LBC-SPH4-1HB3-EIR User’s Manual Link Bridge HDBaseT 3x Transmission System 5.0 SPECIFICATIONS Input Port 1×HDMI, 1×IR IN, 1×LAN, 1×USB (Service only) Output Port 1×HDMI, 3×CAT5e/6/7, 1×IR OUT CAT5e/6/7 Output Cable Up to 100 Meters HDMI Supported 480i~1080p@50/60Hz, 1080p@24Hz, 4K×2K Supports Resolutions (3840×2160@30Hz/4096×2160@... -
Page 13: Service Procedure
The LBC-SPH4-1H3B-EIR System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/ repair processing please contact Broadata Communications, Inc. to obtain a Return Material Authorization (RMA). Please include the following information: •... -
Page 14: Limited Warranty
HDBaseT 3x Transmission System 7.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole... -
Page 15: Appendix A
LBC-SPH4-1HB3-EIR User’s Manual Link Bridge HDBaseT 3x Transmission System 8.0 APPENDIX A: CAT-5E/6/7 CABLE SPECIFICATIONS Broadata Technical Support, (800) 214-0222... - Page 16 LBC-SPH4-1HB3-EIR User’s Manual Link Bridge HDBaseT 3x Transmission System Broadata Technical Support, Sales@Broadatacom.com...
- Page 17 LBC-SPH4-1HB3-EIR User’s Manual Link Bridge HDBaseT 3x Transmission System Broadata Technical Support, (800) 214-0222...
- Page 18 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com 60000-LBC-SPH4-1H3B-EIR...
