Maintenance & Adjustments
WARNING!
ground it against the engine before performing any
maintenance or repairs.
Maintenance
Engine
Refer to the separate Engine Operator's Manual for engine
maintenance instructions.
Tires
Recommended operating tire pressure is approximately 20 p.s.i. on
16 inch tires. (Check the sidewall of the tire for the manufacturer's
recommended pressure). Maximum tire pressure under any
circumstances is 30 p.s.i. Equal tire pressure should be maintained
on both tires.
WARNING!
seating beads may cause the tire/rim assembly to
burst with force sufficient to cause serious injury.
Tines
Clean the underside of the tine shield after each use. The dirt
washes off the tines easier if rinsed off immediately instead of
after it dries. Always towel dry the tiller afterwards and apply a
light coat of oil or silicone to prevent rusting or water damage.
NOTE: Never use a "pressure washer" to clean your tiller. Water
can penetrate tight areas of the tiller and its chain case and cause
serious damage to the tiller.
Lubrication
Transmission
The transmission is pre-lubricated and sealed at the factory. It
requires no checking unless the transmission is disassembled. To
fill with grease, lay the right half of the transmission on its side,
add 22 ounces of Benalene 920 grease, and assemble the left
half to it. This grease can be obtained at your nearest authorized
dealer by ordering part number 737-0300 or calling the Customer
Support number on page 2.
Clutch Handle
Lubricate the pivot point on the clutch handle and the cable at
least once a season with light oil. The control must operate freely
in both directions.
Pivot Points
Lubricate all the pivot points and linkages at least once a season
with light oil.
Tine Shafts
Remove the tine assemblies and lubricate the tine shafts at least
once a season.
Wheel Shafts
Remove the wheel assemblies and lubricate the axle shafts at
least once a season.
14
Disconnect the spark plug wire and
Excessive pressure (over 30 p.s.i.) when
Adjustments
WARNING!
Never attempt to make any
adjustments while the engine is running, except
where specified in the Operator's Manual.
Engine Adjustment
Refer to the separate Engine Operator's Manual for engine
adjustment instructions.
Clutch Cable
Refer to the Assembly & Set-Up section of this manual for
instructions on adjusting the clutch cable.
Idler Pulley Rod
After the belt tension has been adjusted, if the belt is excessively
stretched, you may need to adjust the idler pulley rod. This can
be checked easily.
With the engine off and the clutch control bail disengaged, shift
the gear selection handle to each forward mode. If the indicator
bracket touches the idler pulley rod with the clutch control bail
disengaged, then an adjustment is necessary.
1. Disconnect and ground the spark plug wire against the engine.
2. Remove the belt cover as described under Belt
Replacement in the Service section.
3. Remove the cotter pin and spring washer from the idler

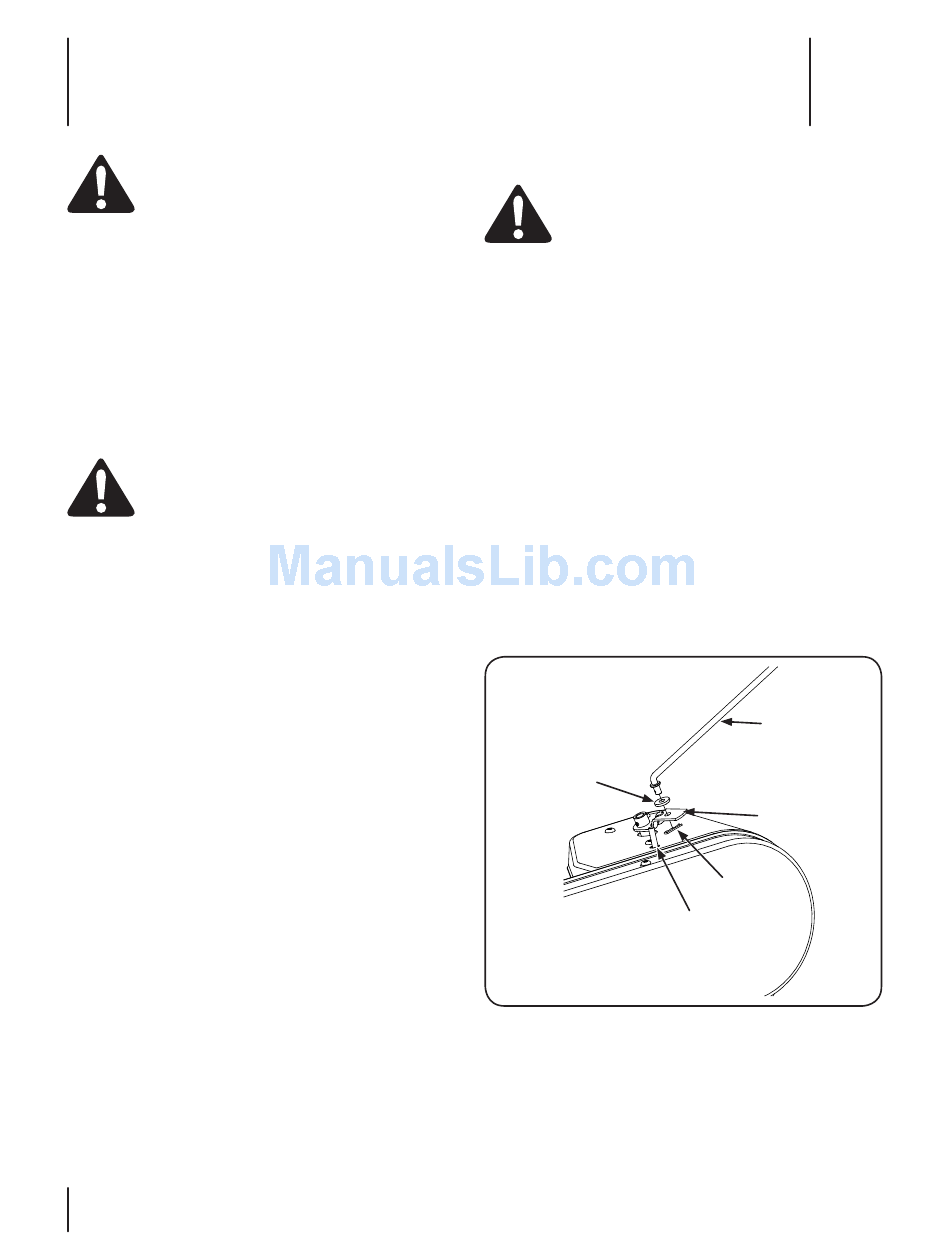

pulley rod. See Fig. 6-1.
Rubber Washer
Figure 6-1
4. Move the idler pulley rod to the lower hole in the idler bracket.
5. Replace the spring washer and hairpin clip.
6. Check the clearance of the idler pulley rod to the indicator
bracket by shifting to each forward mode.
Handle
The handle may be adjusted to the desired height. Refer to the
Assembly & Set-Up section for details.
6
Control Rod
Indicator Bracket
Cotter Pin
Idler Puller Rod
