- Page 1 Instruction Manual...
- Page 2 INFORMATION FOR YOUR SAFETY! PRECAUTIONS THE FCC REGULATION WARNING (For USA) PLEASE READ CAREFULLY BEFORE PROCEEDING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Please keep this manual in a safe place for future reference Part 15 of the FCC Rules.
-
Page 3: Table Of Contents
Contents Panel Controls - Top Panel - Rear Panel Operation - Select a Drum Kit - Set Pad Voice - Set pad volume - Set pad pan - Set pad midi note - Save Kit - Play Song - Main Volume - Accompaniment Volume - Drum Off - Tempo... -
Page 4: Power Supply
Setting up Power Supply Notes Power will be automatically drawn from the AC adaptor Your d igital drum will run on either batteries or power if an optional AC adaptor is connected while batteries adaptor. Follow the instructions below according to the are installed in the instrument. -
Page 5: Panel Controls

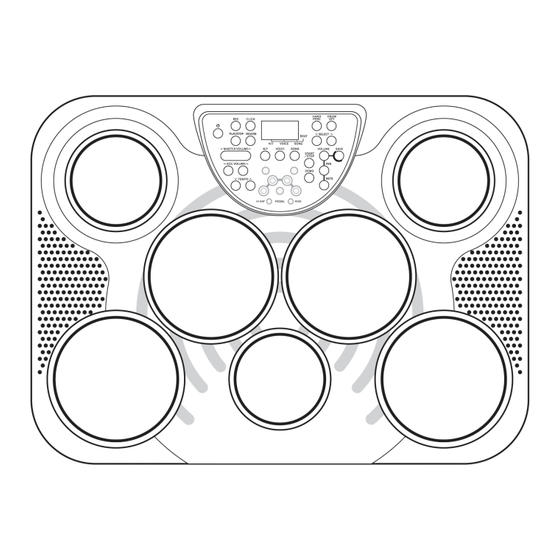

Panel Controls Top panel Drum pad (x7) Control panel 1.POWER BUTTON This button set the power of module on or off. 10.KIT 2.TEMPO + & - This button is used to enter kit menu. These buttons are used to change current tempo. 11.VOICE 3.MASTER VOLUME + &... -
Page 6: Rear Panel
Panel Controls 19.REVERB This button is used to change the reverb level. 20.PAD INDICATORS Display the pad currently being played. 21.DEMO This button can be used to start or stop demo song playing. 22.NOTE This button can be used to change the midi note of pad. Rear Panel 23.AUXIN INPUT This port is used to connect with the external audio device,like CD player or MP3 player. -
Page 7: Operation
Operation Select a Drum Kit Kit menu is the default menu after power on, default value is 001. Press [KIT] button to enter kit menu. The 3-digit LED will s how the current kit number with the corresponding menu indicator lit up. The button SELECT [+] / [ ] can be used to select any kit... -
Page 8: Set Pad Midi Note
Operation Set pad midi note Press [NOTE] button to enter voice menu,If voice menu is selected, the corresponding menu indicator will be lit In this menu, the 3-digit LED will show the midi note of current pad, which can be selected by pad hitting. The button SELECT [+] / [-] can be used to change the midi... -
Page 9: Accompaniment Volume
Operation Accompaniment Volume In accompaniment volume menu, the digit on far left of LED will display letter “A”. The two digits on the right will display current accompaniment volume. The button ACC.VOLUME [+] / [ ] - can be used to adjust the volume (0-16, not loop). -
Page 10: Demo
Operation Demo Press [DEMO] button to start or stop demo song playing. The 3-digit LED will display “dE” , you can also press [START/STOP] button to stop demo song playing. Reverb Press [REVERB] button to enter reverb function. In this menu, the digit on far left of LED will display letter “R”. -
Page 11: Input And Output
Input and Output Pedals this appliance supports 1 hi-hat pedal and 1 kick pedal as input device. Phones output The phones output supports a stereo headphone as output device. Note: the headphone is optional. USB jack This appliance will output all the MIDI codes generated by pads hitting or pedal stepping via the MIDI output connector. -
Page 12: Voice List
Voice list NO. Name T echno Snare Rim Lo-Fi T om 4 808 Hi-hat Close KICK Magic Snare Lo-Fi T om 5 808 Hi-hat Open 22''Acoustic Kick Acoustic Snare Stick Lo-Fi T om 6 808 Hi-hat Pedal 24''Standard Kick Standard Snare Stick Junkyard T om 1 808 Hi-hat Splash Brush Kick... -
Page 13: Kits List
Voice List Vibraphone Db4 Vibraphone D5 Orchestra Timp D2 Orchestra Timp Eb3 Vibraphone D4 Vibraphone Eb5 Orchestra Timp Eb2 Orchestra Timp E3 Vibraphone Eb4 Vibraphone E5 Orchestra Timp E2 Orchestra Timp F3 Vibraphone E4 Vibraphone F5 Orchestra Timp F2 Orchestra Timp Gb3 Vibraphone F4 Vibraphone Gb5 Orchestra Timp Gb2... -
Page 14: Song List
Song List Name LatinRock2 BluesFunk Mambo NuJazzFunk Samba2 funk1 Latin pop funk2 Gtr Bossa funk3 LatinDance1 funk4 LatinDance2 pop funk1 R&B1 pop funk2 R&B2 RetroFunk JazzyFunk Fusion1 Blues Fusion2 Country Fusion3 CountryPop Fusion4 Country Blues Fusion5 Ballad1 Fusion6 BritPop CoolJazz 8BeatPop1 BigBand1 60'sPop... -
Page 15: Midi Implementation Chart
MIDI Implementation Chart Function Transmitted Recognized Remarks Basic Default 10ch 1-16ch × Channel Changed × × Default × Mode Messages × Altered × *********** Note 27-88 0—127 Number : True voice 0—127 *********** Velocity : Note on O 9nH,V=1-127 O 9nH,V=1-127 ×... -
Page 16: Specifications
Specifications Main features: drum pads with touch sensitivity and two pedals (kick and hi-hat) LED displays and 1 USB jack (MIDI IN/OUT). Type B USB. 1 phones output preset drum kits 26 + percussion voices and 128 GM voices, 16M bytes voice data songs (include 80 styles and 20 songs).
