User's Manual

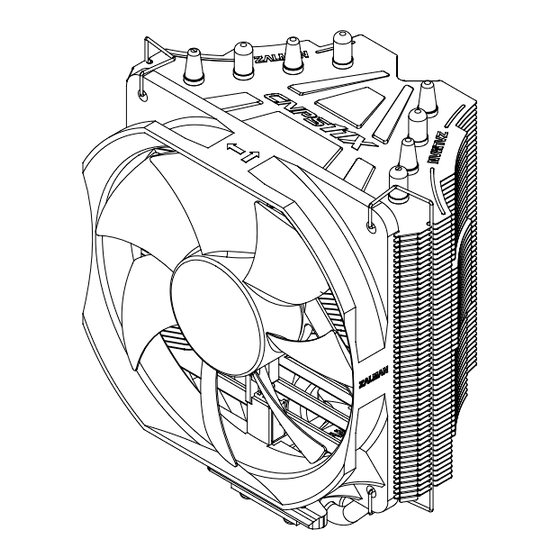

CNPS11X Performa+
Intel Socket LGA 2011 V3/2011/1366/115X/775 CPUs
AMD Socket FM2/FM1/AM3+/AM3/AM2+/AM2 CPU & APUs
To ensure safe and easy installation,
Please read the following precautions.
www.ZALMAN.com
Ver.150810

Advertisement

loading

Summary of Contents for ZALMAN CNPS11X Performa+

  • Page 1 User's Manual CNPS11X Performa+ Intel Socket LGA 2011 V3/2011/1366/115X/775 CPUs AMD Socket FM2/FM1/AM3+/AM3/AM2+/AM2 CPU & APUs To ensure safe and easy installation, Please read the following precautions. www.ZALMAN.com Ver.150810...
  • Page 2: Specifications

    ■ Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement. ■ During transportation of the system, the cooler must be removed. Zalman is not responsible for any damages that occur during the transport of a system.
  • Page 3: Common Components

    Components Common Components Cooler Backplate Side Caps Bolts Nuts Loaging Block Thermal Grease Double-sided Manual [ZM-STG2M] Tape Intel Components AMD Components - Socket LGA 2011 V3/2011/1366/115X/775 Socket FM2/FM1/AM3+/AM3/AM2+/AM2 - Stand off Intel Clip Stand-off AMD Clip .COM...
  • Page 4: Installation Requirements

    Installation Requirements Space Requirements The cooler’s installation requires an unobstructed space of 94.5mm(width) 132mm(length) and 153.5mm(height) with the CPU as a central reference point. Please check if components such as ODDs and PSU protrude into the required space. Air Guide Removal Air guides on enclosures must be removed before the cooler’s installation since they protrude into the cooler’s required space.
  • Page 5: Installation

    Installation LGA Intel Socket Installation Intel Socket 2011 V3 / 2011 User Partially unscrew the four bolts located on the base of the CPU cooler. Then insert the Intel Clips between the base and the heatpipe cover, with the clips bent away from the heatsink.
  • Page 6 Install the Bolts to the Backplate according to the socket type and secure them with Side Caps. ※ Backplate is not needed for LGA 2011 V3 / 2011 sockets. Socket 775 Socket 115X Socket 1366 Caution Take note of the orientation of the Nuts and the Side Caps. Socket 1366 / 115X Installation Peel off one side of the Double-sided Tape and attach it to the center of the Backplate with the sticky side facing down.
  • Page 7 Socket 775 Installation Peel off the Loading Block cover and attach it to the Backplate with the sticky side facing the center of the Backplate. Loading Block Peel off one side of the Double-sided Tape and attach it with the sticky side facing the Loading block.
  • Page 8 Socket 1366 / 115X / 775 User Socket 2011 V3 / 2011 User Attach the Backplate assembly to the back Fasten the four Stand-offs to the side of the motherboard by aligning the Nuts motherboard. Backplate is not needed. to the motherboard mounting holes. If you were unsuccessful at first attempt, you may continue with the installation without Double-sided Tape as it is not a necessary...
  • Page 9 Connect the cooler’s 4-pin connector to the motherboard’s CPU Fan header. Caution Please make sure that PWM Control Mode is activated in the motherboard’s BIOS settings. AMD Socket Installation Partially unscrew the four bolts located on the base of the CPU cooler. Then, insert the AMD Clips between the base and the heatpipe cover, with the clips bent away from the heatsink.
  • Page 10 Caution Take note of the orientation of the Nuts and the Side Caps. Peel off the Loading Block cover and attach it to the Backplate with the sticky side facing the center of the Backplate. Loading Block Peel off one side of the Double-sided Tape and attach it with the sticky side facing the Loading block.
  • Page 11 Dismantle the CPU cooler retention bracket on the motherboard by unscrewing the four bolts located at each corner (method may vary; consult the motherboard manual for details). Be sure to keep the retention bracket so the stock CPU cooler can be used as a backup. Attach the Backplate assembly to the back side of the motherboard by aligning the Nuts to the...
  • Page 12 Latch the Fan Fixing Clips to the notches located on the sides of the heatsink. Note: It is often easier to latch the Fan Fixing Clips one at a time. Fan Fixing Clips Connect the cooler’s 4-pin connector to the motherboard’s CPU Fan header.
