Page 1: Lcd Display

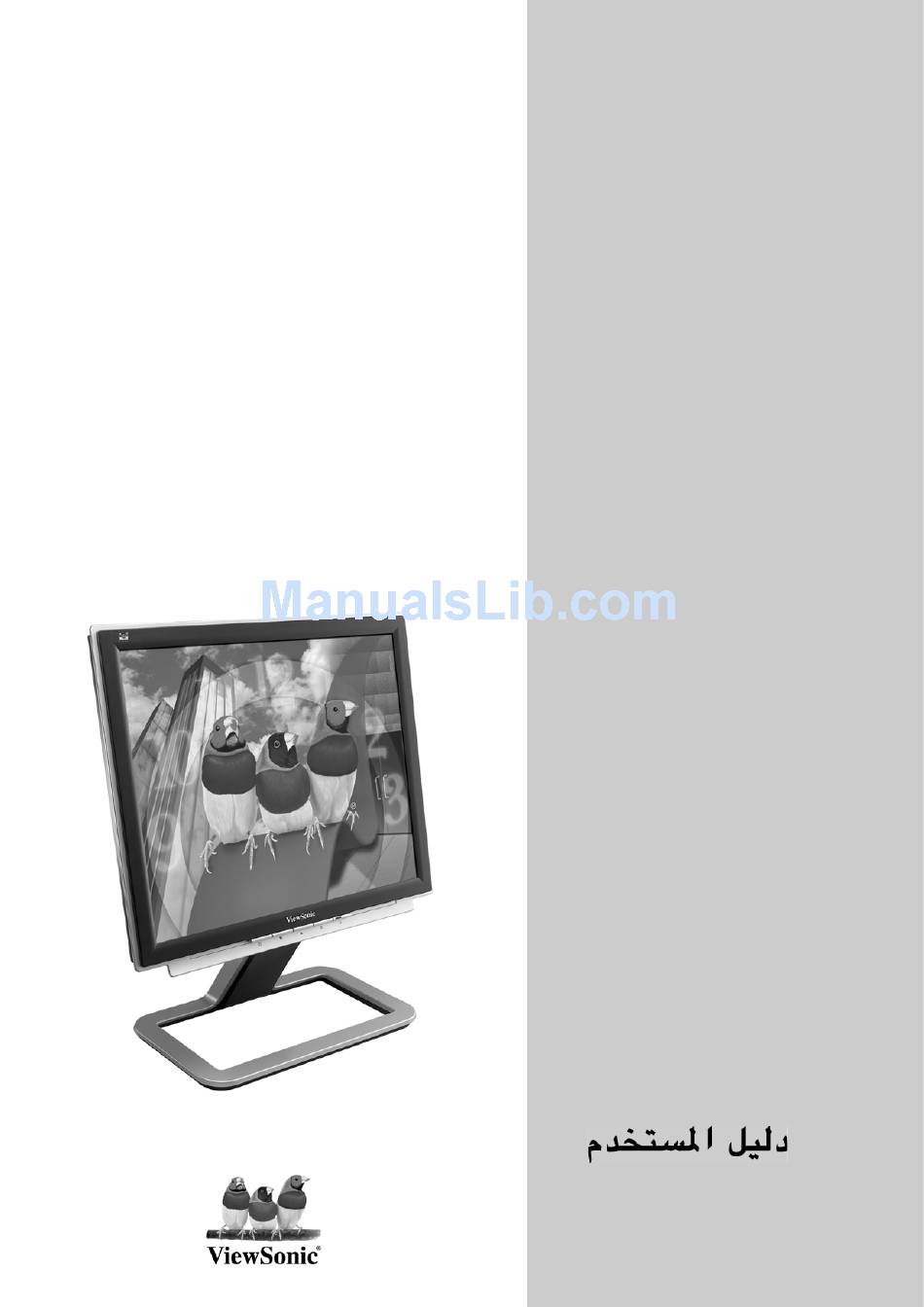

® ViewSonic VX715 LCD Display - User Guide - Guide de l'utilisateur - Bedienungsanleitung - Guía del usuario - Guida dell'utente - Guia do usuário - Användarhandbok - Käyttöopas - Podręcznik użytkownika - Használati útmutató - Pyководство польэователя - Uživatelská píruka - ユーザーズガ... -
Page 2: Table Of Contents
Using the LCD Display Setting the Timing Mode ............8 OSD and Power Lock Settings..........8 Adjusting the Screen Image ..........9 Main Menu Controls .............10 Other Information Specifications ..............15 Troubleshooting..............16 Customer Support ...............17 Cleaning the LCD Display ...........18 Limited Warranty ..............19 ViewSonic VX715 09/29/04 C... -
Page 3: Compliance Information
CE Conformity for European Countries CE Conformity The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility,” and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety.” ViewSonic VX715... -
Page 4: Important Safety Instructions
ViewSonic VX715... -
Page 5: Product Registration
NERGY Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this mate- rial, or the performance or use of this product. -
Page 6: Getting Started
NOTE: User Guide PDF files and INF/ICM display optimization files. The INF file ensures compatibility with Windows operating systems, and the ICM file (Image Color Matching) ensures accurate on-screen colors. ViewSonic recommends that you install both files. Precautions • Sit at least 18" from your LCD display. -
Page 7: Quick Installation
INF file. registration form which you may mail or fax This is on the CD. to ViewSonic. 5 Insert the ViewSonic Wizard CD into the computer’s CD drive. Follow the on-screen instructions If your computer does not have a CD-ROM drive, see “Customer Support.”... -
Page 8: Installation Of Wall Mount (Optional)
Installation of Wall Mount (Optional) To obtain a wall-mounting kit, contact ViewSonic or your local dealer. Refer to the instructions that come with the base mounting kit. To convert your LCD display from a desk-mounted to a wall-mounted display, do the following: Disconnect Power. -
Page 9: Using The Lcd Display
With or without this setting, after a power failure, your LCD display’s power will automatically turn ON when power is restored. • Power Button Unlock: Press and hold [1] and the down arrow again for 10 seconds. ViewSonic VX715... -
Page 10: Adjusting The Screen Image
Displays the control screen for the highlighted control. Also toggles between two controls on some screens. Also a shortcut to toggle between analog and digital connections. Power light Green = ON Orange = Power Saving Power On/Off ViewSonic VX715... -
Page 11: Main Menu Controls
• If necessary, make small adjustments using H POSITION and V POSITION until the screen image is completely visible. (The black border around the edge of the screen should barely touch the illuminated “active area” of the LCD display.) ViewSonic VX715... - Page 12 DVI input. adjusts the difference between the image background Contrast (black level) and the foreground (white level). adjusts background black level of the screen image. Brightness allows you to toggle between an analog and a Input Select digital signal. ViewSonic VX715...
- Page 13 To select color (R, G or B) press button [2]. To adjust selected color, press Important: If you select RECALL from the Main Menu when the product is set to a Preset Timing Mode, colors return to the 6500K factory preset. ViewSonic VX715...
- Page 14 Vertical Position adjusts the width of the screen image. Horizontal Size sharpens focus by aligning the illuminated text and/ Fine Tune or graphic characters. adjusts the clarity and focus of the screen image. Sharpness ViewSonic VX715...
- Page 15 Memory Recall settings if the display is operating in a factory Preset Timing Mode listed in this user guide. Exception: This control does not affect changes made with the User Color control, Language and Power Lock setting. ViewSonic VX715...
-
Page 16: Other Information
Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD display. ® Macintosh computers older than G3 require a ViewSonic , Macintosh adapter. To order an adapter, contact ViewSonic. -
Page 17: Troubleshooting
Loose or broken pins in the cable connector could cause an improper connection. • Connect the LCD display to another computer. • If you have an older graphics card, contact ViewSonic for a non-DDC adapter. Control buttons do not work •... -
Page 18: Customer Support
Malaysia/Thailand F: 65 273 1566 viewsonic.com South Africa/ www.viewsonic.com T: 886 2 2246 3456 service@sd. Other countries F: 886 2 8242 3668 viewsonic.com Hong Kong www.hk.viewsonic.com T: 886 2 2246 3456 service@hk. F: 886 2 8242 3668 viewsonic.com ViewSonic VX715... -
Page 19: Cleaning The Lcd Display
LCD display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD display. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 20: Limited Warranty
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.
