28JS-74S
TDA9885/V3 (IC201)
Features
SYMBOL PIN
TAGC 14 tuner AGC output
REF 15 4 MHz crystal or reference input
VAGC 16 VIF-AGC for capacitor; note 1
CVBS 17 video output
AGND 18 analog ground
VPLL 19 VIF-PLL for loop filter
V 20 supply voltage (+5 V)
P
AFC 21 AFC output
OP2 22 output 2 (open-collector)
SIF1 23 SIF differential input 1
SIF2 24 SIF differential input 2
Note
1. Not connected for TDA9885.
handbook, halfpage
VIF1 1
VIF2 2
OP1 3
FMPLL 4
DEEM 5
AFD 6
TDA9885TS
TDA9886TS
DGND 7
AUD 8
TOP 9
SDA 10
SCL 11
SIOMAD 12
(1) Not connected for TDA9885TS.

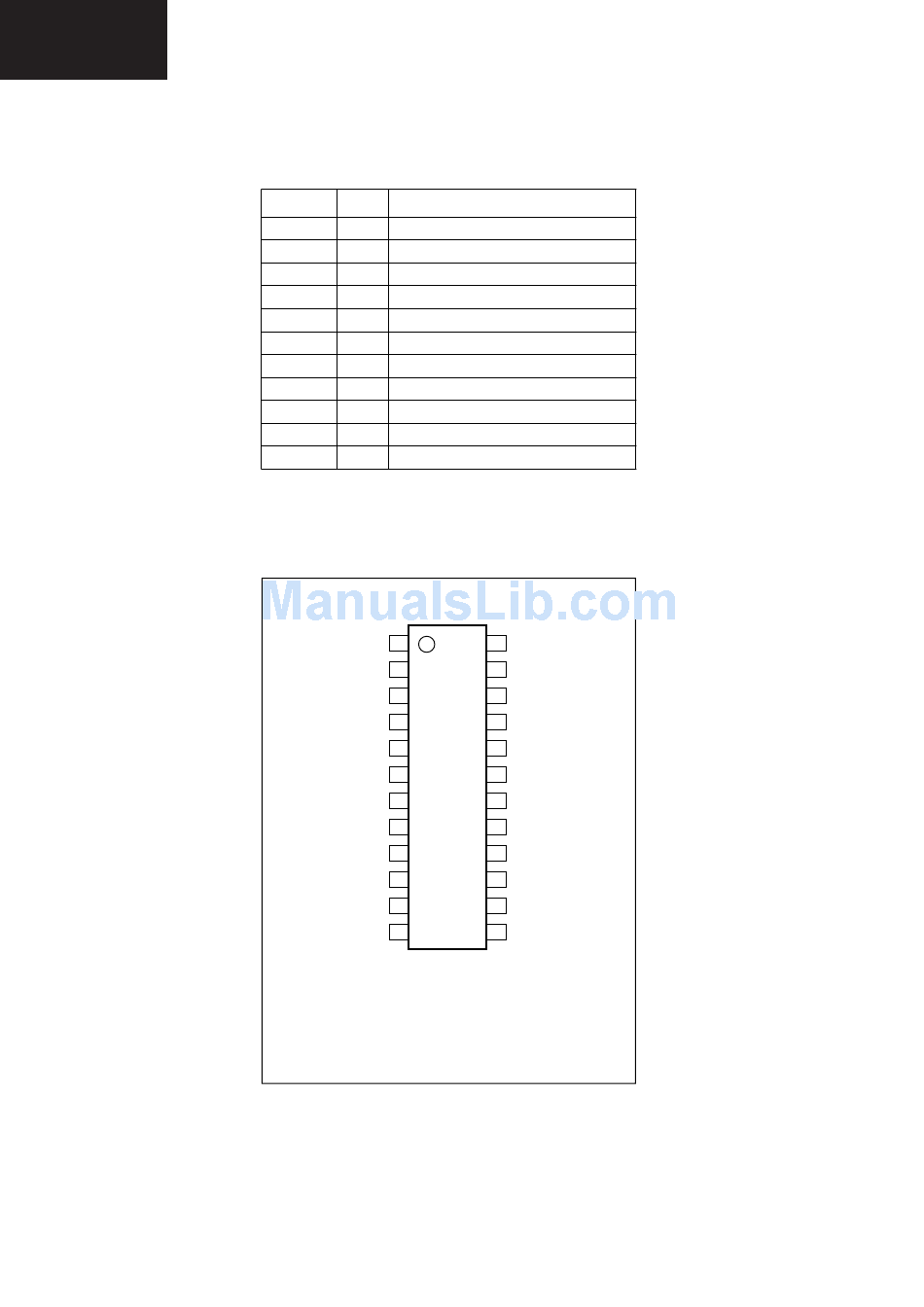

Fig.3 Pin configuration for SSOP24.
DESCRIPTION
24 SIF2
23 SIF1
22 OP2
21 AFC
20 V P
19 VPLL
18 AGND
17 CVBS
(1)
16 VAGC
15 REF
14 TAGC
13 n.c.
MXXxxx
