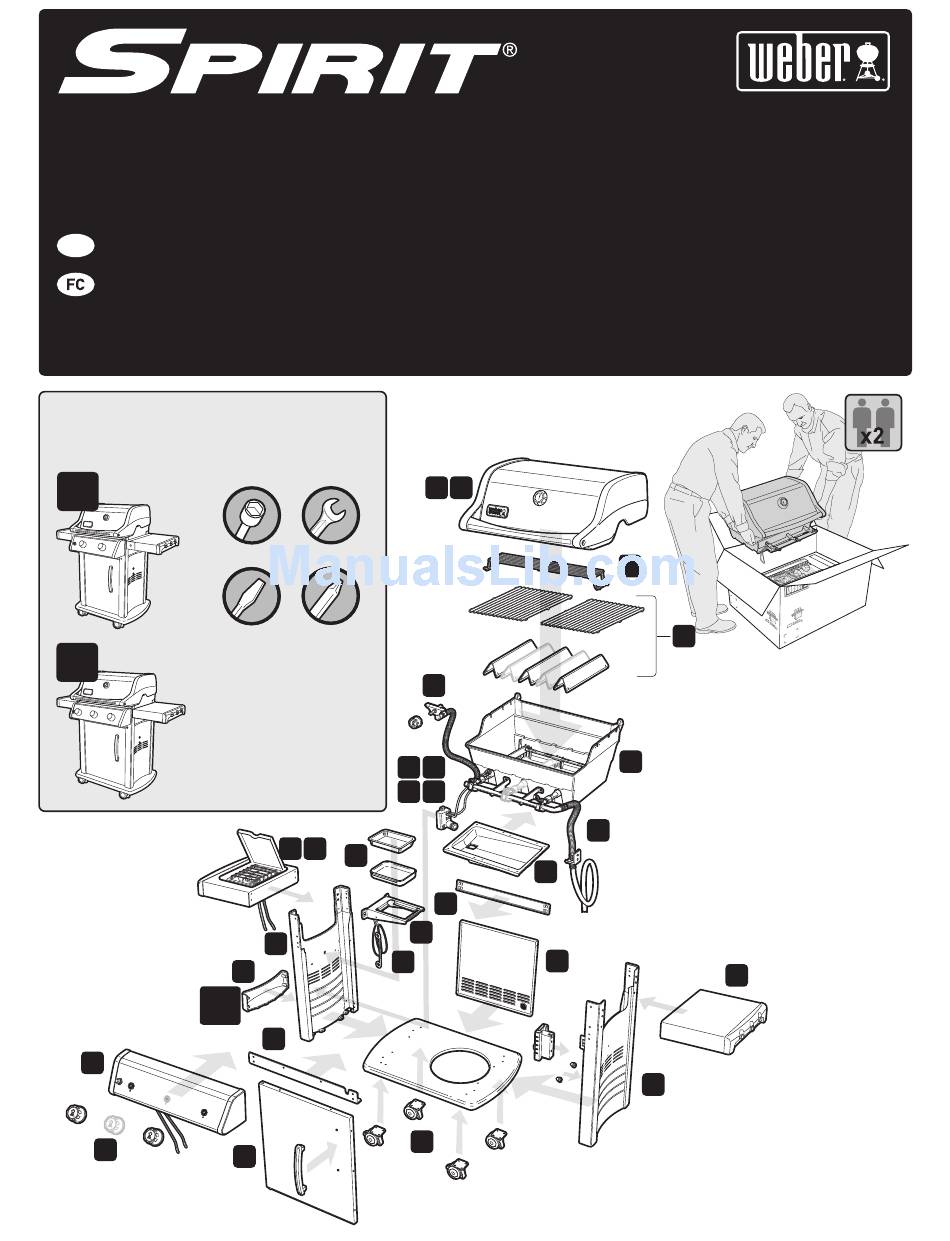

GAS GRILL
Assembly Guide
BARBACOA DE GAS Guía de ensamblaje
ESNA
GRILL À GAZ Guide pour l'assemblage
220 320
TOOLS NEEDED:
HERRAMIENTAS REQUERIDAS:
OUTILS NECESSAIRES:
220
7/16"
320
13
SP 320
14
24
22
8
7/16" , 9/16"
16
10
12
18
19
15
17
21
6
7
3
27
5
1
23
26
9
11
20
4
#57203
25
15
2
57203 04/27/12 LP/NG
US - ENGLISH
Advertisement
Related Manuals for Spirit 57203
Summary of Contents for Spirit 57203
- Page 1 GAS GRILL Assembly Guide BARBACOA DE GAS Guía de ensamblaje ESNA GRILL À GAZ Guide pour l’assemblage 220 320 #57203 TOOLS NEEDED: HERRAMIENTAS REQUERIDAS: OUTILS NECESSAIRES: 7/16” , 9/16” 7/16” SP 320 57203 04/27/12 LP/NG US - ENGLISH...
- Page 2 1 ..1......1 ..1..... 1 ..1..1 ..1..........1 ..1..........1 ..1........1 ..1....... 1 ..1....... 1 ..1......... 1 ..1..........1 ..1..........2 ..2..........2 ..2..........1 ..1......SP 320 0 ..1........1 ..1........2 ..3........... 1 ..1..........1 ..1......1 ..1...........
- Page 3 - 16 - 16 1 ..1......- 29 - 29 1 ..1........SP 320 0 ..1........3 ..5........1 ..1........1 ..1........1 ..1......1 ..0......... SP 320 0 ..1........1 ..1........
- Page 4 - 16 - 16...
- Page 6 Liquid Propane grills only. See Owner’s Guide for complete gas instructions. Solamente barbacoas de propano licuado. Consulte las instrucciones completas respecto al gas en la Guía del Propietario. Grills à gaz propane liquide uniquement. Voir le mode d’emploi pour des instructions détaillées concernant le gaz.
- Page 7 SP 320...
- Page 9 See Owner’s Guide for the Igniter Module Wire Guide chart. Vea el cuadro de la Guía de Cableado del Módulo del Encendedor en la Guía del Propietario. Voir le Mode d’emploi pour le tableau Guide de câble du module de l’allumeur.
- Page 12 MANIFOLD / BURNER TUBE REPLACEMENT INSTRUCTIONS THIS PROCEDURE SHOULD ONLY BE PERFORMED BY AN AUTHORIzED WEBER-STEPHEN PRODUCTS LLC SERVICE TECHNICIAN WARNINg: gENUINE WEBER-STEPHEN REPLACEMENT PARTS MUST BE USED FOR ANY REPAIR OR REPLACEMENT. YOUR ACTIONS, IF YOU FAIL TO FOLLOW THIS PRODUCT WARNINg, MAY CAUSE A FIRE, AN ExPLOSION, OR STRUCTURAL FAILURE RESULTINg IN SERIOUS PERSONAL INjURY OR DEATH AS WELL AS DAMAgE TO PROPERTY.
- Page 13 DIScONNectION OF HOSe FrOM GAS SOUrce NORTH AMERiCAN GRills LP UNITS: WARNINg: Do not use a wrench A) Make sure gas supply is turned off at source. to loosen the connection. Using B) Disconnect LP cylinder from inside of cabinet base. a wrench could damage the C) Remove LP cylinder from cabinet base.
-
Page 14: Control Panel Removal
LID ASSeMBLY AND cOOKBOX cOMpONeNtS reMOVAL cONtrOL pANeL reMOVAL 310 / 320 210 / 220 TOOLS NEEDED: - PHILLIPS MANIFOLD reMOVAL - PHILLIPS TOOLS NEEDED: - 7/16", 9/16", 3/4"... -
Page 15: Burner Tube Removal
BUrNer tUBe reMOVAL IGNIter eLectrODe reMOVAL REMOVAL NOTE: If igniter electrode assembly does not easily slide out from mounting bracket, use a small pair of pliers or channel locks to grasp metal igniter bracket of igniter electrode assembly. -
Page 16: Burner Tube Installation
• REPLACEMENT PART INSTALLATION IGNIter eLectrODe reINStALLAtION VISUAL CHECk: SEE IF IgNITER BRACkET STOP ON IgNITER ELECTRODE IS FLUSH WITH BURNER TUBE MOUNTINg BRACkET. BUrNer tUBe INStALLAtION... -
Page 17: Manifold Installation
MANIFOLD INStALLAtION - PHILLIPS TOOLS NEEDED: - 7/16", 9/16", 3/4" CAUTION: Burner tube openings (2) must be positioned properly over valve openings (3). - Page 18 WARNINg: Make sure all control knobs are turned to the OFF position before reconnecting gas supply and operating grill. Your actions, if you fail to follow this Product Warning, may cause a fire, an explosion, or structural failure resulting in serious personal injury or death as well as damage to property. cONNectION OF HOSe tO GAS SOUrce NORTH AMERiCAN GRills WARNINg: Do not use a wrench to...
-
Page 19: Check For Gas Leaks
WARNINg: Make sure all control knobs are turned to the OFF position before reconnecting gas supply and operating grill. Your actions, if you fail to follow this Product Warning, may cause a fire, an explosion, or structural failure resulting in serious personal injury or death as well as damage to property. cHecK FOr GAS LeAKS DANgER Do not use an open flame to check for gas leaks. - Page 20 cONtrOL pANeL reINStALLAtION 310 / 320 210 / 220 TOOLS NEEDED: - PHILLIPS cHecK IGNItOr WIreS REASSEMBLY NOTE: After completely checking igniter wires, check for igniter spark. Push down on igniter button, listen for a clicking sound, and check for a spark at ceramic igniter. If you hear a click and see a spark, igniter module is working. LID ASSeMBLY AND cOOKBOX cOMpONeNtS reINStALLAtION...
- Page 21 MAIN IGNITER MODULE / BUTTON / IGNITER ELECTRODE REPLACEMENT INSTRUCTIONS THIS PROCEDURE SHOULD ONLY BE PERFORMED BY AN AUTHORIzED WEBER-STEPHEN PRODUCTS LLC SERVICE TECHNICIAN WARNINg: gENUINE WEBER-STEPHEN REPLACEMENT PARTS MUST BE USED FOR ANY REPAIR OR REPLACEMENT. YOUR ACTIONS, IF YOU FAIL TO FOLLOW THIS PRODUCT WARNINg, MAY CAUSE A FIRE, AN ExPLOSION, OR STRUCTURAL FAILURE RESULTINg IN SERIOUS PERSONAL INjURY OR DEATH AS WELL AS DAMAgE TO PROPERTY.
- Page 22 LID ASSEMBLY AND cOOKBOX cOMpONENTS REMOVAL cONTROL pANEL REMOVAL 310 / 320 210 / 220 TOOLS NEEDED: - PHILLIPS IGNITER BUTTION REMOVAL...
- Page 23 MAIN IGNITER MODULE REMOVAL TOOLS NEEDED: - PHILLIPS 310 / 320 210 / 220 IGNITER ELEcTRODE REMOVAL REMOVAL NOTE: If igniter electrode assembly does not easily slide out from mounting bracket, use a small pair of pliers or channel locks to grasp metal igniter bracket of igniter electrode assembly.
- Page 24 MAIN IGNITER MODULE INSTALLATION 210 / 220 TOOLS NEEDED: - PHILLIPS 310 / 320 IGNITER BUTTION INSTALLATION cONTROL pANEL REINSTALLATION TOOLS NEEDED: - PHILLIPS 310 / 320 210 / 220...
- Page 25 cONTROL KNOB REINSTALLATION LID ASSEMBLY AND cOOKBOX cOMpONENTS REINSTALLATION PROPOSITION 65 WARNINg: HANDLINg THE BRASS MATERIAL ON THIS PRODUCT ExPOSES YOU TO LEAD, A CHEMICAL kNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. (Wash hands after handlinG this product.) ...
- Page 26 WEBER-STEPHEN PRODUCTS LLC www.weber.com ® © 2012 Designed and engineered by Weber-Stephen Products LLC a Delaware limited liability company, located at 200 East Daniels Road, Palatine, Illinois 60067 U.S.A.
