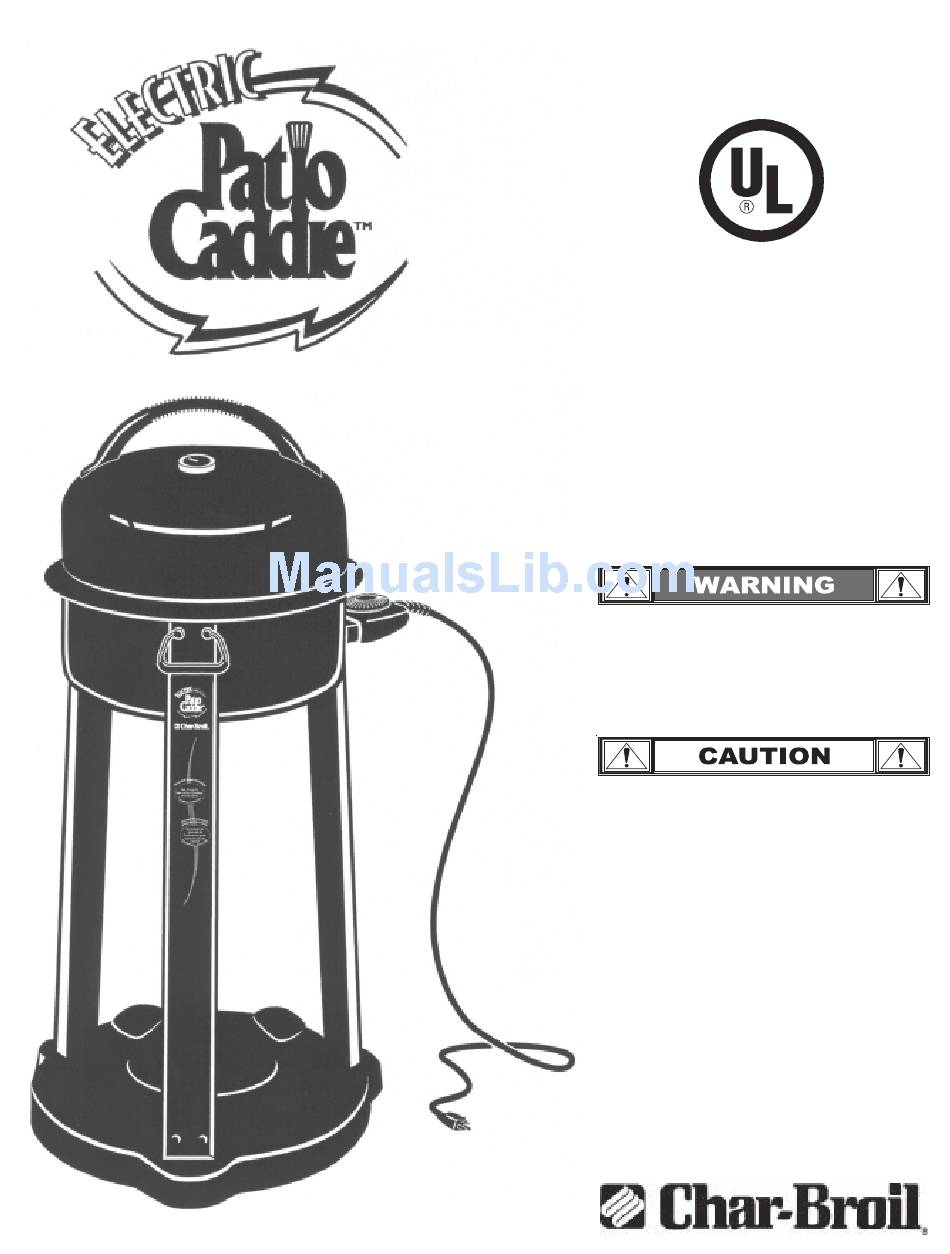

Char-Broil patio caddle Assembly Manual

Electric
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
465487004
ASSEMBLY MANUAL
FOR OUTDOOR HOUSEHOLD USE
ONLY. DO NOT USE INDOORS OR
FOR COMMERCIAL COOKING
INSTALLER/ASSEMBLER: Leave
these instructions with consumer.
CONSUMER: Keep this manual for
future reference.
Failure to follow all manufacturer's
instructions could result in serious
personal injury and/or property
damage.
Read and follow all safety
statements, Assembly Instructions
and Use and Care directions before
attempting to assemble and cook.
Some parts may contain sharp
edges -especially as noted in the
manual! Wear protective gloves if
necessary.
•••
If you have any questions or need
assistance during assembly, please
call 1-800-241-7548.
Visit us on the web at:
www.charbroil.com
465487004 / 0 - 4165417 (01-05-04)
465487004 • 1
