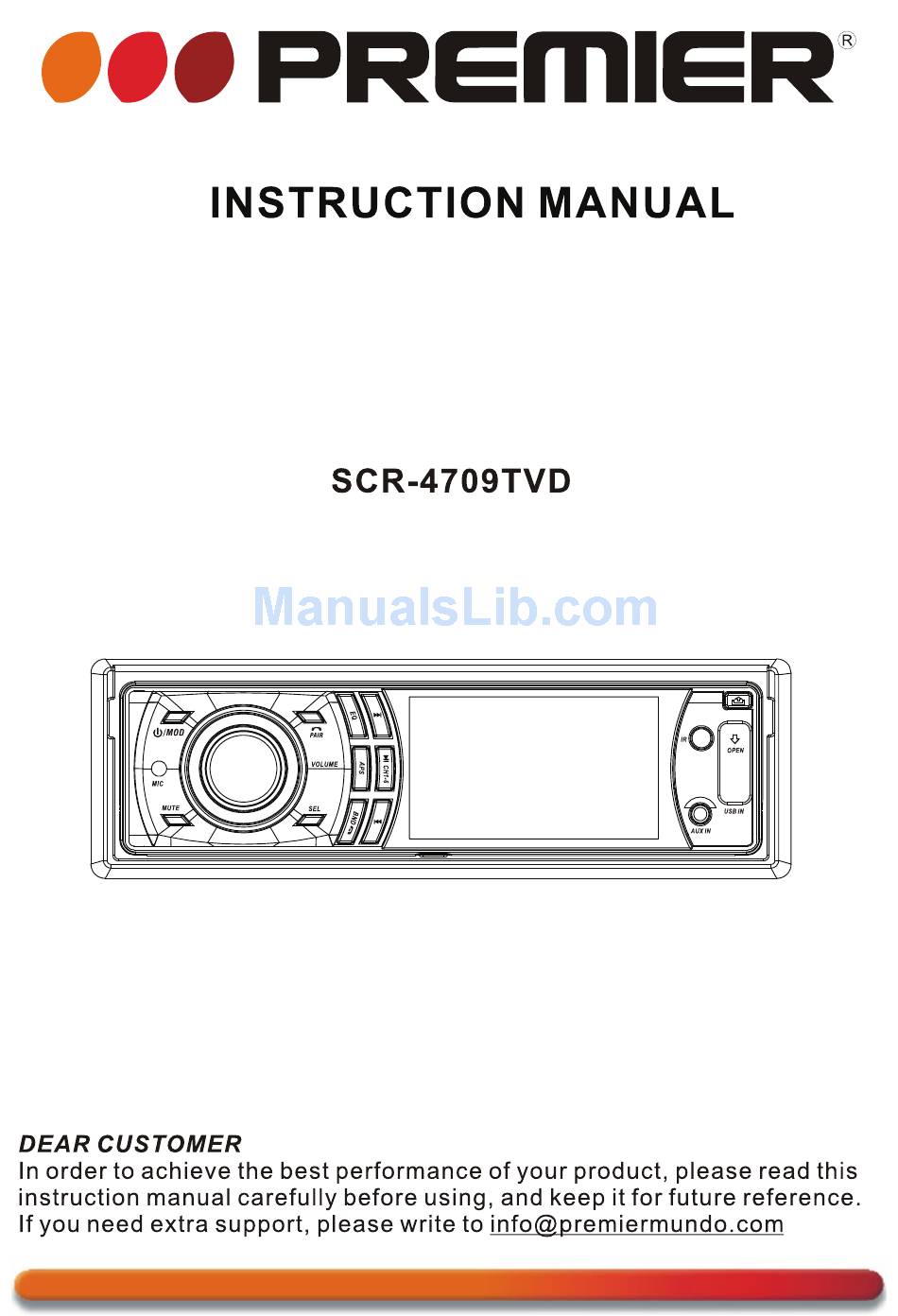

- Page 1 CAR-AUDIO W/LCD & DVD (3")
-
Page 31: Usb Operation
AV IN OPERATION USB OPERATION First remove the dust protection cap , On the front panel of this unit, there is an then following the diagram below, AUX IN jack, follow the diagram below to connect your device to the USB port of connect analogue replay devices(only the unit . - Page 32 SD/MMC card OPERATION The unit can support playback MP3/WMA/JPEG/MP4 format which are stored into SD and MMC memory card . The supported max. memory size of card: SD-16GB; MMC-2GB. INSERTING THE SD OR MMC CARD . Label side facing upward OPEN Press the open button First to slide the panel a...
-
Page 34: Specification
SPECIFICATION Supply Voltage: 12V DC (11V-15V) Current Consumption: Less than 15 A Output Power: 4 x 25 W Signal System: Compositive video 1.0Vp-p 75 Discs Played: (1)Digital Video Disc 5"(12 cm) single-sided, single-layer 5"(12 cm) single-sided, double-layer (2)Compact Disc (CD-DA, VIDEO CD) 5"(12cm) disc Audio Signal Output: 2ch&4ch line out... -
Page 35: Troubleshooting
TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. SYMPTOM CAUSE SOLUTION If the power supply is properly connected to the car accessory The car ignition switch is terminal,switch the ignition key not on... - Page 36 P-35...
