Chapter 1

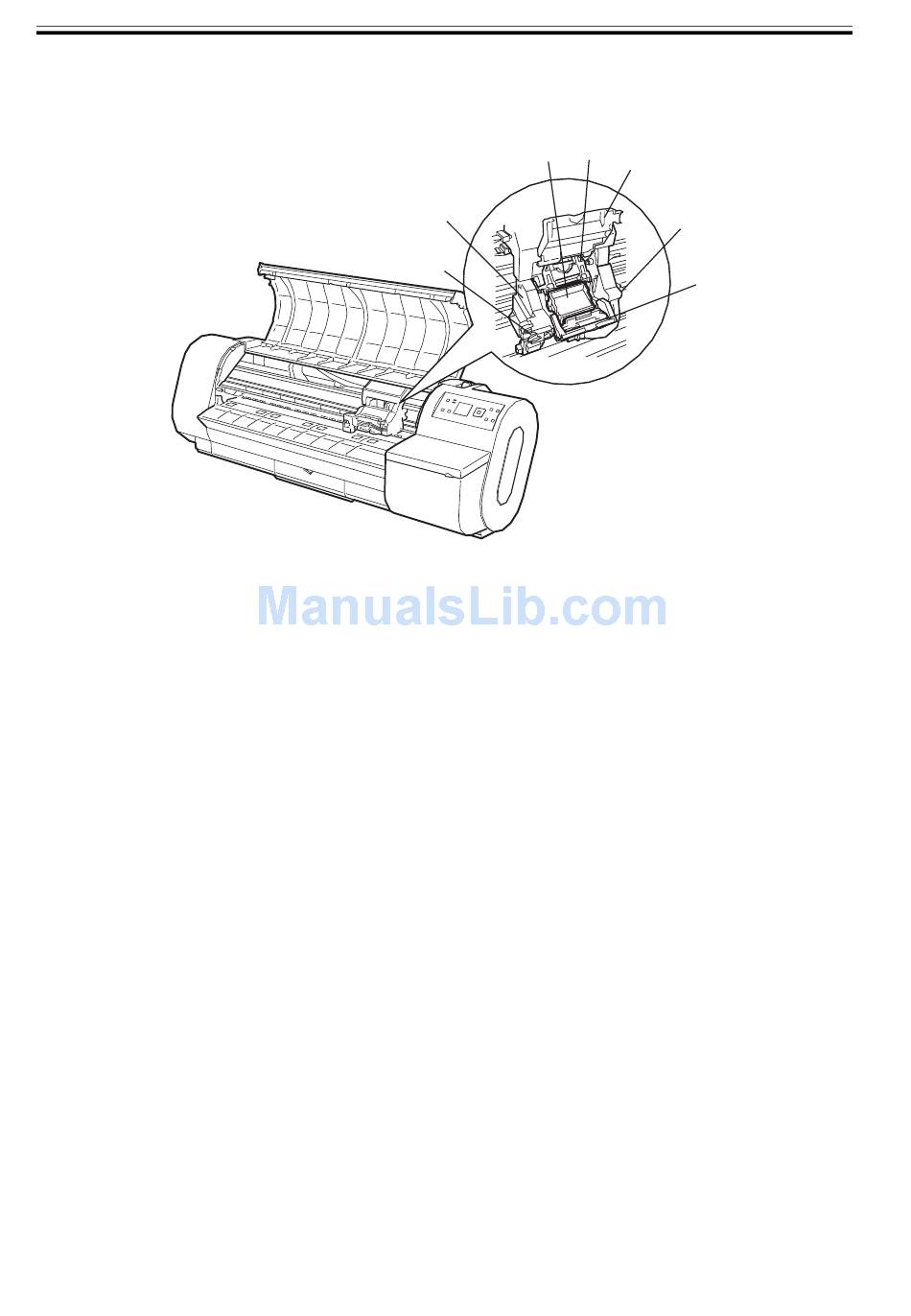

1.5.3 Carriage

[1] Carriage cover
Protects the carriage.
[2] Printhead fixer cover
Clamps the printhead.
[3] Printhead
A key component that houses nozzles.
[4] Shaft cleaner
Keeps the carriage shaft clean.
[5] Printhead fixer lever
Locks the printhead fixer cover.
[6] Slant adjustment lever
Fine-adjusts slants in ruled lines during printing.
[7] Cutter unit
A curved cutting edge that cuts paper automatically. It is tucked inside when cutting is not
performed.
1-12
[2]
[3]
[6]
[7]
F-1-11
[1]
[4]
[5]
0013-4655
