Dimplex CHT20LE Installation And Operating Instructions

Dimplex Cheriton Fire
Model : CHT20LE

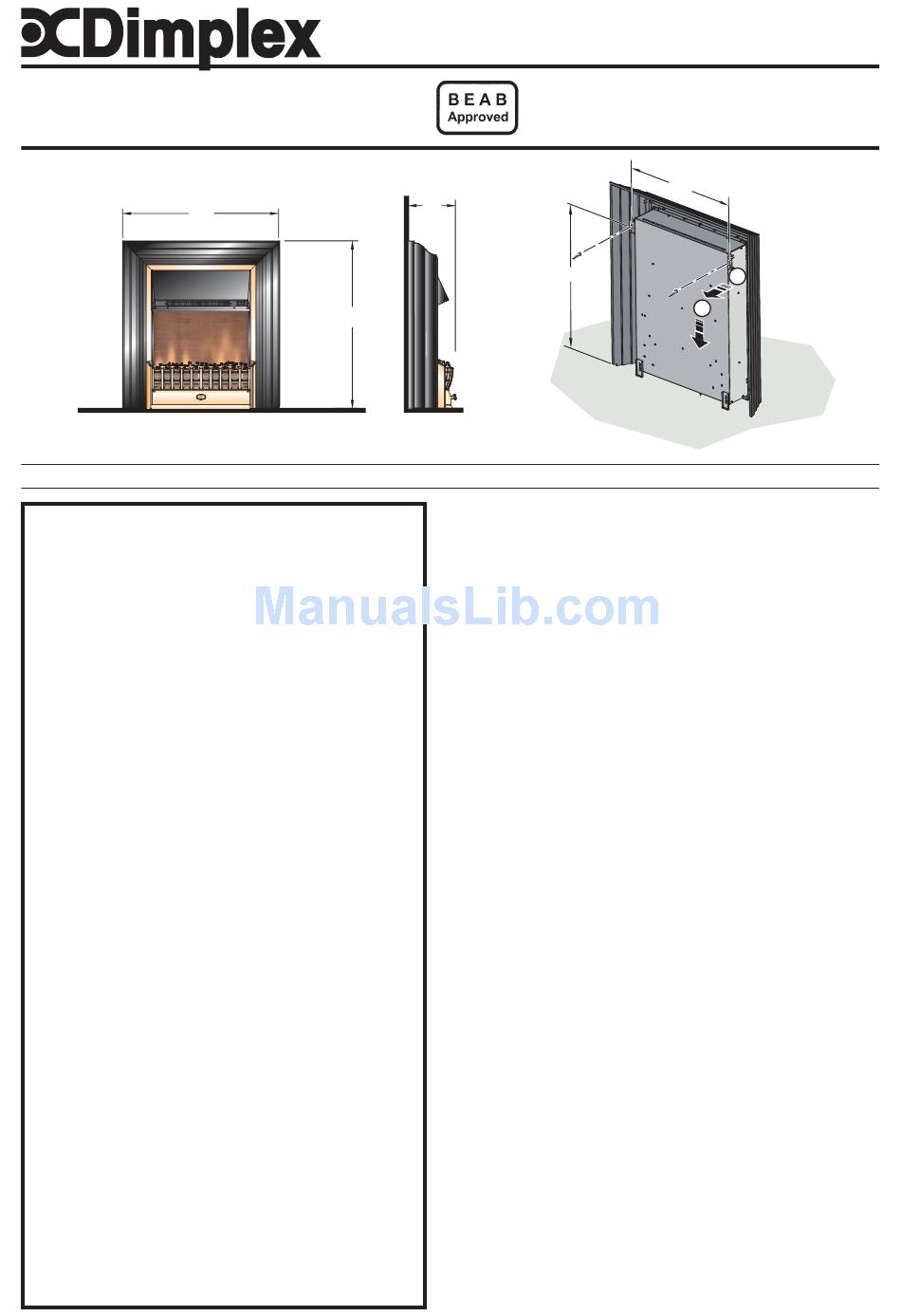

Dimensions
(millimetres)
IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
Important Safety Advice
When using electrical appliances, basic precautions
should always be followed to reduce the risk of fire,
electrical shock and injury to persons, including the
following:
If the appliance is damaged, check with the supplier
before installation and operation.
Do not use outdoors.
Do not use in the immediate surroundings of a bath,
shower or swimming pool.
Do not locate the heater immediately below a fixed socket
outlet or connection box.
This appliance is not intended for use by children or other
persons without assistance or supervision if their
physical, sensory or mental capabilities prevent them
from using it safely. Children should be supervised to
ensure that they do not play with the appliance.
Do not use this heater in series with a thermal control, a
program controller, a timer or any other device that
switches on the heat automatically, since a fire risk exists
when the heater is accidentally covered or displaced.
Ensure that furniture, curtains or other combustible
material are positioned no closer than 1 metre from the
heater.
In the event of a fault unplug the heater.
Unplug the heater when not required for long periods.
Although this heater complies with safety standards, we
do not recommend its use on deep pile carpets or on
long hair type of rugs.
The appliance must be positioned so that the plug is
accessible.
If the supply cord is damaged it must be replaced by the
manufacturer or service agent or a similarly qualified
person in order to avoid a hazard.
Keep the supply cord away from the front of the heater.
WARNING: In order to avoid overheating, do not cover the
heater. Do not place material or garments on the heater,
or obstruct the air circulation around the heater. The
heater carries the Warning symbol indicating that it must
not be covered.
639
682

Installation and Operating Instructions

194
536
General
Unpack the heater carefully and retain the packaging for possible
future use, in the event of moving or returning the fire to your supplier.
Loose coals are packed separately within the carton. When the
heater is assembled the coals are placed on top of the fuel bed
The fire incorporates a flame effect, which can be used with or
without heating, so that the comforting effect may be enjoyed at any
time of the year. Using the flame effect on its own only requires little
electricity.
These models are designed to be free standing and are normally
positioned against a wall.
Before connecting the heater check that the supply voltage is the
same as that stated on the heater.
Please note: Used in an environment where background noise is
very low, it may be possible to hear a sound which is related to the
operation of the flame effect. This is normal and should not be a
cause for concern.
Electrical
WARNING – THIS APPLIANCE MUST BE EARTHED.
This heater must be used on an AC ~ supply only and the voltage
marked on the heater must correspond to the supply voltage.
Before switching on, please read the safety warnings and operating
instructions.
Wall fixing
- see Fig. 1
Drill holes using a 6mm drill as illustrated. Insert plugs and screws.
The raw plug supplied is suitable for use in block walls (special
fasteners required on stud walls). Do not fully tighten screws, leave
the head of the screw at least 10mm away from the wall. Place the
keyhole slots on the fire over the screws and lower into position.
Controls
- see Fig. 2
Three switches provide a choice of heat settings. A switch is in the
ON position when the side with the markings on (i.e. I, I, or II) is
pushed in.
Switch 1 (I) Controls the electricity supply to the heater and
flame effect.
Note: This switch must be in the ON (I) position for heater to operate
with or without heat.
Switch 2 (I) Provides 1kW heat output
Switch 3 (II) Provides 2kW output with switch 2
08/50373/0 Issue 0
424
A
B
Fig. 1
