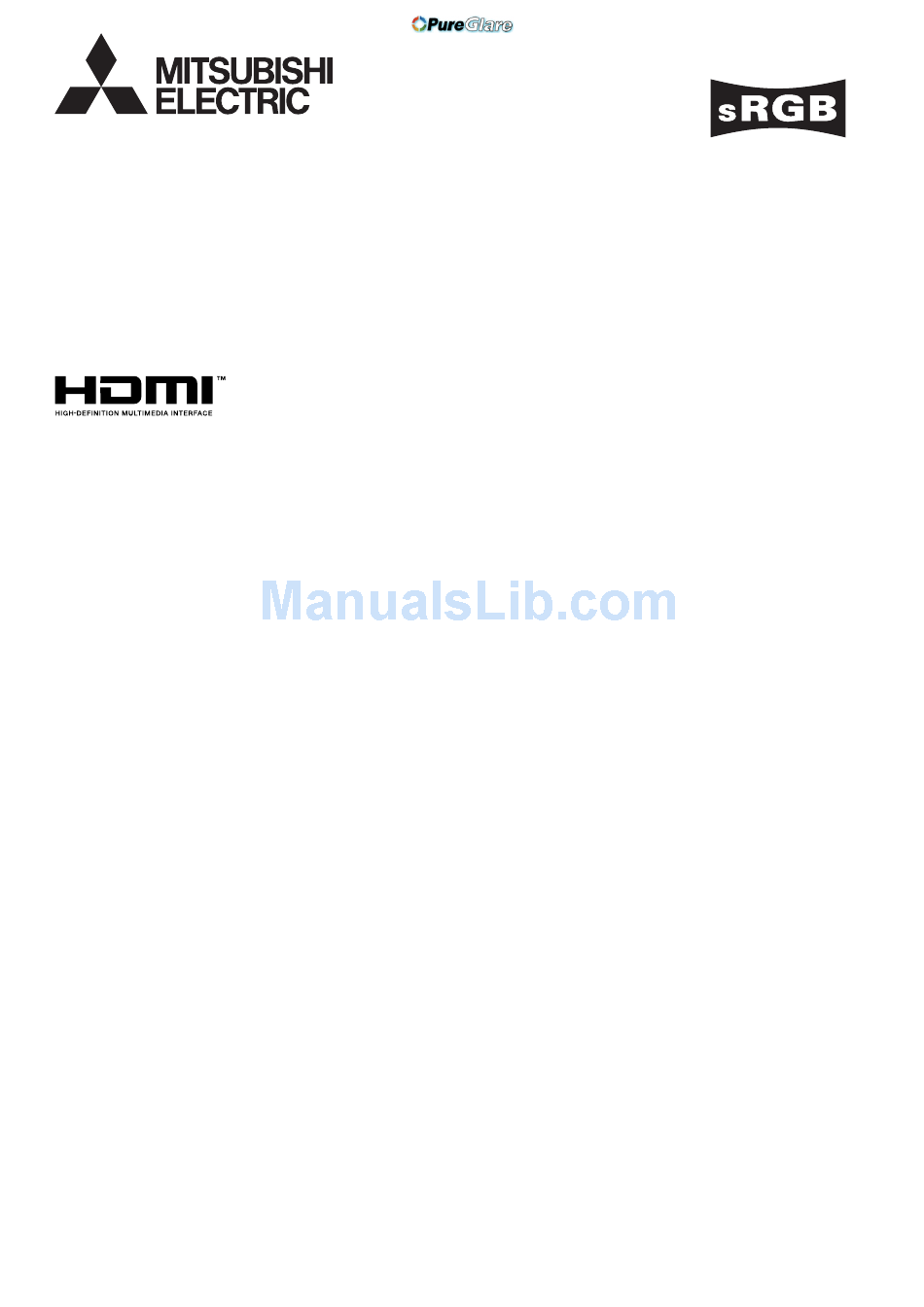

Page 1: User Manual
DLP™ PROJECTOR MODEL WD3300U User Manual WD3300 This User Manual is important to you. Please read it before using your projector. http://www.pureglare.com.au... - Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”...
-
Page 3: Table Of Contents
Contents Important safeguards ........................4 Preparing your projector ........................6 Using the remote control ........................9 Setting up your projector .........................10 Viewing computer images .......................13 Viewing video images ........................20 Menu operation ..........................25 Adjusting projected images ......................33 Advanced features ..........................37 Indicators ............................41 Replacing the lamp .........................42 Maintenance ............................44 Troubleshooting ..........................45 Specifications ..........................49... -
Page 4: Important Safeguards
Important safeguards Please read all these instructions regarding your 10. Power sources projector and retain them for future reference. Follow This projector should be operated only from the all warnings and instructions marked on the projector. type of power source indicated on the marking label. - Page 5 Important safeguards (continued) WARNING: Do not insert your fingers in the space between the lens and the cabinet. Unplug immediately if there is something The lens may shift causing injury or damage to the wrong with your projector. projector. Do not operate if smoke, strange noise or odor comes Do not block the air inlet and outlet grilles.
-
Page 6: Preparing Your Projector
Preparing your projector Checking accessories The following accessories are provided with this projector. Check to be sure that all of the accessories are packed in the package. Cables Power supply parts Mini D-SUB D-SUB 15-pin 9-pin Mini D-SUB D-SUB 15-pin 9-pin RS-232C cable RGB cable for PC... - Page 7 Preparating your projector (continued) Overview 1 Control area 2 Speaker 3 Air outlet grille 4 Lens 5 Remote control sensor (front) 6 Air inlet grille 7 Remote control sensor (rear) 8 Lamp cover 9 Terminal panel 10 Air outlet grille Caution: Do not replace the lamp immediately after using the projector because the lamp would...
-
Page 8: Bottom Side
Preparating your projector (continued) Bottom side 1 Adjustment feet Remote control 1 Laser aperture 2 Transmission window 3 Wired remote control jack 4 Indicator 5 HDMI button 6 POWER button 7 COMPUTER 1, 2 buttons 8 ZOOM/FOCUS button 9 LENS SHIFT button 10 Mouse pointer KEYSTONE AUTO POSITION 11 PAGE UP and PAGE DOWN buttons... -
Page 9: Using The Remote Control
Using the remote control Operational range of the remote control Front of projector Rear of projector 30° 30° 30° 30° Operate the remote control within a distance of 10 m (30 feet) from the projector, pointing the light beam at the remote control photo-sensor (front or rear) of the projector. -
Page 10: Setting Up Your Projector
Setting up your projector Setting up the screen Install the screen perpendicularly to the projector. If the screen can not be installed in such a way, adjust the projection angle of the projector. (See page 11.) • Install the screen and projector so that the projector’s lens is placed at the same height and horizontal position of the screen center. • Do not install the screen where it is exposed to direct sunlight or lighting. Light directly reflecting on the screen makes the projected images whitish and hard to view. -
Page 11: Adjusting The Position Of The Projected Image
Setting up your projector (continued) Adjusting the position of the projected image To adjust the positions of the projector and the screen, use LENS SHIFT button. 1. Press the LENS SHIFT button. • The LENS SHIFT menu appears at the center of the screen. LENS SHIFT 2. -
Page 12: Rear Projection
Setting up your projector (continued) Front projection, ceiling mounting Rear projection For ceiling mounting, you need the ceiling mount Ask a specialist for installation. For details, consult kit designed for this projector. Ask a specialist for your dealer. installation. For details, consult your dealer. • The warranty on this projector does not cover any damage caused by use of any non-recommended ceiling mount kit or installation of the ceiling mount... -
Page 13: Viewing Computer Images
Viewing computer images A. Connecting the projector to a computer Preparation: • Make sure that the power of the projector and that of the computer are turned off. • When connecting the projector to a desktop computer, disconnect the RGB cable that is connected to the monitor. Computer For analog connection: (For using the COMPUTER/COMPONENT VIDEO IN-1 terminal.) COMPUTER/ 1. Connect one end of the supplied RGB cable to the COMPONENT COMPUTER/COMPONENT VIDEO IN-1 terminal of the VIDEO IN-1 projector. - Page 14 Viewing computer images (continued) For monitor connection: 1. Connect the RGB cable from the monitor to the MONITOR Monitor OUT terminal of the projector. • No video signal is output from the MONITOR OUT terminal during power standby. MONITOR OUT RGB cable For audio output connection: 1. Connect one end of a commercially available audio cable to the AUDIO OUT terminal of the projector.
- Page 15 Viewing computer images (continued) C. Installing the terminal cover This projector includes a terminal cover. If necessary, install the terminal cover to the projector. 1. Fit two hooks of the terminal cover into the projector. 2. Tighten the attachment screws (a) firmly. Important: • Don’t carry the projector by the terminal cover.
- Page 16 Viewing computer images (continued) D. Projecting images Preparation: • Remove the lens cap. Main power switch POWER button POWER indicator POWER button STATUS indicator COMPUTER 1, 2 buttons DVI-D(HDCP) ENTER button button ZOOM/FOCUS button COMPUTER/ LENS SHIFT button DVI-D button , , , buttons , , , ...
-
Page 17: To Stop Projecting
Viewing computer images (continued) 9. Press the ZOOM/FOCUS button to display the ZOOM/FOCUS menu. 10. Adjust with the or button to get an approximate size. • When the ENTER button is pressed while the ZOOM/FOCUS menu is displayed, the adjustment mode is switched between FAST and STEP. When FAST is selected, the speed of zoom controlled by the or button becomes fast, and it becomes slow when STEP is selected. - Page 18 Viewing computer images (continued) AV mute The video and audio signals are temporarily muted when the AV MUTE button is pressed. To cancel muting, press the AV MUTE button again. • It takes several seconds before muting is completely canceled. • If AV MUTE MODE in the INSTALLATION menu is set to IMAGE, the splash screen will appear when the AV MUTE button is pressed. • You can alter the splash screen optionally. See page 37. • The audio from the AUDIO OUT terminal is also muted by pressing the AV MUTE button. AUTO POSITION button When the image supplied from the computer is displaced, carry out the following procedure.
-
Page 19: Setting The Aspect Ratio
Viewing computer images (continued) Setting the aspect ratio You can change the aspect ratio of the input video signal (or the ratio of width to height of the image). Change the setting according to the type of the screen to be used or your preference. How to change the settings: With the remote control: 1. -
Page 20: Viewing Video Images
Viewing video images A. Connecting the projector to video equipment Preparation: • Make sure that the power of the projector and that of the video equipment are turned off. Connecting to a video player, etc. Video player, or the like 1. - Page 21 Viewing video images (continued) Projector + DVD player or HDTV decoder Some DVD players have an output connector for 3-line fitting (Y, C ). When connecting such DVD player with this projector, use the COMPUTER/COMPONENT VIDEO IN-2 terminals. BNC cable (option) COMPUTER/COMPONENT VIDEO IN-2 BNC-RCA connector (option)
- Page 22 Viewing video images (continued) Connection (for video equipment having a DVI-D terminal) Equipment having a DVI-D terminal To audio output To DVI-D terminal terminals AUDIO DVI-D COMPUTER/COMPONENT VIDEO DVI-D IN (HDCP) DVI cable (option) Audio cable (option) • For connection to the DVI-D terminal, use a commercially available DVI cable. • Use AUDIO DVI-D terminal for audio input. • Some cables may not be connected correctly depending on the size and shape of their connectors.
- Page 23 Viewing video images (continued) D. Projecting images Preparation: • Remove the lens cap. Main power switch POWER button HDMI button POWER indicator POWER button STATUS indicator COMPUTER 1, 2 buttons VIDEO button S-VIDEO button ENTER button ZOOM/FOCUS button COMPUTER/ DVI-D(HDCP) button LENS SHIFT button DVI-D button VIDEO/HDMI button , , , ...
- Page 24 Viewing video images (continued) 11. Press the LENS SHIFT button. The LENS SHIFT menu appears at the center of the screen. 12. Press the or button to adjust the vertical position and or button to adjust the horizontal position of the displayed image.
-
Page 25: Menu Operation
Menu operation You can make various settings using the displayed menus. Menu display mode and menu type There are two menu display modes: QUICK MENU mode and DETAIL MENU mode. Each mode has the following menus. Menus displayed in the QUICK MENU mode The QUICK MENU contains frequently used setting items and the INFOMATION menu shows the projector condition. - Page 26 Menu operation (continued) Basic procedure for setting the menus Changing from the QUICK MENU mode to the DETAIL MENU mode 1. Press the MENU button. • The menu selection bar is displayed in the 1. Display the QUICK MENU according to steps 1 to 3 QUICK MENU mode. described on the left.
- Page 27 Menu operation (continued) Settings of each menu item Menus displayed in the QUICK MENU mode QUICK MENU QUICK MENU COLOR AUTO ENHANCER CONTRAST BRIGHTNESS COLOR TEMP. STANDARD SHARPNESS LAMP MODE STANDARD ASPECT NORMAL (FULL) COLOR SELECT COLOR USER MENU DETAIL MENU ITEM SETTING FUNCTION...
- Page 28 Menu operation (continued) Menus displayed in the QUICK MENU mode and the DETAIL MENU mode INFORMATION menu INFORMATION LAMP TIME (LOW) INPUT COMPUTER2 RESOLUTION 1024 x 768 VERTICAL 75.04 Hz FREQUENCY HORIZONTAL 60.02 KHz FREQUENCY SYNC. TYPE 5WIRE ITEM DESCRIPTION LAMP TIME (LOW) This item shows a lamp operating time (hour) calculated based on that LAMP MODE is LOW.
- Page 29 Menu operation (continued) Menus displayed in the DETAIL MENU mode IMAGE menu opt. opt. IMAGE IMAGE COLOR ADVANCED MENU AUTO ENHANCER NOISE REDUCTION CONTRAST BRIGHTNESS INPUT LEVEL COLOR TEMP. STANDARD COLOR TINT SHARPNESS ADVANCED MENU ITEM SETTING FUNCTION COLOR ENHANCER AUTO Select to optimize the settings automatically depending on the input signal.
- Page 30 Menu operation (continued) INSTALLATION menu opt. opt. INSTALLATION INSTALLATION LENS LOCK LAMP MODE STANDARD ZOOM/FOCUS STANDBY MODE STANDARD LOCK AUTO POWER LENS SHIFT LOCK AUTO POWER LENS SHIFT RESET IMAGE CAPTURE SPLASH SCREEN BACK COLOR BLUE AV MUTE MODE BLACK IMAGE REVERSE LENS LOCK ITEM...
- Page 31 Menu operation (continued) FEATURE menu opt. FEATURE ASPECT NORMAL (FULL) PASSWORD DISPLAY INPUT FUNCTION MENU POSITION AUTO CINEMA MODE VIDEO SIGNAL AUTO SETUP AUTO SCART INPUT LANGUAGE English Ë RESET ALL ITEM SETTING FUNCTION ASPECT NORMAL (FULL) Input video signal is displayed at the max height (800 pixels) or max width (1280 pixels) of the panel while its aspect ratio is maintained.
- Page 32 Menu operation (continued) SIGNAL menu opt. opt. opt. SIGNAL SIGNAL SIGNAL RESOLUTION (MEMORIZE) USER MEMORY CALL AUTO RESOLUTION VERTICAL 1024 x 768 75.04 Hz CLAMP POSITION (MEMORIZE FREQUENCY HORIZONTAL HORIZ. POSITION 60.02 KHz CLAMP WIDTH FREQUENCY HORIZ. PIXELS 1024 VERT. POSITION VERT.
-
Page 33: Adjusting Projected Images
Adjusting projected images To adjust the brightness (CONTRAST and BRIGHTNESS): You can make adjustments for the brightness of the projected image using the menu. (See page 26 for menu setting.) 1. Display the QUICK MENU or IMAGE menu. 2. Select CONTRAST or BRIGHTNESS by pressing the or button. 3. -
Page 34: About Color Temperature
Adjusting projected images (continued) To cancel the menu: 7. Press the MENU button. To enable the stored color temperature: 1. Set COLOR TEMP. to USER in the QUICK MENU or set it to USER in the IMAGE menu. About color temperature There are different kinds of white color. -
Page 35: How To Adjust The Computer Image
Adjusting projected images (continued) How to adjust the computer image This projector automatically selects a proper signal format according to the type of video signal supplied from the computer. However, video signals from the computer may not be projected correctly depending on the types of the computer and images to be projected. -
Page 36: Simple Method To Adjust The Image Position
Adjusting projected images (continued) How to adjust the image supplied from the computer using the menu: Carry out the following procedures according to the symptoms. Wide strips appear. ��������������� Adjust TRACKING in the SIGNAL menu. The projected image flickers. The projected image is blurred........Adjust FINE SYNC. in the SIGNAL menu. The projected image is displaced horizontally. -
Page 37: Advanced Features
Advanced features Setting of the image displayed • You can’t set IMAGE CAPTURE when PASSWORD FUNCTION in the FEATURE menu has been set to during startup or muting SPLASH ID SCREEN to enable the password lock. You can display your desired image as the startup screen (or splash screen). Using the menu, you can Freeze also use such image as a background that is displayed To stop the motion in the image temporarily (or to... -
Page 38: Password Function
Advanced features (continued) Password function 8. Enter the password again for confirmation using the same steps. This projector is equipped with the password function 9. Press the ENTER button. that is designed for prevention of wrong operation by • If the entered passwords don’t match, an error children and restriction on operation by other than message will appear. -
Page 39: Mouse Remote Control
Advanced features (continued) Mouse remote control By connecting to personal computer through the USB port, you can operate your computer with the projector remote control. Projector + computer with USB connector To USB port USB cable (option) USB 4-pin USB 4-pin (type A) (type B) • You can use the mouse remote control function with a computer supporting USB only. -
Page 40: Supervising And Controlling By Computer
The User Manual for LAN Control Utility is prepared in the Portable Document Format (PDF) in the CD-ROM. Opening the User Manual: 1. Load the CD-ROM into the CD-ROM drive. 2. Open CD-ROM “WD3300U.” 3. Double-click on “MANUAL_LAN.HTML” within the CD-ROM. A language selection list for the User Manual will be displayed. -
Page 41: Indicators
Indicators This projector has 2 indicators, each of which shows the operation condition of the projector. The following offer solutions to possible problems. If these problems persist, turn the projector off and consult your dealer. POWER indicator STATUS indicator Normal condition POWER STATUS CONDITION... -
Page 42: Replacing The Lamp
Replacing the lamp This projector is equipped with a lamp to project images. This lamp is a consumable. It may burn out or its brightness may decrease during use. In such cases, replace the lamp with a new one as soon as possible. Be sure to replace the lamp with a new lamp separately sold that is exclusive to this projector. - Page 43 Replacing the lamp (continued) To replace the lamp: 8. Tighten up the screws (c) using a Phillips screwdriver (+). 1. Turn off the main power switch and unplug the power cord. 2. Loosen the screw (a) using a Phillips screwdriver (+), and remove the lamp cover (b). 9.
-
Page 44: Maintenance
Replacing the lamp (continued) When removing the lamp from the ceiling-mounted projector When removing the lamp from the ceiling-mounted projector, use the lamp replacement tray packed with the projector or option lamp to prevent glass fragments from scattering. • Assemble the lamp replacement tray according to the procedure shown on it. 1. -
Page 45: Troubleshooting
Troubleshooting Before asking for repair of the projector, check the following. If the symptom persists, stop using the projector, be sure to unplug the power plug, and then contact your dealer. No image appears on the screen. Problem Solution Power can not be • Check whether the indicators are on or off and how they are lightning. - Page 46 Troubleshooting (continued) No image appears on the screen. (continued) Problem Solution “NO SIGNAL” is • Turn on the power of the connected device, or check whether there is something displayed. wrong with the connected device. • Check whether the external device output signals. (Check this especially when the external device is a notebook computer.) • Check that the cable connected to the external device isn’t defective. • Check that the projector is connected to the external device using the correct terminals. • Check that the connected device is correctly selected as the input source. • When an extension cord is being used, replace it with the supplied cable and check whether images are projected correctly. If images are projected correctly, use an RGB signal amplifier along with the extension cord.
- Page 47 Troubleshooting (continued) Images are not displayed correctly. (continued) Problem Solution Different color tint. • When comparing images projected by two projectors, tints in the displayed images may be different because of variation between their optical components. This is not a malfunction. • When comparing the image projected by this projector with those displayed on the television or PC monitor, tints in the displayed images may be different because of difference in the range of color reproducibility.
- Page 48 Troubleshooting (continued) If the following problem occurs after the lamp is replaced, check the following first. Problem Solution The projector does not • Fit the lamp cover securely. (See pages 42 and 43.) turn on. • Reset the lamp operating time. (See page 43.) The STATUS indicator • Reset the lamp operating time. (See page 43.) blinks. Kensington Lock This projector has a Kensington Security Standard connector for use with Kensington MicroSaver Security System. Refer to the information that came with the Kensington System for instructions on how to use it to secure the projector.
-
Page 49: Specifications
Specifications The specifications and outside appearance of the projector are subject to change without prior notice. Type DLP™ projector Model WD3300U Display technology 0.65-inch Single chip DMD Pixel 1280 x 800 = 1024000 pixels Projection lens F 2.0 - 2.4 f= 24.5 - 33.1 mm... - Page 50 Specifications (continued) Specification of RGB signals in each computer mode of the projector Signal mode Resolution Horizontal Vertical frequency Normal mode Real mode (H x V) frequency (kHz) (Hz) (H x V) (H x V) TV60, 480i (525i) 15.73 59.94 1066 x 800 TV50, 576i (625i) 15.63...
- Page 51 Specifications (continued) Specification of RGB signals in each computer • This projector doesn’t support 480p signals from mode of the projector (continued) video devices having 4 lines (R, G, B, CS*) or having 5 lines (R, G, B, H, V). Important: * : Composite Sync • Some computers aren’t compatible with the projector.
- Page 52 MITSUBISHI ELECTRIC CORPORATION 1 Zusho Baba, Nagaokakyo-City, Kyoto Japan http://www.pureglare.com.au...
