EnGenius ECB600 User Manual

EnGenius ECB600 User Manual

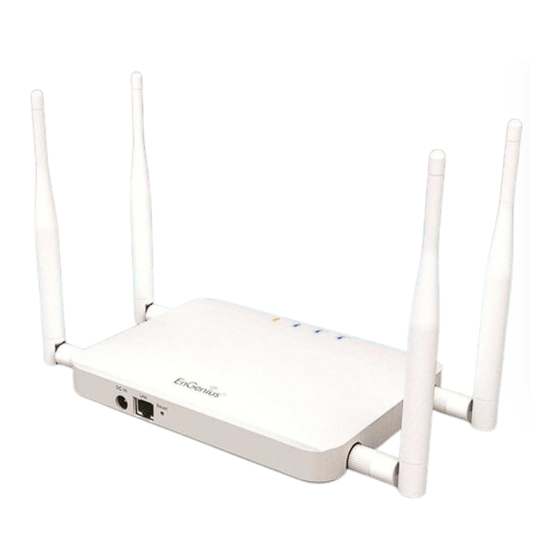

Ecb600 wireless n indoor access point?client bridge
Hide thumbs Also See for ECB600:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for EnGenius ECB600

Summary of Contents for EnGenius ECB600

  • Page 2: Table Of Contents

    Table of Contents Introduction ..................................5 Before you Begin ................................10 Configuring Your ECB600............................... 18 Building a Wireless Network ............................21 Status ....................................26...
  • Page 3 System ....................................34 2.4G/5G Wireless................................41 Management..................................64...
  • Page 4 Appendix A – FCC Interference Statement .......................... 91 Appendix B – IC Interference Statement ..........................92 Appendix C – CE Interference Statement..........................94...
  • Page 5 Revision History Version Date Notes...

  • Page 6: Introduction

    1 Introduction ECB600...

  • Page 7: Features And Benefits

    Offers an additional layer of protection within the network by isolating specific client users. Power-over-Ethernet (IEEE802.3at/af) Allows installers to deploy the ECB600 in locations via a PoE connection (Ethernet cable) where a power outlet may not be available. Save User Settings...

  • Page 8: Package Contents

    IPv6 Address support ECB600 supports IPv6, you can use IPv6 address in ECB600. Band Steering When Band Steering is activated dual-band client devices are associated to the ECB600 access point on the 5 GHz frequency band. 1.2 Package Contents 1.3 System Requirements...
  • Page 9 1.4 Applications a) Difficult-to-Wire Environments b) Temporary Workgroups c) The Ability to Access Real-Time Information d) Frequently Changing Environments e) Small Office and Home Office (SOHO) Networks f) Wireless Extensions to Existing Ethernet-based Networks...
  • Page 10 g) Training/Educational Facilities...

  • Page 11: Before You Begin

    2 Before you Begin 2.1 Considerations for Wireless Installation...
  • Page 12 2.2 Computer Settings (in Windows XP/Windows 7) Start Control Panel...
  • Page 13 Windows XP Network Connections Windows 7 View Network Status and Tasks Network and Internet Change adapter settings Local Area Connection Properties...
  • Page 14 Internet Protocol Version 4 (TCP/IPv4) Properties Use the following IP address Note:...
  • Page 15 2.3 Computer Settings in Apple Mac OS X System Preferences Applications Network Internet & Network Ethernet Configure IPv4 Manually Note: Apply...

  • Page 16: Hardware Installation

    2.4 Hardware Installation POWER 2.4GHz/5GHz WLAN LAN (Computer/ECB600 Connection)
  • Page 18 Front Panel LED Lights LED lights for Power, Gigabit Ethernet port, WLAN 2.4G and WLAN 5G. Rear Panel Power DC IN for Power. Gigabit Ethernet Port Gigabit Ethernet port for RJ-45 cable. Reset Button One click for reset the device. Press over 10 seconds for reset to factory default.

  • Page 19: Configuring Your Ecb600

    3 Configuring Your ECB600 3.1 Default Settings Default Settings...

  • Page 20: Web Configuration

    3.2 Web Configuration http://192.168.1.1 Note: If you have changed the default LAN IP Address of the Access Point, ensure you enter the correct IP Address. admin Login...

  • Page 22: Building A Wireless Network

    4 Building a Wireless Network 4.1 Access Point Mode...
  • Page 23 4.2 Client Bridge Mode...
  • Page 24 4.3 WDS AP / WDS Station Mode Note: WDS Station Mode does not support Access Point feature.

  • Page 25: Wds Bridge Mode

    4.4 WDS Bridge Mode Note: WDS Bridge Mode does not act as an Access Point. Access Points linked by WDS are using the same frequency channel. More Access Points connected together may lower throughput. This configuration can be susceptible to generate endless network loops in your network, so it is recommended to enable the Spanning Tree setting (see 6.3 Spanning Tree Setting, below) to prevent this from happening.
  • Page 26 4.5 Repeater mode...

  • Page 27: Status

    Status Status Main 2.4G/5G Wireless Client List 2.4G/5G Connection Status 2.4G/5G WDS Link List System Log 5.1 Save/Reload Unsaved changes list...
  • Page 28 5.2 Main Main Status Home System Information Note:...
  • Page 29 LAN Settings Current 2.4G/5G Wireless Settings Note:...
  • Page 31 5.3 2.4G/5G Wireless Client List 2.4G/5G Wireless Client List Status Kick Refresh Note: Only applicable in Access Point, WDS AP, and Repeater mode.
  • Page 32 5.4 2.4G/5G Connection Status 2.4G/5G Connection Status Status Note: Only applicable in Client Bridge, WDS Station and Repeater mode.
  • Page 33 5.5 2.4G/5G WDS Link List 2.4G/5G WDS Link List Status Note: Only applicable in WDS AP and WDS Bridge mode.

  • Page 34: System Log

    5.6 System Log System Log Status System Log Refresh Update the log. Clear Clear the log.

  • Page 35: Operation Mode

    6 System 6.1 Operation Mode System Properties Device Name Enter a name for the device. The name you type appears in SNMP management. This name is not the SSID and is not broadcast to other devices. Country/Region Select a Country/Region to conform to local regulations. Operation Mode Use the radio button to select an operating mode.
  • Page 36 2.4GHz Access Point Client Bridge WDS AP WDS Bridge WDS Station Repeater 5GHz Access Point Client Bridge WDS AP WDS Bridge WDS Station Repeater...
  • Page 37 6.2 IP Settings IP Settings IP Network Setting Select whether the device IP address will use the static IP address specified in the IP Address...
  • Page 38 field or be obtained automatically when the device connects to a DHCP server. IP Address The IP Address of this device. IP Subnet Mask The IP Subnet Mask of this device. Default Gateway The Default Gateway of this device. Leave it blank if you are unsure of this setting. Primary / Secondary DNS The primary / secondary DNS address for this device.

  • Page 39: Spanning Tree Setting

    6.3 Spanning Tree Setting Spanning Tree Spanning Tree Status Enable or disable the Spanning Tree function. Bridge Hello Time Specify Bridge Hello Time, in seconds. This value determines how often the device sends handshake packets to communicate information about the topology throughout the entire Bridged Local Area Network.
  • Page 40 Priority Specify the Priority Number. A smaller number has greater priority. Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and return previous settings.
  • Page 41 6.4 Band Steering Enable Save/Apply...
  • Page 42 7 2.4G/5G Wireless 7.1 Wireless Network Access Point / WDS AP mode:...
  • Page 43 2.4G/5G Wireless Network (Access Point / WDS AP mode) Wireless Mode Wireless mode supports 802.11b/g/n mixed mode in 2.4G and 802.11a/n mixed mode in 5G. Channel HT Mode The default channel bandwidth is 20/40MHz. The larger the channel, the better the transmission quality and speed.
  • Page 44 Auto Check this option to enable auto-channel selection. AP Detection AP Detection can select the best channel to use by scanning nearby areas for Access Points. Current Profile Configure up to eight different SSIDs (four in WDS AP mode). If many client devices will be accessing the network, you can arrange the devices into SSID groups.
  • Page 45 2.4G/5G SSID Profile SSID Specify the SSID for the current profile. Suppressed SSID Check this option to hide the SSID from clients. If checked, the SSID will not appear in the site survey. Station Separation Click the appropriate radio button to allow or prevent communication between client devices. Wireless Security See the Wireless Security section.
  • Page 46 Client Bridge / WDS Station / Repeater mode:...
  • Page 47 2.4G/5G Wireless Network (Client Bridge / WDS Station / Repeater mode) Wireless Mode Wireless mode supports 802.11b/g/n mixed mode in 2.4G and 802.11a/n mixed mode in 5G. SSID The SSID is a unique named shared amongst all the points of the wireless network. The SSID must be identical on all points of the wireless network and cannot exceed 32 characters.

  • Page 48: Wireless Security

    7.2 Wireless Security WEP Encryption: WEP Encryption Auth Type Select Open System or Shared Key. Input type ASCII: Regular Text (recommended) HEX: Hexadecimal Numbers (For advanced users) Key Length Select the desired option and ensure the wireless clients use the same setting. Choices are 64, 128, 152-bit password lengths.
  • Page 49 Key; the other Keys are for decryption only. You must enter a Key Value for the Default Key. Encryption Key # Enter the key value or values you wish to use. Only the Key selected as Default is required. The others are optional.
  • Page 50 WPA Encryption: Only in Access Point / WDS AP mode WPA Encryption Encryption Select the WPA encryption type you would like. Please ensure that your wireless clients use the same settings. Radius Server Enter the IP address of the Radius server. Radius Port Enter the port number used for connections to the Radius server.
  • Page 51 Radius Accounting Secret Enter the secret required to connect to the Radius accounting server. Interim Accounting Interval Specify how often, in seconds, the accounting data sends. Note WPA Encryption: Client Bridge / WDS Station mode WPA Encryption Encryption Select the WPA encryption type: TKIP or AES. EAP Method Select EAP Method: PEAP or TTLS.

  • Page 52: Site Survey

    7.3 Site Survey Note: Only applicable in Client Bridge, WDS Station and Repeater mode. Site Survey...
  • Page 54 Site Survey (Client Bridge / WDS Station / Repeater mode) BSSID Access Point's wireless MAC address. SSID SSID that the Access Point is broadcasting. Channel Channel that the Access Point is using. Signal Level (dBm) Signal strength from the Access Point to your station. Type The band that the Access Point is using.
  • Page 55 Accept...

  • Page 56: Wireless Mac Filtering

    7.4 Wireless MAC Filtering Disable Wireless MAC Filter Note: Only applicable in Access Point, WDS AP and Repeater mode.
  • Page 57 Wireless MAC Filter (Access Point / WDS AP / Repeater mode) ACL Mode Determines whether network access is granted or denied to clients whose MAC addresses appear in the MAC Address table on this page. Choices are: Disabled, Deny MAC in the list, or Allow MAC in the list.
  • Page 58 7.5 Wireless Advanced Settings...
  • Page 59 Wireless Advanced Data Rate Select a data rate from the drop-down list. The data rate affects throughput of data in the ECB600. The lower the data rate, the throughput will be lower, but so will the transmission distance. Transmit Power Set the power output of the wireless signal.
  • Page 60 Aggregation Merges data packets into one packet. This option reduces the number of packets, but increases packet sizes. WMM Parameters WMM (Wi-Fi Multimedia) manages the priority of audio, video and voice data over a Wi-Fi network so that data from other applications are less likely to interfere with transmission. The parameters CWmin, CWmax and AIFS together control the priority of the four access categories (AC).
  • Page 61 7.6 WPS (Wi-Fi Protected Setup) Note: Only applicable in Access Point and WDS AP mode.
  • Page 62 WPS (Wi-Fi Protected Setup) Select to Enable or Disable the WPS feature. WPS Current Status Shows whether the WPS function is Configured or unConfigured. When it is Configured, the WPS has been used to authorize connection between the device and wireless clients.

  • Page 63: Wds Link Settings

    7.7 WDS Link Settings Note Also note To create a WDS network, please enter the MAC addresses of the Access Points that you want included in the WDS. There can be a maximum of four access points. Note: Only applicable in WDS AP and WDS Bridge mode.
  • Page 64 2.4G/5G WDS Link Settings Security Select None or WEP or AES from drop-down list. WEP Key Enter the key values you wish to use if selecting WEP. AES Passphrase Enter the key values you wish to use if selecting AES. MAC Address Enter the Access Point’s MAC address to which you want to extend the wireless area.
  • Page 65 8 Management 8.1 Administration admin admin Login Setting New Name Enter a new username for logging in to the New Name entry box. Old Password Enter the old password for logging in to the Old Password entry box. New Password Enter the new password for logging in to the New Password entry box.

  • Page 66: Management Vlan Settings

    8.2 Management VLAN Settings Note: Only applicable in Access Point and WDS AP mode.
  • Page 67 Click Accept to confirm the changes or Cancel to cancel and return previous settings. Note: 1. If you reconfigure the Management VLAN ID, you may lose your connection to the ECB600. Verify that the DHCP server supports the reconfigured VLAN ID and then reconnect to the ECB600 using the new IP address.
  • Page 68 VLAN Setup Save & Apply Save/Reload Status...
  • Page 69 Access Point...
  • Page 71 Edit...
  • Page 72 Management Management VLAN...
  • Page 73 Isolation Enable...
  • Page 75 8.3 Wireless Traffic Shaping...
  • Page 76 Wireless Traffic Shaping Enable Traffic Shaping Check this option to enable wireless traffic shaping. Incoming Traffic Limit Specify the wireless transmission speed used for downloading. 2.4G / 5G Setting Outgoing Traffic Limit Specify the wireless transmission speed used for uploading. Total Percentage It shows how much percentage has been used.
  • Page 77 8.4 SNMP Settings...
  • Page 78 SNMP SNMP Enable/Disable Enable or Disable SNMP feature. Contact Specify the contact details of the device Location Specify the location of the device. Community Name (Read Only) Specify the password for the SNMP community for read only access. Community Name Specify the password for the SNMP community with read/write access.
  • Page 79 Restore Saved Settings To restore settings that have been previously backed up, click Browse, select the file, and from A File click Restore. Revert to Factory Default Click Factory Default button to restore the ECB600 to its factory default settings. Settings...

  • Page 80: Firmware Upgrade

    8.6 Firmware Upgrade To perform the Firmware Upgrade: Browse Upgrade File Upload Note: The device is unavailable during the upgrade process and must restart when the upgrade is completed. Any connections to or through the device will be lost.

  • Page 81: Time Settings

    8.7 Time Settings Time Manually Set Date and Time Manually specify the date and time. Automatically Get Date and Select a time zone from the drop-down list and check whether you want to Time enter the IP address of an NTP server or use the default NTP server to get have the internal clock set automatically.
  • Page 82 8.8 Schedule Time Settings...
  • Page 83 Schedule Wifi Schedule Select to Enable or Disable schedule function. Schedule Name Enter the description of the schedule service. Service Select the type of schedule service, either Wireless Power ON or Wireless Power OFF. Select the days of the week to enable the schedule service. Time of Day Set the start time that the service is active.

  • Page 84: Cli Setting

    8.9 CLI Setting CLI Setting Select ON or OFF to enable or disable the ability to modify the ECB600 via a command line interface (CLI). Save/Apply / Cancel Click Save/Apply to apply the changes or Cancel to return previous settings.
  • Page 85 8.10 Log Syslog Enable or disable the syslog function. Log Server IP Address Enter the IP address of the log server. Local Log Enable or disable the local log service. Save/Apply / Cancel Click Save/Apply to apply the changes or Cancel to return previous settings.
  • Page 86 8.11 Diagnostics...
  • Page 87 Enter time period for the speed test. Check Interval Enter the interval for the speed test. Start Speed Test Click Start Speed Test to begin the speed test operation. IPv4 / IPv6 Port ECB600 use IPv4 port 5001 and IPv6 port 5002 for the speed test.

  • Page 88: Device Discovery

    8.12 Device Discovery Device Discovery Device Name Displays the name of the devices connected to the network. Operation Mode Displays the operation mode of the devices connected to the network. IP Address Displays the IP address of the devices connected to the network. System MAC Address Displays the system MAC address of the devices connected to the network.
  • Page 89 8.13 LED Control...
  • Page 90 8.14 Logout Logout Management...
  • Page 91 8.15 Reset Reboot the Device...
