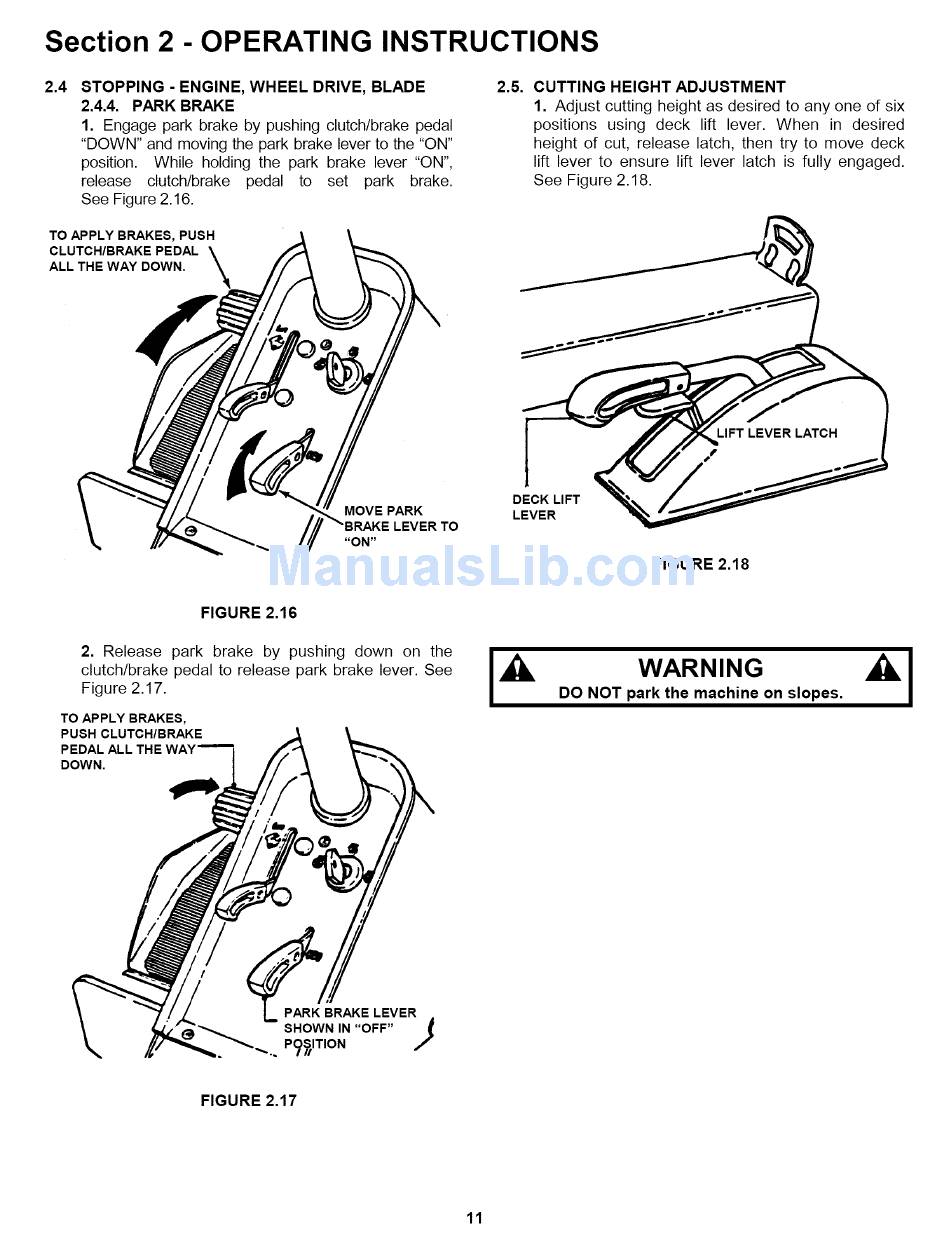

Snapper 421620BVE Safety instructions & operator's Manual page 11

Section 2 - OPERATING INSTRUCTIONS
2.4
STOPPING - ENGINE, WHEEL DRIVE, BLADE
2.4.4. PARK BRAKE
1. Engage park brake by pushing clutch/brake pedal
"DOWN" and moving the park brake lever to the "ON"
position. While holding the park brake lever "ON",
release clutch/brake pedal to set park brake.
See Figure 2.16.
TO APPLY BRAKES, PUSH
CLUTCH/BRAKE PEDAL _
ALL THE WAY DOWN.
2.5. CUTTING HEIGHT ADJUSTMENT
1. Adjust cutting height as desired to any one of six
positions using deck lift lever. When in desired
height of cut, release latch, then try to move deck
lift lever to ensure lift lever latch is fully engaged.
See Figure 2.18.
MOVE PARK
LEVER TO
"ON"
DECK LIFT
LEVER
FIGURE 2.18
FIGURE 2.16
2. Release park brake by pushing down on the
clutch/brake pedal to release park brake lever. See
Figure 2.17.
TO APPLY BRAKES,
PUSH CLUTCH/BRAKE
PEDAL ALL THE WAY_
DOWN.
WARNING
DO NOT park the machine on slopes,
PARK BRAKE LEVER
SHOWN IN "OFF" (
/
Pg/S/ITION
FIGURE 2.17
11
