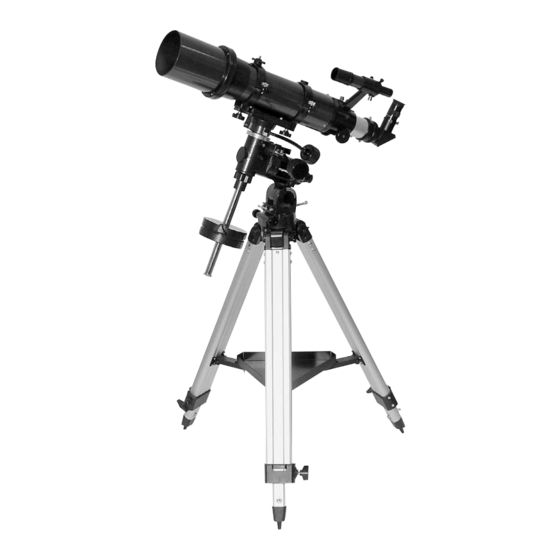

Orion AstroView 100 EQ Manual

#9862; 100mm equatorial refracting telescope
Hide thumbs Also See for AstroView 100 EQ:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual

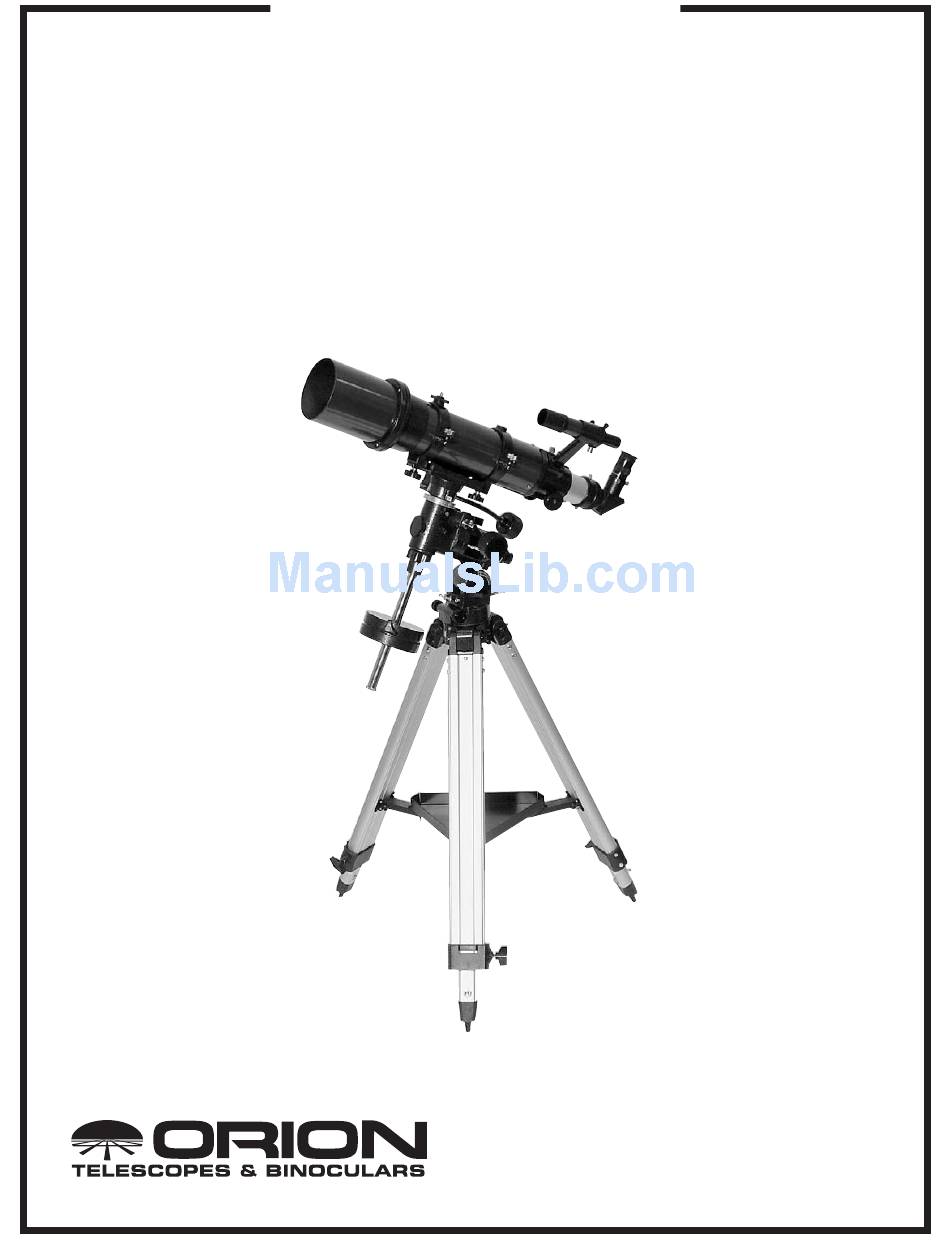

instruction Manual
orion
®
astroView 100 EQ
™
#9862
100mm Equatorial Refracting Telescope
customer support (800)‑676‑1343
E‑mail: support@telescope.com
corporate offices (831)‑763‑7000
89 Hangar Way, Watsonville, ca 95076
Providing Exceptional Consumer Optical Products Since 1975
IN 191 Rev. B 02/09

Advertisement

Table of Contents
loading

Related Manuals for Orion AstroView 100 EQ

Summary of Contents for Orion AstroView 100 EQ

  • Page 1 Manual orion ® astroView 100 EQ ™ #9862 100mm Equatorial Refracting Telescope customer support (800)‑676‑1343 E‑mail: support@telescope.com corporate offices (831)‑763‑7000 89 Hangar Way, Watsonville, ca 95076 Providing Exceptional Consumer Optical Products Since 1975 IN 191 Rev. B 02/09...
  • Page 2 Counterweight shaft Right Ascension (R.A.) Counterweight slow-motion control cable Counterweight lock knob Polar axis finder scope “Toe saver” Latitude scale Tripod leg Latitude adjustment T-bolts Accessory tray bracket Accessory tray Leg lock knob Figure 1. The AstroView 100 EQ Reflector.

  • Page 3: Table Of Contents

    Your new AstroView 100 EQ Reflector is designed for high-resolution viewing of astronomical objects. With its precision optics and equatorial mount, you’ll be able to locate and enjoy hundreds of fascinating celestial denizens, including the planets, Moon, and a variety of deep-sky galaxies, nebulas, and star clusters.
  • Page 4 Finder scope bracket Nylon thumbscrews Finder scope Tensioner Focusing lock ring Figure 2b. Pull-back on the tensioner and slide the finder scope into its bracket until the O-ring is seated in the bracket ring Figure 2a. The 6x30 finder scope Focus lock thumbscrew 5.

  • Page 5: Getting Started

    Figure 4a. Figure 4b. Proper operation of the equatorial mount requires that the telescope tube be balanced on the R.A. axis. (a) With the R.A. lock lever released, slide the counterweight along the counterweight shaft until it just counterbalances the tube. (b) When you let go with both hands, the tube should not drift up or down.

  • Page 6: Focusing The Telescope

    Finder scope west to east). An equatorial mount (Figure 6) is designed to The AstroView 100 EQ comes with a 6x30 achromatic finder compensate for that motion, allowing you to easily “track” the scope (Figure 2a). The number 6 means six-times magnifi-...

  • Page 7: Polar Alignment

    Polar axis finder scope Right Ascension setting circle Figure 6. The equaltorial mount of the AstroView 100 EQ. movement of astronomical objects, thereby keeping them from drifting out of the telescope’s field of view while you’re observing. Little Dipper...
  • Page 8 3. The R.A. setting circle is labeled in hours, from “0” to “23” (military time). For Northern Hemisphere observers, refer A feature of the AstroView 100 EQ is the polar axis finder to the top numbers on the setting circle. Each small line scope housed inside the R.A.
  • Page 9 Optional DC motor drive systems can be mounted on the represents 5° of longitude. Lines to the left of the “0” on the AstroView 100 EQ’s equatorial mount to provide hands-free meridian offset scale indicate east of the closest standard tracking.
  • Page 10 Dec. setting circle are negative. wish to locate a new object. Do so by calibrating the setting So, the coordinates for the Orion Nebula listed in a star atlas circle for the centered object before moving on to the next will look like this: one.

  • Page 11: Astronomical Observing

    Figure 10 This illustration shows the telescope pointed in the four cardinal directions (a) North, (b) South, (c) East, (d) West. Note that the tripod and mount have not been moved; only the telescope tube has moved on the R.A. and Dec. axes Depending on the altitude of the object you want to observe, “twinkle”, the atmosphere is significantly distorting the incom- the counterweight shaft will be oriented somewhere between...
  • Page 12 2" Eyepieces A feature of the AstroView 100 EQ is its ability to use either 1.25" or 2" barrel-diameter eyepieces. At low magnifications, 2" eyepieces can give a wider field of view than standard 1.25" eyepieces. This is especially desirable for observing deep-sky objects, as many of them appear quite large, but faint.
  • Page 13 NASA front opening of the AstroView 100 EQ. The primary attraction image of a deep-sky object in a lit room during the daytime, is sunspots, which change in shape, appearance, and location and seeing that same object in your telescope at night.

  • Page 14: Terrestrial Observing

    The AstroView 100 EQ’s optical tube has a If you would like to change the orientation of the camera rela- mounting block that will accept the 1/4"-20 threaded stud used tive to the telescope, do so by first loosening the thumbscrews on most camera tripods.

  • Page 15: Collimation

    Your AstroView100 EQ is now collimated. You should not need Your AstroView 100 EQ comes with a collimation tool. Figure to align the optics again unless the telescope is roughly han- 13 shows the collimation tool in place.

  • Page 16: Specifications

    Electronic drive: Optional one‑Year limited Warranty This Orion Product is warranted against defects in materials or workmanship for a period of one year from the date of purchase. This warranty is for the benefit of the original retail purchaser only. During this warranty period Orion Telescopes &...
