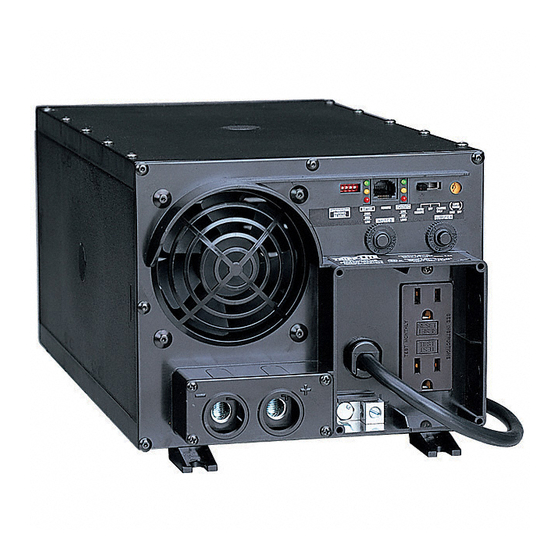

Tripp Lite PowerVerter APS Series Owner's Manual

Dc-to-ac inverter/chargers
Hide thumbs Also See for PowerVerter APS Series:
Table of Contents

Advertisement

Quick Links

Download this manual
APS Series
DC-to-AC Inverter/Chargers
Input
Invert:
12, 24, 36 or 48 VDC
Charge:
120V, 60 Hz. AC
Reliable Emergency Backup Power
Congratulations! You've purchased the most advanced, feature-rich Inverter/Charger designed as an alternative energy source during utility
power failures. Tripp Lite APS Inverter/Chargers keep your equipment constantly up and productive through all utility power problems (blackouts,
brownouts and high voltages) by inverting DC power from user-supplied batteries into AC power. Built-in surge suppression provides an additional
level of equipment protection. When utility power is present, APS Inverter/Chargers automatically pass through power to your equipment while
simultaneously recharging your connected battery bank. APS Inverter/Chargers are the quiet alternative to gas generators during emergency
backup applications-with no fumes, fuel or noise to deal with! You get AC electricity anywhere and anytime you need it.
Better for Your Equipment
Better for Your Batteries
Better for You
Owner's Manual
PowerVerter
Output
120V, 60 Hz. AC
12, 24, 36 or 48 VDC
2
3
4
5
6-7
8
* Available on all models except 612 models. ** Inverter/Chargers are moisture-resistant, not waterproof.
Copyright © 2007. PowerVerter
®
Premium Protection Levels
• Built-In Isobar
• Automatic Overload Protection
Ideal Output for All Loads (including computers)
• Frequency-Controlled Output
• Fast Load Switching
• Balanced Load Sharing*
Faster Battery Recharge
• High-Amp, 3-Stage Battery Charger (adjustable)
Critical Battery Protection
• Battery Charge Conserver (Load Sense)*
• Battery Temperature Sensing*
• High-Efficiency DC-to-AC Inversion
Simple, Maintenance-Free Operation
• Multi-Function Lights & Switches
• Moisture-Resistant Construction**
Contents
Español
®
is a registered trademark of Tripp Lite. All rights reserved.
1111 W. 35th Street, Chicago, IL 60609 USA
Customer Support: (773) 869-1234
www.tripplite.com
®
Surge Protection
9
10
11
11
12
13

Advertisement

Table of Contents
loading

Related Manuals for Tripp Lite PowerVerter APS Series

Summary of Contents for Tripp Lite PowerVerter APS Series

  • Page 1: Table Of Contents

    Congratulations! You’ve purchased the most advanced, feature-rich Inverter/Charger designed as an alternative energy source during utility power failures. Tripp Lite APS Inverter/Chargers keep your equipment constantly up and productive through all utility power problems (blackouts, brownouts and high voltages) by inverting DC power from user-supplied batteries into AC power. Built-in surge suppression provides an additional level of equipment protection.

  • Page 3: Safety

    Important Safety Instructions SAVE THESE INSTRUCTIONS! This manual contains important instructions and warnings that should be followed during the installation, operation and storage of all Tripp Lite Inverter/Chargers. Location Warnings • Install your Inverter/Charger (whether for a mobile or stationary application) in a location or compartment that minimizes exposure to heat, dust, direct sunlight and moisture.

  • Page 4: Feature Identification

    Remote Control Module Connector: allows remote monitoring Operating Mode Switch: controls Inverter/Charger operation. and control with an optional module (Tripp Lite model The “AUTO/REMOTE” setting ensures your equipment APSRM2, sold separately or included with select models). See receives constant, uninterrupted AC power. It also enables the remote module owner’s manual for connection instructions.

  • Page 5: Operation

    If unit fails to reset, remove more load or allow unit to cool further on, ¼ second off. May also indicate a battery charger fault exists. See Troubleshooting section. and retry. Use an optional remote control module (Tripp Lite model Voltage Regulation Indicator Lights (available on...

  • Page 6: Configuration

    Configuration Set Configuration DIP Switches Using a small tool, set the Configuration DIP Switches (located on the front panel of your unit, see diagram) to optimize Inverter/Charger operation depending on your application. 612 models have one set of four DIP Switches (Group A). All other models include an additional set of four DIP switches (Group B) to configure additional operational functions.
  • Page 7 Connect Remote Control—Optional (All models) All models feature an 8-conductor telephone style receptacle on the front panel for use with an optional remote control module (Tripp Lite model APSRM2, sold separately or included with select models). The remote module allows the Inverter/Charger to be mounted in a compartment or cabinet out of sight, while operated conveniently from a remote location.

  • Page 8: Battery Selection

    Select a battery or system of batteries that will provide your Inverter/Charger with proper DC voltage and an adequate amp-hour capacity to power your application. Even though Tripp Lite Inverter/Chargers are highly-efficient at DC-to-AC inversion, their rated output capacities are limited by the total amp-hour capacity of connected batteries plus the output of an alternator when one is used.

  • Page 9: Mounting

    Inverter/Charger and connected systems. Tripp Lite manufactures a variety of different Inverter/Chargers with a variety of different mounting options for use in vehicular or non-vehicular applications. Tripp Lite recommends permanent mounting of your Inverter/Charger in any of the configurations illustrated below. User must supply mounting hardware and is responsible for determining if the hardware and mounting surface are suitable to support the weight of the Inverter/Charger.

  • Page 10: Battery Connection

    Inverter/Charger is connected to one or more dedicated auxiliary (house) batteries which are isolated from the drive system to prevent possible draining of the main battery. Contact Tripp Lite technical support for assistance with additional parallel, series or series/parallel connections. Optional connection...

  • Page 11: Ac Input/Output Connection

    Enclose a letter describing the symptoms of the problem. If the Inverter/Charger is within the warranty period, enclose a copy of your sales receipt. To obtain service you must obtain a Returned Material Authorization (RMA) number from Tripp Lite or an authorized Tripp Lite service center.

  • Page 12: Troubleshooting/Warranty

    Tripp Lite’s obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products.
