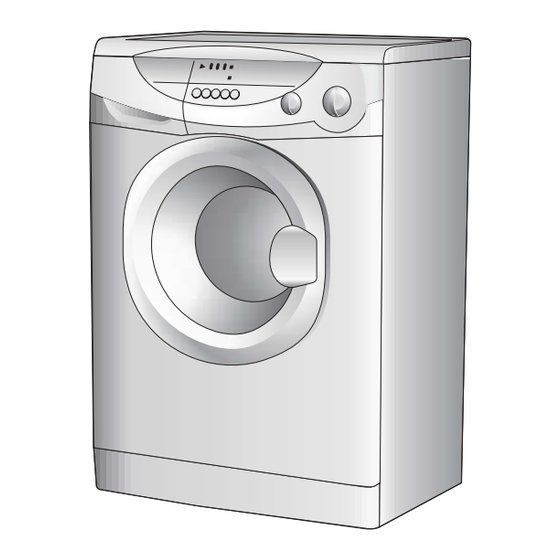

Introduction Please read these instructions for use carefully and all other information enclosed with the washing machine. Keep all documentation in a safe place for future reference or for any future owners. Note: this machine is solely for domestic use. Notes on disposal All packaging material used is environmentally-friendly and recyclable.
A) Pull out the plug B) Turn off the tap C) Maytag equips all its appliances with earthing. Ensure that the mains supply is earthed, and if it is not, seek assistance from a qualified person. D) Do not touch the appliance when hands or feet are wet or damp. Do not use the appliance with bare feet.
Description of controls Fig. 1 C D E F G Door handle “Door Locked” indicator light “Start/Pause” button “Pre Wash” button “Express Wash” button “Extra Rinse” button “Fast Iron” button Wash control temperature knob Buttons indicator light Time countdown system indicator lights Timer knob for wash programmes with “OFF”...
The option buttons should be selected before pressing the "Start/Pause" button. PRE WASH button This option is particularly useful for heavily soiled loads and can be used only on some programmes as shown in the programmes table. Detergent for this programme should be added to the first compartment of the soap drawer labelled "I"...
Page 6
TABLE OF PROGRAMMES PROGRAMMES WEIGHT PROGRAM FOR: SELECTOR ON: Resistant fabrics 90° Heavy - Cotton, linen Cottons 60° Cotton, mixed Normal - resistant Cottons 40° Cotton Light - Cottons Resistant fabrics 40° Eco - Mixed fabrics and 50° synthetics Synth’s - Mixed, resistant Very delicate fabrics 40°...
Programme selector For the various types of fabrics and various degrees of dirt the washing machine has different programme bands according to: wash cycle, temperature and length of cycle (see table of washing cycle programmes). RESISTANTS FABRICS The programmes have been designed for a maximum wash and the rinses, with spin intervals, ensure perfect rinsing.
Automatic Variable Capacity The washing machine is fitted with an automatic reduction in consumption system (known as Automatic Variable Capacity). This system enables the machine to use the amount of water needed to wash and rinse the laundry in relation to the particular load. This results in a reduction in the amount of water used and electricity needed to heat it to the minimum required, without in any way compromising the washing and rinsing performance.
Detergents, washing aids and amounts to use Choice of detergent General purpose detergents - Powder detergents, for a thorough wash, with bleaching agent, particularly suitable for use in hot wash programmes (60°C and over), for heavily soiled and stained laundry. - Liquid detergents, particularly suitable for grease stains, such as greasy skin marks, cosmetics and oil.
Useful advice for users Tips on using your domestic appliance in the most environmentally-friendly and economical Do a full load in your washing machine To prevent any possible waste of energy, water or detergent we recommend that you put a full load in your washing machine, do not exceed the maximum loads shown below: Cotton and linen 6 Mixed...
The correct way to wash Preparing the laundry A) Select the laundry. Loading the laundry B) Open the porthole. C) Put the laundry in the washing machine. Close the porthole again, ensuring that no items of laundry are obstructing the lock. Putting detergent in machine D) Open the drawer, choose the detergent and put in the correct amount, according to the manufacturer’s...
Transporting the appliance or long periods when appliance is not in If the appliance is being transported or is out of use for long periods in unheated places, all remaining water must be completely removed from the hoses. Ensure mains power is off, then unclip the hose and point it downwards into a basin until all the water has emptied out.
Note: The use of environmentally-friendly, phosphate-free detergents can have the following effects: - waste water from rinsing may be cloudier because of the presence of zeolites held in suspension, without the rinse performance being adversely affected; - presence of white powder (zeolites) on laundry after washing, which is not absorbed by the fabric and does not alter the colour of the fabric.
SETTING UP + INSTALLATION Remove the polystyrene base and place the machine near its permanent position (diagram 1). Carefully cut through the hose retaining clip at the rear of the appliance (diagram 2). Unscrew the central bolt (A); unscrew the 4 lateral screws (B) and remove the cross piece (C) (diagram 3).
Page 15
It is generally not advisable to use multiple adapters and/or extension leads. After installation, the appliance must be positioned so that the plug is accessible. All Maytag washing machines comply with the safety requirements laid down by the Quality Trademark Institute.
Page 16
The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.
Page 17
MAYTAG SERVICE AND SPARES 1300 858 575 MAYTAG (Aust.) Pty. Ltd. ABN: 88 086 686 884 MAYTAG policy is one of continuous development and for this reason we reserve the right to change specifications without prior notice.
