Summary of Contents for Poly Savi 7210 Office
- Page 1 PLANTRONICS + POLYCOM. NOW TOGETHER AS Savi 7210/7220 Office for desk phone...
-
Page 2: Table Of Contents
Contents DECT information DECT Enhanced security Overview Headset overview Base overview Accessories Hook up system Desk phone setup details Subscribe headset to base Automatic secure subscription Manual over-the-air subscription Ending subscription Fit and charge Wear on the right or left Charge your headset Battery System basics... -
Page 3: Dect Information
DECT information DECT products should never be used outside the region in which they were originally purchased and intended to be used. The enclosed DECT wireless product uses restricted wireless radio frequencies which vary by country. Use of this DECT product in unauthorised countries is a violation of law, may disrupt telecommunications networks and devices and can subject you to fines and penalties by regulatory agencies. -
Page 4: Overview

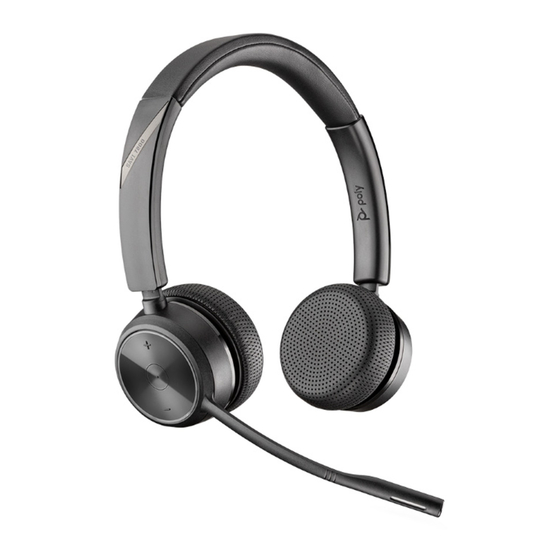

Overview Headset overview Subscribe Mute/unmute Power Manual subscribe (connect) Volume up Volume down Call Be safe Please read the safety guide for important safety, charging, battery and regulatory information before using your new headset. -
Page 5: Base Overview
Base overview 4 5 6 7 Desk phone LED Telephone interface cable jack Subscribe LED Auto answer Charging LED Subscription button Wideband/narrowband audio switch Desk phone listening volume Power jack Desk phone speaking volume Handset lifter jack Desk phone configuration switch... -
Page 6: Accessories
Accessories Electronic hookswitch cable (EHS cable) Electronically and automatically answers/ends a desk phone call. Enables remote call control with your headset. HL10 lifter Automatically lifts handset and returns it to the cradle. Enables remote call control with your headset. -
Page 7: Hook Up System
Hook up system Using the diagram, connect your headset system. HEADSET PORT Desk phone Subscribe Battery status Wideband/ status narrowband Subscribe Auto-answer status NO HEADSET PORT NOTE Base configuration settings Desk phone Setting (on bottom of base) Most phones Cisco phones Cisco phones with EHS cable Desk phone setup details Choose a desk phone setup... - Page 8 Desk phone (standard) • Connect one end of the telephone interface cable to the back of the base • Disconnect the handset coil cord from the base of the desk phone and re-connect it to the telephone interface cable junction box •...
- Page 9 IMPORTANT Cisco phones use configuration on the bottom of the base. Most other phones use the default configuration A.
-
Page 10: Subscribe Headset To Base
Subscribe headset to base The headset and base that came in the box are subscribed (connected) to each other. However, if you wish to use a new headset or need to restore subscription to your current headset, the units can be subscribed to each other by the following two methods. Automatic secure With your system idle, docking a headset will automatically subscribe it to the base, making it the primary headset. -
Page 11: Fit And Charge
Fit and charge Wear on the right or left To position the microphone on the right or left side, rotate the microphone boom up and over. Gently bend the boom so it is approximately 2 finger widths from the corner of your mouth. Charge your headset Place the headset in the charging cradle. -
Page 12: System Basics
System basics Power on your headset To turn on the headset, slide the Power button. Adjust volume • Headset volume Fine-tune your headset volume by adjusting the headset's volume up (+) and down (-) controls. • Desk phone volume When you are on a call and your voice is too quiet/loud, adjust the speaking volume on the bottom of the base. - Page 13 Hold the guest headset's Volume up until the headset LED turns on. The primary user hears a triple tone indicating a conference request. To accept the request, press the primary user's headset Call button within 10 seconds. If the process fails or times out because the guest's Call button is not pressed within 10 seconds, the guest subscription is terminated and the guest hears an error tone.
-
Page 14: More Features
More Features Out of range warning If you are on a call and go out of the operating range, you will hear three low tones. You will hear tones a single mid tone when you are back in range. If you stay out of range, active calls will be suspended. Calls will be re-established when you walk back into range. -
Page 15: Troubleshooting
Troubleshooting Headset I can’t hear a dial tone in the • Make sure your headset is charged. headset. • Make sure your headset is subscribed to base. See Subscribe headset to base. • Adjust the configuration switch (A--G) on the bottom of the base until a dial tone is heard. -
Page 16: Desk Phone
People I talk to can hear a buzz in • Move the base further away from your phone. See Position your the background. base. • If the base power supply is plugged into a power strip, plug it into the wall directly. Desk phone The handset lifter is installed but •... -
Page 17: Support
Netherlands © 2020 Plantronics, Inc. All rights reserved. Poly, the propeller design, and the Poly logo are trademarks of Plantronics, Inc. DECT is a trademark of ETSI. All other trademarks are the property of their respective owners. Manufactured by Plantronics, Inc.
