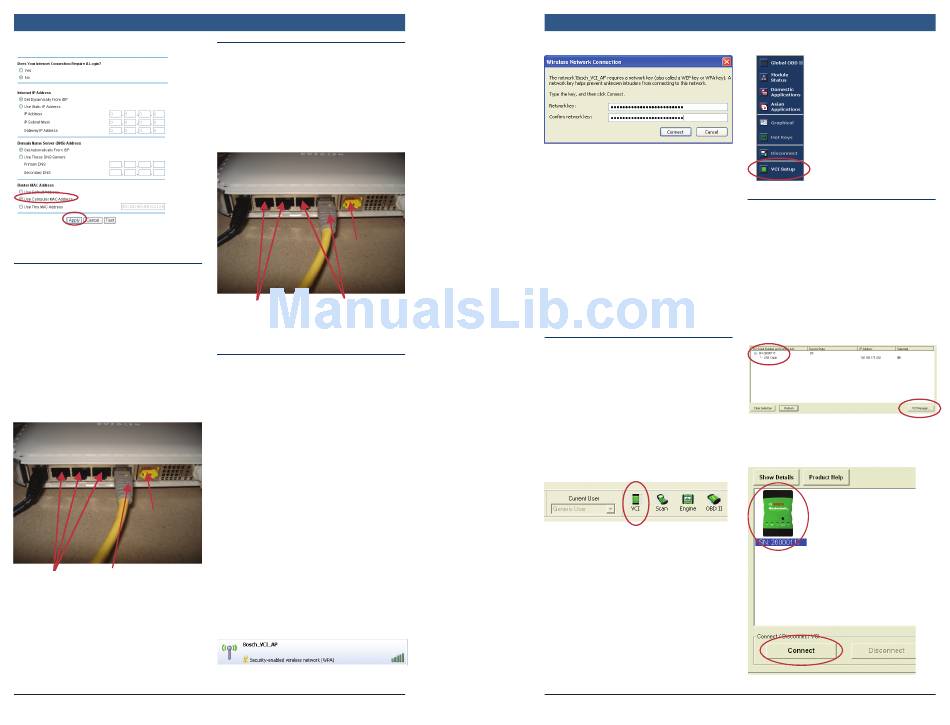

9 | Installation Steps | Step 3
Step 2 - Connecting Your
Wired Devices "Special
Instruction for Type II"
(Setting NETGEAR Router
Internet Port to the Cable/
DSL Modem)
Attaching the NETGEAR Router to
the cable/DSL modem.
"Internet Port"
(Input from
the Cable/DSL
Modem)
Additional wired Wired connection
devices to PC (If required)
You are now finished with Step 2,
proceed to Step 3.
Robert Bosch LLC M-VCI – NETGEAR® Router Installation Guide Index | Version 1.0 | June 2009
Step 2 - Connecting Your
Wired Devices "Special
Instruction for Type III"
Connect wired computer(s) to the
router (if needed).
Not used
Additional wired Wired output
devices to PC(s)
Step 3 - Connecting
Wireless PC's (if required)
"Special Instruction for
Types I, II & III"
Open the Wireless Network
f
Manager for the PC that will
be interfacing with the new
NETGEAR Router.
f Search for wireless networks
– SSID = Bosch_VCI_AP
Configure Encryption
f
– WPA Personal TKIP
– Passphrase = Bosch_
VCI_800-321-4889
Note: This is a typical screen
shot, however, your actual screen
may be different depending on
your brand of PC. Not all PC's
require the confirmation of the
network key. Refer to Appendix B
for additional information. Refer to
Appendix D when using multiple
NETGEAR Routers.
Step 4 – Setting up your
VCI (Applies to Types I, II &
III) (Starting VCI Setup)
Note: Shop Foreman Pro w/VCI
Manager must be installed on
your PC prior to proceeding to the
following steps.
f Connect M-VCI to the AC power
Connect M-VCI to the computer
f
via USB
Open Shop Foreman Pro
f
f Click: M-VCI icon at the top of
the screen
Click: VCI Setup
f
M-VCI – NETGEAR® Router Installation Guide Index | Version 1.0 | June 2009
Installation Steps | Step 4 | 10
Step 4 – Setting up your
M-VCI (Applies to Types
I, II & III) (Verify USB
Connectivity)
f Verify M-VCI shows up in M-VCI
connection window
Click: VCI Manager
f
Click on the image of the M-VCI
f
Click: Connect
f
