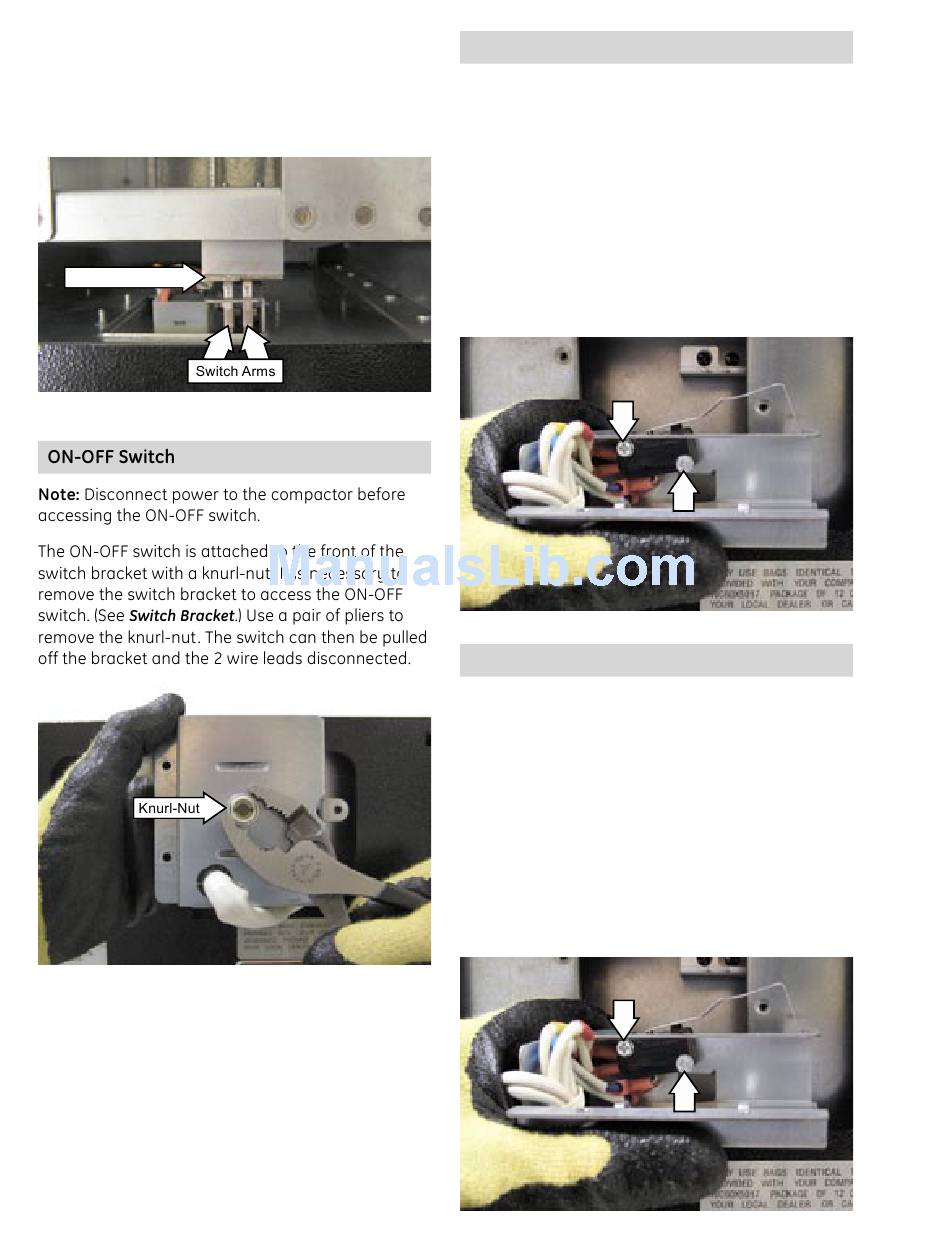

Directional Switch; On-Off Switch; Top Limit Switch - GE GCG1500BB Technical Service Manual

Caution: Ensure the switch bracket is installed
with the switch arms resting in front of the switch
actuator bracket. Damage to the top limit and/or
directional switch will occur if the switch arms are
positioned below the switch actuator bracket.
Actuator Bracket

Top Limit Switch

Note: Disconnect power to the compactor before
accessing the top limit switch.
The top limit switch is located on the switch bracket.
It is necessary to remove the switch bracket and
the ON-OFF switch to access the top limit switch.
(See
Switch Bracket
limit switch is positioned on the right side of the
directional switch, furthest from the ON-OFF switch.
It is connected with blue and brown wires. Both
switches are attached to the inside of the switch
bracket with 2 Phillips-head screws.

Directional Switch

Note: Disconnect power to the compactor before
accessing the directional switch.
The directional switch is located on the switch
bracket. It is necessary to remove the switch
bracket and the ON-OFF switch to access the
directional switch. (See
.) The directional switch is positioned on the
Switch
left side of the top limit switch, closest to the ON-
OFF switch. It is connected with blue, yellow, and red
wires. Both switches are attached to the inside of
the switch bracket with 2 Phillips-head screws.
– 14 –
and .) The top

ON-OFF Switch

and
Switch Bracket ON-OFF
