QuickSpecs
Overview

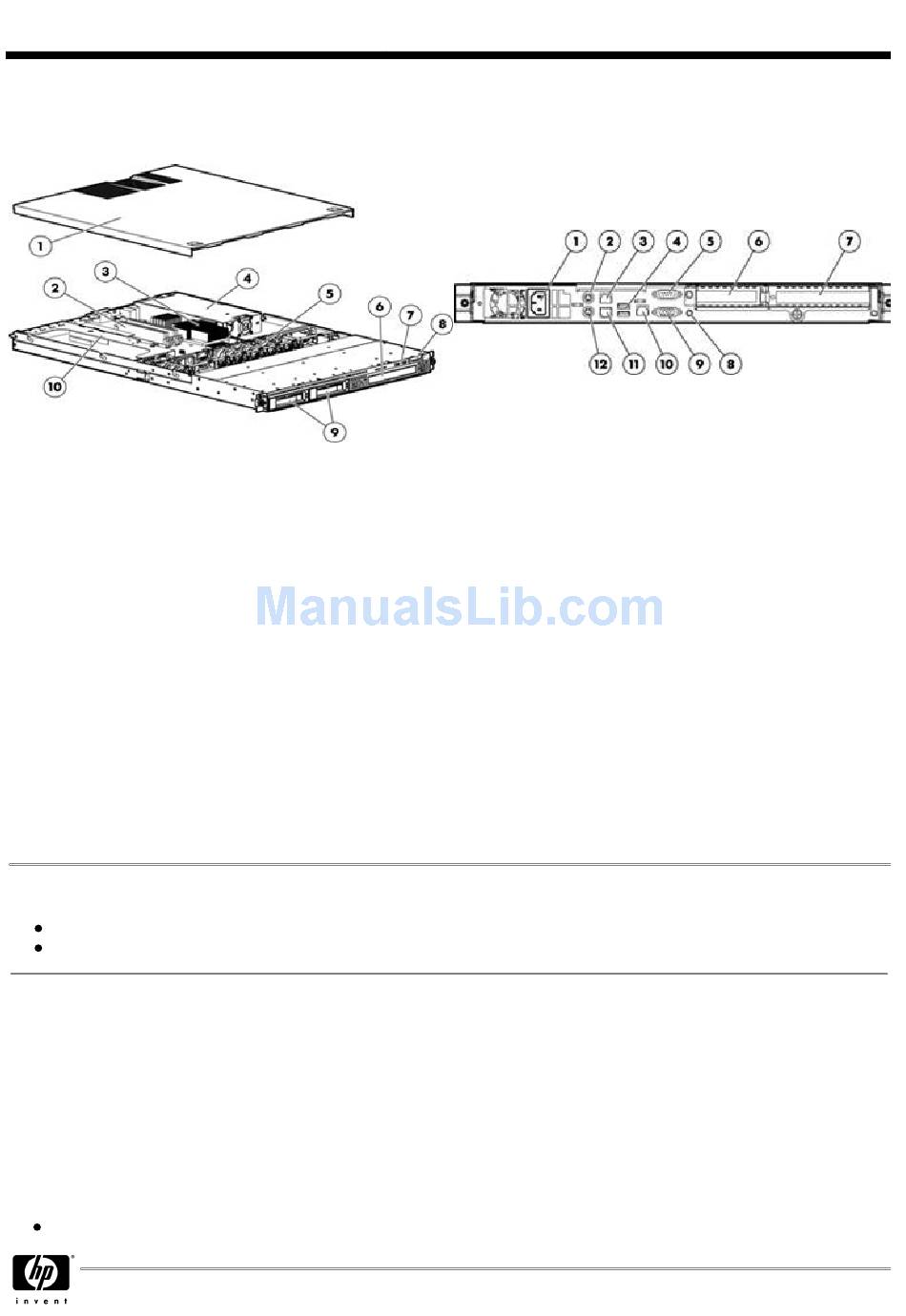

Front View:
1.
Cover
2.
Four PC2-6400 ECC DDR2 Memory Slots
3.
Processor Socket (Intel® Xeon®, Core™2, Pentium® or
Celeron®)
4.
Power Supply (400 Watt)
5.
Non Hot Plug Dual Rotor Fans
6.
Optional 12.7mm DVD-ROM, or DVD-RW Drive for 2
HDD models and optional 9.5mm DVD-ROM, or DVD
combo drive for 4-HDD model
7.
Two upfront USB connectors
8.
Power Button, UID Button, and Front LED Indicators
9.
Support for up to four Hot Plug SATA or SAS Hard
Drives
10.
Two PCI-Express Slots (2 PCI-Express x8 connectors
standard)
What's New
New Quad-Core Intel Xeon processors with up to 12 MB L2 cache for 1333MHz Front Side Bus
Support for low-cost Intel Celeron 440 processor
At a Glance
The HP ProLiant DL320 G5p Server is an enterprise rack-optimized server at an entry level price. The highly manageable 1
processor, 1U server is ideal for single-application IT infrastructure, web and edge-of-network applications. The remote
console and virtual KVM offered by the embedded iLO-2, coupled with the management features of SIM and deployment
capabilities of SmartStart and other ProLiant Essentials software, give the DL320 G5p enterprise-class management
features. Optional upgrades provide support for hot-plug SAS drives and/or up to 4 SAS or SATA drives, and gives the
DL320 G5p the flexibility to meet the needs of your datacenter. Plus, you get the cost-effective solution of a single-processor
platform with the performance advantages of dual-core or quad-core.
Processor:
Quad-Core Intel® Xeon® 3300 processor sequence
DA - 12854 Worldwide QuickSpecs — Version 12 — 5-28-2008
HP ProLiant DL320 Generation 5p
Rear View:
1.
Power supply
2.
Mouse connector
3.
NIC 2 Port
4.
USB connectors (2)
5.
Serial connector
6.
PCI Express expansion slot 5, low-profile, half-length
7.
PCI Express expansion slot 4, (optional PCI-X, full-
length)
8.
UID button/LED
9.
Video connector
10.
Dedicated Integrated Lights-Out 2 (iLO 2) management
port (optional)
11.
NIC 1 Port / Shared iLO 2 Management Port
12.
Keyboard connector
Page 1
Advertisement
Related Manuals for HP ProLiant PC2-6400
Summary of Contents for HP ProLiant PC2-6400
- Page 1 Support for low-cost Intel Celeron 440 processor At a Glance The HP ProLiant DL320 G5p Server is an enterprise rack-optimized server at an entry level price. The highly manageable 1 processor, 1U server is ideal for single-application IT infrastructure, web and edge-of-network applications. The remote...
- Page 2 New fixed, mounting rails included with all models Warranty: This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and parts repair is available for three years Next Business Day, with one year on-site support from date of purchase.
- Page 3 Expanded support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. SATA hard drives have a one-year warranty.
-
Page 4: Standard Features
NOTE: For Models with the Intel® Pentium processor E2160. 512 KB L2 Cache NOTE: For Models with the Intel® Celeron processor 440 and 420. Chipset Intel® 3210 Chipset Memory Protection DA - 12854 Worldwide QuickSpecs — Version 12 — 5-28-2008 HP ProLiant DL320 Generation 5p only. Page 4... - Page 5 64-bit Not applicable Optional 2 HDD Models: 12.7mm DVD-ROM, or DVD-RW Drive 4 HDD Models: 9.5mm DVD-ROM, or DVD combo drive Hard Drives - Hot Plug SATA/SAS HP ProLiant DL320 Generation 5p Form Device No.** Notes Factor Low profile (half length,...
- Page 6 NOTE: Maximum resolution available via iLO 2 remote console is 1280 x 1024. Form Factor Rack (1U), (1.70 in/4.32 cm), 26.85" deep DA - 12854 Worldwide QuickSpecs — Version 12 — 5-28-2008 HP ProLiant DL320 Generation 5p 1.5TB 2 x 750 GB SATA 3.0TB...
- Page 7 HP Insight Control management suites and most HP ProLiant Essentials include a one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates.
- Page 8 SmartStart Web site at: http://www.hp.com/servers/smartstart. SmartStart version supported (minimum): SmartStart 7.90 The Insight Management Agents should be installed on all HP servers to present system instrumentation, health and configuration information into HP Systems Insight Manager and the HP System Management Homepage.
- Page 9 LAN media and adapters, and application processes. The following is a quick summary of HP Serviceguard for Linux features and support. For the most recent list of Linux distributions & kernels, servers and storage supported with Serviceguard for Linux, see the Serviceguard for Linux Certification Matrix, available at: http://www.hp.com/go/sglx/info.
- Page 10 North America Japan NOTE: HP ProLiant DL320 G5p servers hip standard worldwide with a C13 to C14 2M Highline jumper cord. Japanese models also include a 2M Lowline power cord. If customers require a local power cord, they can check the power cord matrix for the appropriate country specific cord.
- Page 11 4 dual rotor fans ship standard with all other models (e.g. X3220, X3210, 3075, 3065, E4600, E4400, E2160, 440 and 420 models). Ultra Thin Rack For the Ultra Thin Rack Deployment Overview, including best practices for the HP ProLiant DL320 Deployment Overview G5p, please see the following URL: www.hp.com/servers/dl320-g5.
- Page 12 The DL320 G5p Fixed Rail System supports installation in racks with square or round mounting holes (including Compaq/HP 7000, 9000, 10000 and HP series), with an adjustment range of 24" - 36". Installation into Telco 2 post, and 4 post, or threaded holes racks requires a 3rd party option kit.
- Page 13 Optical Drive Power Supply Form Factor DA - 12854 Worldwide QuickSpecs — Version 12 — 5-28-2008 HP ProLiant DL320 Generation 5p Quad-Core Intel® Xeon® processor 3320 (2.50GHz, 6MB L2 cache, 95 Watts, 1333MHz FSB) 6MB L2 Cache Intel® 3210 Chipset...
- Page 14 DA - 12854 Worldwide QuickSpecs — Version 12 — 5-28-2008 HP ProLiant DL320 Generation 5p Dual-Core Intel® Xeon® processor 3075 (2.66GHz, 4MB L2 cache, 65 Watts, 1333MHz FSB) 4 MB L2 Cache Intel® 3210 chipset 1 GB (Standard) to 8 GB (Maximum) of ECC PC2-6400 Unbuffered...
-
Page 15: Configuration Information - Factory Integrated Models
HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements. NOTE: HP does not allow factory integration of options into standard models listed above. Configure-to-order servers must start with a CTO Chassis. - Page 16 SAS HBAs HP SC44Ge Host Bus Adapter HP 8 Internal Port SAS HBA with RAID NOTE: Any SAS HBA CTO purchase automatically includes the HP HBA SAS- SATA 4x1LN Cable Kit (452130-B21). Controllers HP Smart Array E200/128 BBWC Controller...
- Page 17 The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service. Only available directly from HP and select resellers in the Americas region.
- Page 18 Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.html...
- Page 19 NOTE: Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
- Page 20 HP SC44Ge Host Bus Adapter HP 8 Internal Port SAS HBA with RAID NOTE: The HP SC44Ge HBA and HP 8 Internal Port SAS HBA with RAID require the purchase of the HP HBA SAS-SATA 4x1LN Cable Kit (452130-B21). HP HBA SAS-SATA 4x1LN Cable Kit NOTE: This option is required for any internal port HBA or controller that has a standard 4 port SAS/SATA connector.
- Page 21 (SC44Ge HBA) http://h18000.www1.hp.com/products/quickspecs/12332_div/12332_div.html (8 Internal Port SAS HBA) SCSI Controllers NOTE: The HP ProLiant DL320 G5p PCI-X Option Kit is required for all PCI -X Controllers. Smart Array 6404/256 Controller NOTE: For External drive support only Smart Array 6402/128 Controller...
- Page 22 (Worldwide) http://h18006.www1.hp.com/products/quickspecs/12128_div/12128_div.html (Worldwide) For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: Rack-Mount Tape Drive Enclosures HP StorageWorks 1U SCSI Rack-Mount Kit NOTE: The 1U Rack-Mount Kit can support up to (2) half-height tape drives and...
- Page 23 HP StorageWorks D2D130 Backup System with Data Protector Express Software Kit NOTE: 3TB of Disk Storage. HP StorageWorks D2D130 Backup System with LTO-3 Ultrium 920 SAS Tape Drive NOTE: 3TB of Disk Storage. NOTE: Please see the HP D2D Backup Systems QuickSpecs for additional information: http://h18000.www1.hp.com/products/quickspecs/12651_div/12651_div.html...
- Page 24 High Availability HP Serviceguard for Linux Cluster Options HP Serviceguard Linux x86 Server License & Media including One Year 24x7 Software Support & Updates HP Serviceguard Linux Oracle Single Instance Database Toolkit x86 Cluster License & Media including One Year 24x7 Software Support & Updates HP Serviceguard Linux Extension for SAP (SGeSAP/LX) x86 Server License &...
- Page 25 HP StorageWorks HP StorageWorks Modular Smart Array 500 Generation 2 Modular Smart Array NOTE: Please see the Modular Smart Array 500 Generation 2 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at: http://h18000.www1.hp.com/products/quickspecs/11956_div/11956_div.html...
- Page 26 HP 256MB USB 2.0 Floppy Drive Key ProLiant DL320 Rack Adapter Kit Deployment Options NOTE: This kit allows HP rack servers to fit in racks that are 24" wide. HP Rack 5000 Series HP 5642 Rack-Unassembled (Metallic Carbonite) NOTE: Please see the HP Rack 5642 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color: http://h18000.www1.hp.com/products/quickspecs/12074_div/12074_div.html...
- Page 27 NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower. HP Rack 10000 Series HP S10614 (14U) Rack Cabinet – Shock Pallet (Graphite Metallic) NOTE: xxxxxx-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels).
- Page 28 PS/2 Virtual Media Interface Adapter, 1 pack NOTE: Requires PS/2 and one USB port on server. Server Console Switch (KVM), 0 x 1 x 8 port Server Console Switch (KVM), 0 x 2 x 16 port PS/2 Interface Adapter, 1 pack...
- Page 29 8am-5pm, M-F, excl. HP holidays, Electronic Support Plus Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic Support Plus 24 Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl.
- Page 30 Up to 8 GB memory is available with the optional installation of PC2-6400 ECC DDR2 SDRAM Memory kits. NOTE: The chart below does not represent all possible configurations. For best performance, HP recommends dual-bank interleaved mode configurations. For dual-bank interleaved mode, DIMMs must be installed in both banks with equal bank capacities.
-
Page 31: Drive Support
HP Smart Array P400/512MB BBWC Controller HP Smart Array P800/512MB BBWC Controller Position Supported Controller HP embedded 4 Port SATA Controller with RAID 0/1 support HP SC44Ge Host Bus Adapter NOTE: HP 8 Internal Port SAS HBA with RAID depending on HP Smart Array E200/128 BBWC Controller model. - Page 32 DA - 12854 Worldwide QuickSpecs — Version 12 — 5-28-2008 Position Supported Controller HP SC44Ge Host Bus Adapter HP 8 Internal Port SAS HBA with RAID NOTE: HP Smart Array E200/128 BBWC Controller depending on HP Smart Array P400/256MB Controller model.
- Page 33 NOTE: In order to implement integrated SATA RAID with Smart Start 7.90 on Windows 2000/2003, the use of a floppy drive is necessary. NOTE: The External capacity section relates to the HP StorageWorks Modular Smart Array 20. Tape Drives, Tape Autoloaders, Tape Libraries & D2D Backup...
- Page 34 D2D130 DA - 12854 Worldwide QuickSpecs — Version 12 — 5-28-2008 HP SC11Xe Host Bus Adapter HP U320e SCSI Host Bus Adapter NOTE: Recommended for MSL tape libraries. HP SC44Ge Host Bus Adapter Please consult the EBS connectivity matrix at: http://www.hp.com/go/ebs...
-
Page 35: Technical Specifications
Temperature Relative Humidity (non-condensing) Altitude DA - 12854 Worldwide QuickSpecs — Version 12 — 5-28-2008 HP ProLiant DL320 Generation 5p 1.70 x 17.64 x 26.85 in (4.32 x 44.80 x 68.19 cm) Maximum 33.50 lb (15.20kg) (four hard drives, power... - Page 36 Dielectric voltage withstand Maximum Wet Bulb Temperature DA - 12854 Worldwide QuickSpecs — Version 12 — 5-28-2008 HP ProLiant DL320 Generation 5p Non-operating 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min). Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment.
- Page 37 Network Transfer Rate 10Base-T (Half-Duplex) Connector Cable Support DA - 12854 Worldwide QuickSpecs — Version 12 — 5-28-2008 HP ProLiant DL320 Generation 5p 4 channels 150 MB/s per channel; 300 MB/s in RAID 0 pair Intel® 82801IR Integrated Serial ATA Host Controller (non-RAID mode) Intel®...
- Page 38 The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
