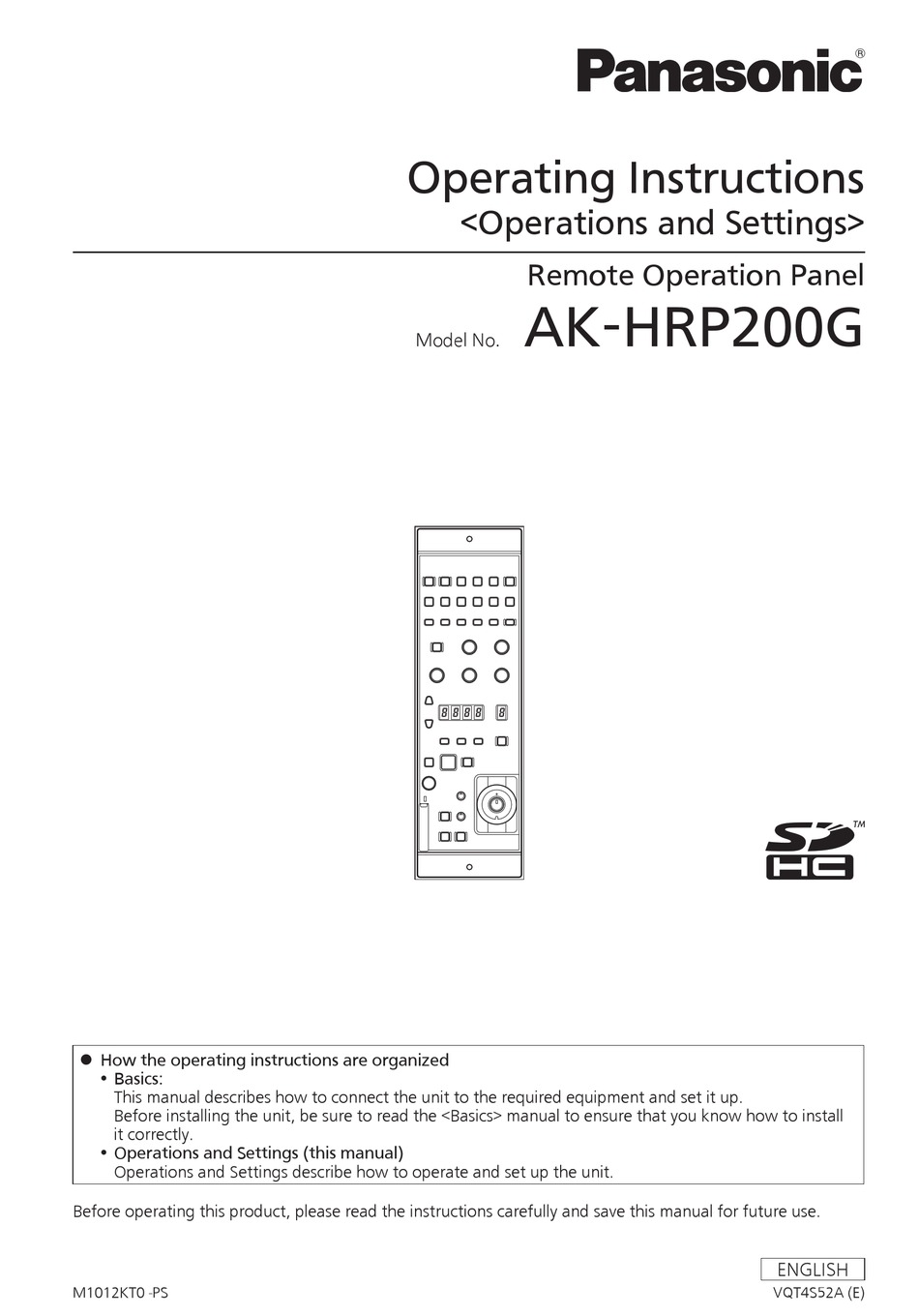

Operating Instructions <Operations and Settings> Remote Operation Panel AK-HRP200G Model No. z How the operating instructions are organized • Basics: This manual describes how to connect the unit to the required equipment and set it up. Before installing the unit, be sure to read the <Basics> manual to ensure that you know how to install it correctly.
About.trademarks.and.registered.trademarks. • SDHC logo is a trademark of SD-3C, LLC. • Other company names and product names appearing in this manual are the registered trademarks or trademarks of their respective companies. Copyrights It is prohibited to transfer, copy, disassemble, decompile, and reverse engineer the software included with the unit, as well as export it in violation of the export laws.
For details, consult your supplier. Disclaimer.of.warranty IN NO EVENT SHALL Panasonic Corporation BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:...
Setup.mode Setup.mode Setup mode allows the user to make a variety of unit settings, and save and load scene files and user files. Normal operation is unavailable during setup mode operation. ROP menu (REMOTE OPERATION MENU) operation is not available either. ...
Page 5
Setup.mode. (continued) Opening.setup.mode Exiting.setup.mode Setup mode differs from normal operating modes. Use the steps below To exit setup mode, hold down <EXIT> for two seconds. The unit returns to open setup mode. to normal operating mode. SYNC CAMERA When.a.camera.and.CCU.are.connected,.select.IRIS.(to.
Page 6
Setup.mode. (continued) Setup.mode.menu.configuration Setup mode is comprised of the menus and submenus listed in the table below. Default. Menu Submenu Set.value/Selected.operation value SYNC CAMERA SYNC CAMERA SYNC CAMERA M.GAIN M.PED 10-19 M.GAIN M.PED 10-19 M.GAIN M.PED 10-19 DATA DATA DATA IRIS...
Setup.Mode.Operations <Note> Press.<UP>.or.<DOWN>.to.select.a.file.number.on.the. Menu numbers 10 to 15 are for future use. memory.card.and.press.<EXECUTE>.to.confirm.the. selection. 1..Set.camera.number SYNC M.GAIN M.PED Open.setup.mode.and.check.that.menu.number.[1].is. displayed..If.a.menu.number.other.than.[1].appears,. press.<SELECT>.to.select.menu.number.[1]. Press to select the camera number IRIS To save a file to file no. 2 on the memory card CAMERA SYNC M.GAIN...
Setup.Mode.Operations. (continued) • To cancel loading, select [n] and press <EXECUTE>. • [E01] is displayed when a user file with the same name as the one • The file is loaded from the memory card and [Fin] appears when you are attempting to save already exists on the memory card. loading ends.
Setup.Mode.Operations. (continued) 4-2.Load.lens.file.from.memory.card 4.Save.lens.file.to/load.lens.file.from.memory.card Press.<SAVE/LOAD>.to.select.[CC]. Press.<SELECT>to.select.menu.number.[4]. • Each press of <SAVE/LOAD> toggles it between [ND] (Save) and Select file number, [CC] (Load). Save file indication Select y (Select)/ SYNC Load file indication n (Cancel) M.GAIN M.PED SYNC CAMERA M.GAIN M.PED 10-19 DATA IRIS...
Setup.Mode.Operations. (continued) 5-1.Save.ROP.configuration.file.to.memory.card 6.Format.memory.card Press.<SAVE/LOAD>.to.select.[ND]. Press.<SELECT>to.select.menu.number.[6]. • Each press of <SAVE/LOAD> toggles between [ND] (Save) and Select y (Format)/n (Cancel) [CC] (load). SYNC SYNC CAMERA M.GAIN M.PED M.GAIN M.PED 10-19 DATA IRIS IRIS DOWN DISPLAY SELECT Press.<UP>.or.<DOWN>.to.select.[y].and.press. SELECT SET UP ND/CC M.GAIN/M.PED SHUTTER <EXECUTE>.to.confirm.the.selection.
Setup.Mode.Operations. (continued) 7-2.Set.pedestal 9-1.Set.LED.brightness Press.<UP>.or.<DOWN>.to.select.[PE].and.press. Press.<SAVE/LOAD>.to.select.[ND].and.press. <EXECUTE>.to.confirm.the.selection. <EXECUTE>.to.confirm.the.selection. • Each press of <SAVE/LOAD> toggles between [ND] (LED display SYNC brightness) and [CC] (7-segment display brightness). M.GAIN M.PED SYNC M.GAIN M.PED IRIS • To exit setup mode, hold down <EXIT> for about 2 seconds. IRIS •...
Setup.Mode.Operations. (continued) Press.<UP>.or.<DOWN>.to.select.[y].and.press. • [E02] is displayed if the save operation to the memory card fails. (→page 13) <EXECUTE>.to.confirm.the.selection. If this happens, check the memory card and try again or insert • After confirmation, unit settings are initialized and it is automatically another memory card to perform the operation again.
Setup.Mode.Operations. (continued) Error.messages.in.setup.mode Error.No. Error.data A file with the same name already exists. Select [y] to overwrite. An error occurred on the memory card. • Check if a file with the same name already exists. • Check if the memory card is write protected. •...
ROP.menu.operations ROP.menus.that.can.be.operated.on.the.unit Operating.ROP.menus The unit can access the picture monitor on a CCU to control the ROP Basic.menu.operations menu (REMOTE OPERATION MENU). Hold.down.<CHARA/MENU>.for.2.seconds. Opening.menus.and.menu.configuration The [REMOTE OPERATION MENU] appears. (The cursor appears at the beginning of the first line.) Hold down <CHARA/MENU>...
Page 15
ROP.menu.operations. (continued) Operating.other.menus When a menu has more than one setting on a line, press <SELECT> (to confirm) and the cursor [] appears. Turn <SELECT> right or left to move the cursor to the input area. Cursor movement ** SHADING...
ROP.menu.setting. (continued) KNEE/WHITE.CLIP MATRIX.(1/2) <Note> →** MATRIX ( 1/2 ) ** • Some settings in this menu are not available when the [CINEMA GAMMA SWITCH] is set to [ON]. PRESET NORMAL MATRIX SWITCH OFF →** KNEE/WHITE CLIP ** MEMORY A KNEE SWITCH ON R-G 0 R M...
ROP.menu.setting. (continued) Item Display Function Item Display Function +GAIN Changes the detail gain level in MEM.A.WIDTH Expands the width of skin tone ׀ ׀ + (up) direction areas in memory bank A in a range from 0 to 255. ׀ MEM.A.SATU Changes the saturation of skin ׀...
ROP.menu.setting. (continued) Item Display Function Item Display Function LEVEL. Lowers the detail in dark areas. HD.COLOR.BAR FULL Select the color bar signals to be DEPENDENT ׀ BARS-1 It adjusts the level. output from the HD/SD SDI OUT ARIB connectors and VBS connector ׀...
ROP.menu.setting. (continued) LENS.FILE/EDIT.(2/2) Item Display Function ASU.FILTER Sets the operation of the ND CURRENT filter when auto setup is started. →** LENS FILE/EDIT ( 2/2 ) ** REF: EXTENDER X1.0 FILE The filter stored in the R G B reference file is used when FLARE...
It can be saved and read by operation on the ROP. It can also be saved and read to/from the memory card on the ROP. For a list of data, refer to the Operating Instructions for AK-HRP200G. Scene.file.(SCENE) 1 to 4 This data for creating pictures is handled mainly by video engineers (VE) and is managed by the camera.
Data.item.list Camera.(menu.list) z OPERATION Protected.settings Menu Item Adjustment.range Default.value SCENE USER LENS 1.to.4 1.to.3 1.to.32 MARKER SIDE MODULE LEVEL 0 to 15 ZONE MARK OFF, 4:3, 13:9, 14:9, 15:9, 16:9 SAFETY AREA MODE TYPE1, TYPE2 TYPE1 ...
Page 26
Data.item.list. (continued) Protected.settings Menu Item Adjustment.range Default.value SCENE USER LENS 1.to.4 1.to.3 1.to.32 RETURN SETTING RETURN MODE NORM, TOGGLE, SEQ. NORM RETURN SELECT RETURN A 1, 2, 3, 4 RETURN B 1, 2, 3, 4 ID SETTING RETURN 1 "RET1 "(5 characters) RET1...
Page 27
Data.item.list. (continued) z MAINTENANCE Protected.settings Menu Item Adjustment.range Default.value. SCENE USER LENS 1.to.4 1.to.3 1.to.32 SD CARD R/W READ SELECT 1 to 8 READ YES, NO WRITE SELECT 1 to 8 WRITE YES, NO CARD CONFIG YES, NO CAC ADJUST CAC CONTROL ON, OFF CAC FILE DELETE...
Page 28
Data.item.list. (continued) CCU.(menu.list) Protected.settings Menu Submenu Item Adjustment.range Default.value SCENE USER LENS 1.to.4 1.to.3 1.to.32 OPERATION SETTING1 CCU MODE 1080/59.94i 59.94Hz 1080/50i 1080/59.94i 50Hz 1080/50i SDI RETURN1 SDI RETURN2 SDI OUTPUT1&2 SDI OUTPUT3&4 SDI OUTPUT3&4 NORMAL NORMAL/PM COMPOSITE NORMAL/ NORMAL SETTING2 FS DELAY...
Page 29
Data.item.list. (continued) Protected.settings Menu Submenu Item Adjustment.range Default.value SCENE USER LENS 1.to.4 1.to.3 1.to.32 OPERATION INCOM/MIC 4W/RTS IN Level -40.0 to 20.0 dB 0 dB (in 0.5 dB increments) 4W/RTS OUT Level -40.0 to 20.0 dB 0 dB (in 0.5 dB increments) RTS Cancel -40.0 to 31.5 dB 0 dB...
Page 30
Data.item.list. (continued) Protected.settings Menu Submenu Item Adjustment.range Default.value SCENE USER LENS 1.to.4 1.to.3 1.to.32 MAINTENANCE PM VIEW SETTING CAMERA No. CAM MOD SCENE FILE No. SHUTTER ND FILTER GAIN EXTENDER INFO IRIS IRIS LEVEL PM OPERATION STATUS DISPLAY TIME STATUS MASTER GAIN SHUTTER LENZE EXTENDER...
Page 31
Data.item.list. (continued) ROP.(menu.list) Protected.settings Menu Item Adjustment.range Default.value SCENE USER LENS 1.to.4 1.to.3 1.to.32 SHADING(WHITE) WHITE SHADING SWITCH OFF/ON H SAW R -100 to 100 H SAW G -100 to 100 H SAW B -100 to 100 ...
Page 32
Data.item.list. (continued) Protected.settings Menu Item Adjustment.range Default.value SCENE USER LENS 1.to.4 1.to.3 1.to.32 KNEE/WHITE CLIP KNEE SWITCH OFF/ON POINT R -20 to 20 POINT M 80.0% to 110.0% 95.0% POINT B -20 to 20 ...
Page 33
Data.item.list. (continued) Protected.settings Menu Item Adjustment.range Default.value SCENE USER LENS 1.to.4 1.to.3 1.to.32 HD DTL/SKIN DTL (1/2) DETAIL SWITCH OFF/ON V DETAIL 0 to 63 H DETAIL 0 to 63 CRISP 0 to 63 ...
Page 34
Data.item.list. (continued) Protected.settings Menu Item Adjustment.range Default.value SCENE USER LENS 1.to.4 1.to.3 1.to.32 SYSTEM (1/2) RETURN1 HD SDI1/HD SDI2/VBS HD SDI1 RETURN2 HD SDI1/HD SDI2/VBS HD SDI2 RETURN3 HD SDI1/HD SDI2/VBS HD SDI1 RETURN4 HD SDI1/HD SDI2/VBS HD SDI2 RETURN · DELAY NORMAL/SHORT NORMAL DOWN CONVERT MODE...
Page 35
Data.item.list. (continued) Protected.settings Menu Item Adjustment.range Default.value SCENE USER LENS 1.to.4 1.to.3 1.to.32 LENS FILE/EDIT (2/2) EXTENDER x1.0/x2.0 x1.0 FILE FLARE R -100 to 100 FLARE G -100 to 100 FLARE B -100 to 100 ...
