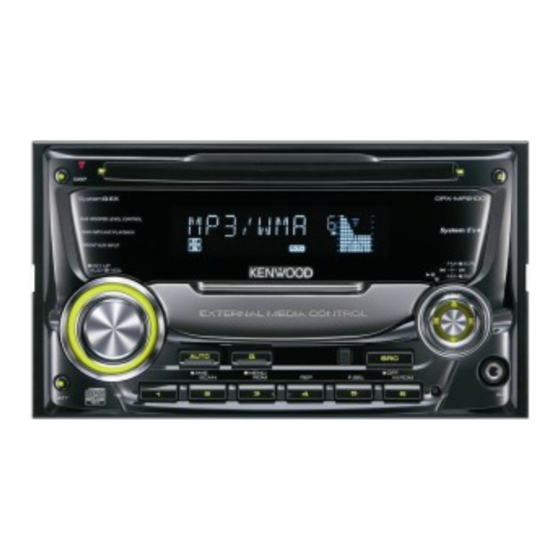

- Page 1 DUAL DIN SIZED CD RECEIVER DPX-MP2100 INSTRUCTION MANUAL © B64-3612-00/00 (MW)
-
Page 2: Table Of Contents
Contents Safety precautions Menu system Menu System Notes Activating Security Code Deactivating Security Code General features Touch Sensor Tone Power Manual Clock Adjustment Selecting the Source Display Illumination Control Volume Dimmer Attenuator Switching preout System Q Built-in Amp Setting Audio Control Supreme Setting Adjusting the detail of Audio Control B.M.S. -
Page 3: Safety Precautions
• To prevent a short circuit, never put or leave any Refer to the catalog or consult your Kenwood dealer metallic objects (such as coins or metal tools) inside for connectable models of disc changers/ CD players. -
Page 4: Notes
• When you purchase optional accessories, check with In the example of folder/file tree shown below, the your Kenwood dealer to make sure that they work files are played in the order from with your model and in your area. -
Page 5: General Features
General features DISP Control knob Auxiliary input Clock display ATT indicator LOUD indicator * An equipment such as a portable audio player can Power be connected to the auxiliary input terminal using a commercially available mini-plug (3.5ø). Turning ON the Power ⁄... -
Page 6: Attenuator
General features Attenuator Audio Control Turning the volume down quickly. Select the source to adjust Press the [ATT] button. Press the [SRC] button. Each time you press the button, the Attenuator Enter Audio Control mode turns ON and OFF. Press the [VOL] knob. When the Attenuator is ON, the "ATT"... -
Page 7: Adjusting The Detail Of Audio Control
Adjusting the detail of Audio Control Audio Setup Setting the Sound system, such as Cross over Among the Basic Audio items, you can adjust the Bass Network. level, Middle level, and Treble level in detail. Select the Basic Audio item Select the source to adjust Select the desired item to be set in detail from Press the [SRC] button. -
Page 8: Speaker Setting
General features Speaker Setting TEL Mute Fine-tuning so that the System Q value is optimal The audio system automatically mutes when a call when setting the speaker type. comes in. Enter Standby When a call comes in Press the [SRC] button. "CALL"... -
Page 9: Switching Display
Switching Display Changing the information displayed. Press the [DISP] button. Each time the button is pressed the display switches as shown below. In Tuner source Information Display Frequency "FREQ" Clock "CLOCK" In CD & External disc source Information Display "D-TITLE" Disc title Track title "T-TITLE"... -
Page 10: Tuner/Tv Control Features
Tuner/TV control features Control knob AUTO/AME 1 - 6 Frequency display Band display ST indicator Preset station number Tuning Tuning Mode Selecting the station. Choose the tuning mode. Press the [AUTO] button. Select tuner source Each time you press the button, the Tuning mode Press the [SRC] button. -
Page 11: Direct Access Tuning
Function of remote control Auto Memory Entry Direct Access Tuning Putting stations with good reception in the memory automatically. Entering the frequency and tuning. Select the band for Auto Memory Entry Select the band Push the Control knob towards [FM] or [AM]. Press the [FM] or [AM] button. -
Page 12: Tv Tuning
Tuner/TV control features Function of LX BUS Television Function of LX BUS Television TV Tuning Preset TV Tuning Selecting the TV channel of a connected LX BUS Recalling the TV channels in the memory. Television (optional accessory). Select the TV band The action depends on the setting of the connected Push the Control knob toward [FM]. -
Page 13: Cd/Audio File/External Disc Control Features
CD/Audio file/External disc control features Control knob SCAN RDM/ F.SEL M.RDM Play time Track number Disc number IN indicator Playing CD & Audio file Playing External Disc Playing discs set in the optional accessory disc When a disc is inserted player connected to this unit. -
Page 14: Fast Forwarding And Reversing
CD/Audio file/External disc control features Function of disc changers with remote control Fast Forwarding and Reversing Direct Disc Search Fast Forwarding Doing Disc Search by entering the disc number. Hold down toward [¢] with the Control knob. Release to resume the playback. Enter the disc number Press the number buttons on the remote Reversing... -
Page 15: Random Play
Folder name display Release it when the music you want to listen Displays the current folder name. to is played Press the [SCAN] button. Random Play Play all the music on the disc or Audio file folder in Select the folder level random order. -
Page 16: Menu System
Menu system Control knob MENU Menu display Menu System Exit Menu mode Press the [MENU] button. Setting beep sound during operation, etc. ⁄ functions. The Menu system basic operation method is • When other items those applicable to the basic explained here. -
Page 17: Deactivating Security Code
⁄ ⁄ • You can set the Security Code with a 4 digit number of your • When the Security Code function is activated, "CODE choice. SET" changes to "CODE CLR". • The Security Code cannot be displayed or referenced. Make •... -
Page 18: Manual Clock Adjustment
Menu system In Standby mode In Standby mode Manual Clock Adjustment Dimmer Dimming this unit’s display automatically when the Select Clock Adjustment mode vehicle light switch is turned ON. Push the Control knob towards up or down. Select the "CLK ADJ" display. Display Setting "DIM AUTO"... -
Page 19: Bass Management System)
When LX AMP unit connecting Display Setting AMP Control "SPRM ON" Plays sound using the Supreme function. "SPRM OFF" Plays the original sound stored in the audio file. You can control the LX AMP connected to the unit. ⁄ Select AMP Control mode •... -
Page 20: Auxiliary Input Display Setting
Menu system Auxiliary Input Display Setting Text Scroll Selecting the display when changing to Auxiliary Setting the displayed text scroll. input source. Display Setting Select Auxiliary input source "SCL AUTO" Repeats scroll. Press the [SRC] button. "SCL MANU" Scrolls when the display changes. Select the "AUX"/ "AUX EXT"... -
Page 21: Basic Operations Of Remote Control
Basic Operations of remote control – FM/AM/ DIRECT [0] — [9] : This button is used when Kenwood Bluetooth HANDS FREE BOX is connected. For more information, refer to the instruction manual of Bluetooth HANDS FREE BOX. Loading and Replacing the battery Basic operations Use two "AA"/ "R6"-size batteries. -
Page 22: In Disc Source
Basic Operations of remote control Audio Control In Disc source [AUD] button [4]/ [¢] buttons Selects the Audio item to be adjusted. Going forwards and backwards between music. – [VOL] buttons ]/ [ ] buttons Adjusts the Audio item. Going forwards and backwards between disc/ ⁄... -
Page 23: Accessories/ Installation Procedure
Accessories/ Installation Procedure Accessories Installation Procedure 1. To prevent a short circuit, remove the key from the ignition and disconnect the - battery. 2. Make the proper input and output wire connections for each unit...1 3. Connect the speaker wires of the wiring harness. 4. -
Page 24: Connecting Wires To Terminals
TEL mute wire (Brown) Connect to the terminal that is grounded when either the telephone rings or during conversation. MUTE ⁄ To connect the Kenwood navigation system, consult your navigation manual. Dimmer control wire (Orange / White) To car light control switch. ILLUMI External amplifier control wire (Pink / Black) To "EXT.AMP.CONT. -
Page 25: Installation
Installation Installation Install onto the car bracket using the supplied screws (M5 × 6 mm, M5 × 7 mm). The holes of the car bracket to use will differ depending on the car model. Car Bracket Accessory3 (M5 × 7 mm) or Accessory4(M5 ×... -
Page 26: Troubleshooting Guide
Troubleshooting Guide Some functions of this unit may be disabled by What might seem to be a malfunction in your unit some settings made on this unit. may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems. - Page 27 LOAD: Discs are being exchanged in the Disc The messages shown below display your changer. systems condition. READING: The unit is reading the data on the disc. EJECT: • No disc magazine has been loaded in the changer. The disc magazine is not IN (Blink): The CD player section is not operating completely loaded.
-
Page 28: Specifications
Specifications Specifications subject to change without notice. Audio section Maximum output power FM tuner section : 50 W x 4 Full Bandwidth Power (at less than 1% THD) Frequency range (50 kHz space) : 22 W x 4 : 87.5 MHz – 108.0 MHz Speaker impedance Frequency range (200 kHz space) : 4 –...
