Summary of Contents for Toro Reelmaster 5010-H Series
Page 1

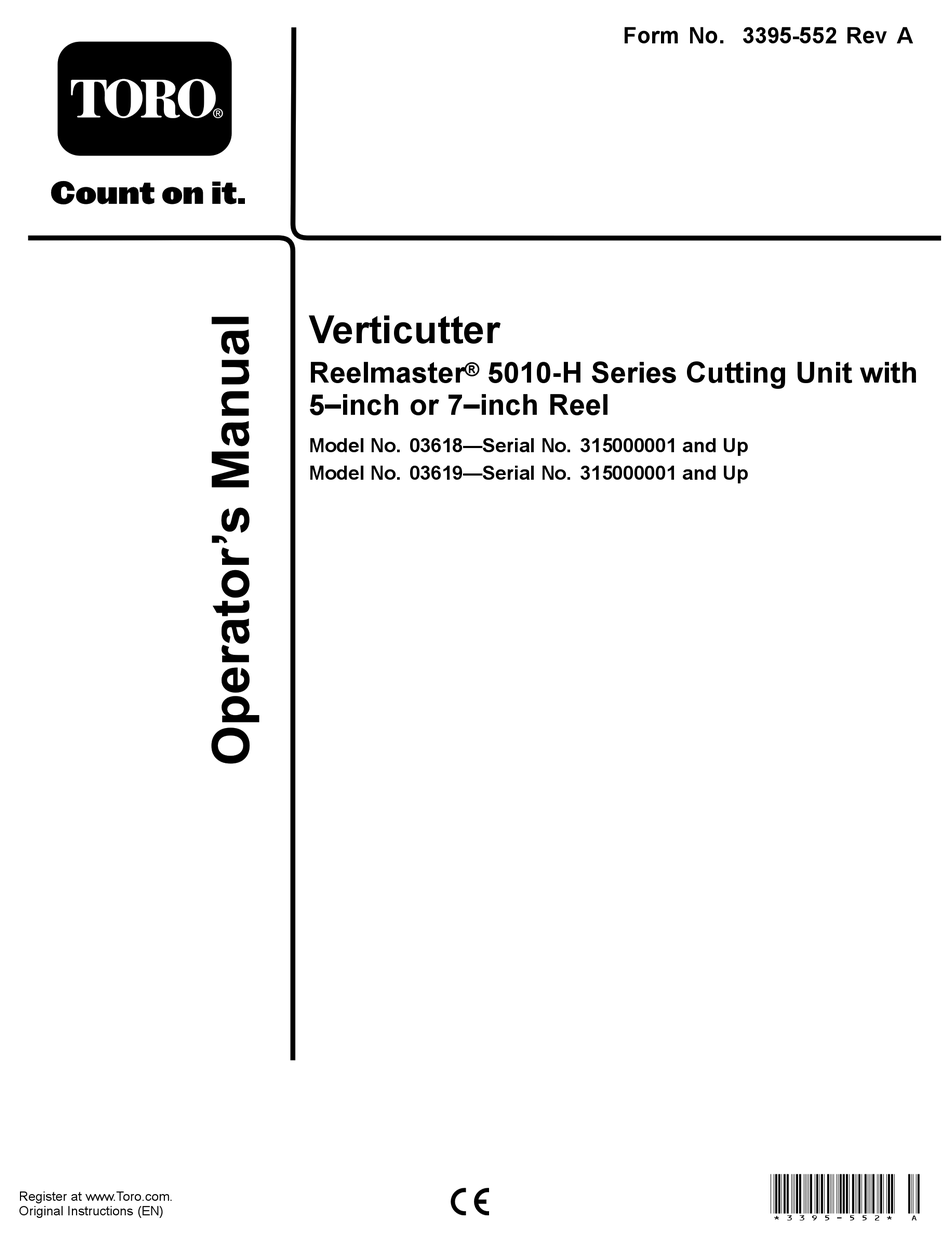

Form No. 3395-552 Rev A Verticutter Reelmaster ® 5010-H Series Cutting Unit with 5–inch or 7–inch Reel Model No. 03618—Serial No. 315000001 and Up Model No. 03619—Serial No. 315000001 and Up *3395-552* A Register at www.Toro.com. Original Instructions (EN)
Page 2
You are responsible for operating the product properly and safely. You may contact Toro directly at www.Toro.com for product and accessory information, help finding a dealer, or to register your product.
Contents Safety Safety ................3 This machine has been designed in accordance with EN ISO Safety and Instructional Decals ......... 4 5395:2013. Setup ................5 Hazard control and accident prevention are dependent 1 Inspecting the Verticutter........6 upon the awareness, concern, and proper training 2 Installing the Transport Rollers .......
• Perform only those maintenance procedures described in genuine parts. When it comes to reliability, Toro delivers this manual. If major repairs are ever needed or assistance replacement parts designed to the exact engineering is desired, contact an Authorized Toro Distributor.
Installation Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. Verticutter Inspect the verticutter. Transport roller assembly Install the transport rollers. Cotter pin O-ring Install the O-ring and the grease fitting. Straight grease fitting Install the shoulder bolt Shoulder bolt (RM5010–Hybrid only)
Note: Determine the left and right sides of the machine from the normal operating position. Note: Whenever the verticutter has to be tipped to expose the verticutter blades, use the kickstand (supplied with Installing the Transport Rollers traction unit); refer to Figure Parts needed for this procedure: Transport roller assembly...
4. Install the O-ring on the reel motor (Figure Note: The electric motor is shown; this step also applies to the hydraulic motor. Installing the O-ring and the Grease Fitting Parts needed for this procedure: O-ring Straight grease fitting Procedure The grease fitting must be installed on the reel motor side of the verticutter.
Installing the End-Weight Kit Adjusting the Blade Depth (Model 03618 only) No Parts Required Parts needed for this procedure: Procedure End-weight kit (sold separately) Note: The maximum recommended blade penetration depths are as follows: Procedure • Model 03618 is 3 mm (1/8 inch). Buy and install the end weight kit appropriate for the •...
Adjusting the Rear Grass Adjusting the Roller Scrapers Shield No Parts Required No Parts Required Procedure 1. Loosen the flange nuts that secure the roller scrapers Procedure (Figure 11). Note: When operating in turf conditions where much debris or unusually heavy thatch is encountered, open the rear discharge shield to help allow the debris to discharge from the reel.
Product Overview • Lower the roller bracket before the verticutter is lowered to the shop floor. • Raise the roller bracket after the verticutter is raised Specifications to the operating position. Model Net weight 3. Secure the transport roller bracket to the side plate pin with the cotter pin.
Operation Note: Determine the left and right sides of the machine from the normal operating position. Training Period Before operating the verticutter reels, evaluate the performance of the reel at the desired setting. Operate in a clear, unused area to determine if the desired results will be achieved.
Maintenance Removing the Verticutter Blades from the Shaft Lubricating the Verticutter 1. Secure the end of the verticutter shaft, which has only one washer and nut, in a vise. Each verticutter has 5 grease fittings (Figure 12) that must be 2.
Installing the Verticutter Blades 1. Assemble a blade (Figure 14). 2. Assemble a large spacer. 3. Do not invert the reel blades when assembling them on the reel shaft. Note: If the blades are inverted, the blades that are in use, (rounded) will be mixed with the sharp ends of the blades which were not in use.
Optional Blade Spacing 0.50-Inch Blade Spacing for Model 03618 To change the configuration of the verticutter from the standard 0.75-inch spacing to the 0.50-inch spacing requires an additional 34 spacers, part no. 17-1580 and an additional 10 carbide blades, part no. 106-6355, or an additional 10 regular blades and part no.
17) are available for the roller rebuild kit. Refer to your parts catalog or contact servicing the roller. The Roller Rebuild Kit includes all the your Authorized Toro Distributor for assistance. Figure 17 1. Rebuild kit (Part No. 114–5430) 6. Bearing nut 2.
Page 18
The method of transmission shall be electronic transmittal. This machinery shall not be put into service until incorporated into approved Toro models as indicated on the associated Declaration of Conformity and in accordance with all instructions, whereby it can be declared in conformity with all relevant Directives.
Page 19
The Way Toro Uses Information Toro may use your personal information to process warranty claims, to contact you in the event of a product recall and for any other purpose which we tell you about. Toro may share your information with Toro's affiliates, dealers or other business partners in connection with any of these activities. We will not sell your personal information to any other company.
Page 20
Countries Other than the United States or Canada Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor's service or have difficulty obtaining guarantee information, contact the Toro importer.
