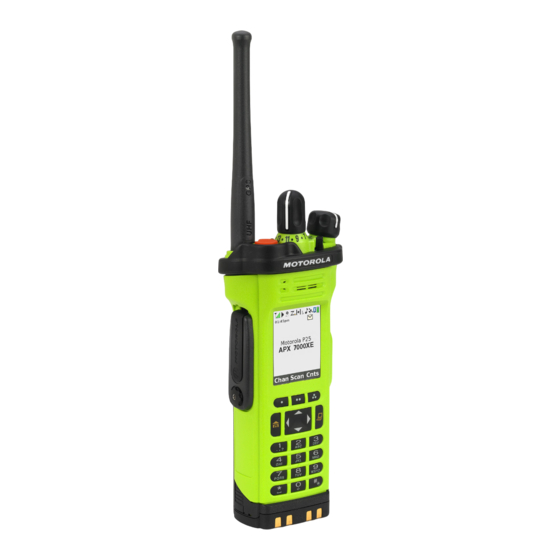

Motorola APX 7000 XE UHF Instructions

(LA-RICS) Los Angeles Regional Interoperable Communications System
Emergency
Trigger
H
CAS D9
Repeat /
Direct Switch
MOTOROLA
LA-RICS QT0555
LA-RICS QT0555
Channels are located on the center knob on the top of the radio 1 through 16
Zones are changed through the key pad
Zone change:
Channel change via Kepad: Press and release the soft key
Warning: When changing channels via the keypad, if the channel knob is moved. It will override any channel selection you have made.
Emergency Trigger:
NEW**
APX Keypad presets, Dynamic Zone & GPS programming on page 3:
Motorola APX 7000 XE UHF, 7/800 MHz Multi-band radio
A or B Tone off
C tone on (Normal)
LA-RICS
Site Display
LA-RICS
Radio ID
LA-RICS radios
Light on / off
Press and release the soft key
Press the up / down key pad
Press and release the soft key
Press the up / down key pad
Press and release the soft key
To activate: Press and hold the "E-Trigger" button
To reset: Turn radio off wait 3 seconds then turn on
Channel Knob
1 through 16
On/Off
Volume Knob
5
Scan
Delete
Radio ID
LASD
PTT
Squelch
Release
Keypad
Lock
Full
Keypad
Battery
Release
below "ZONE" once
to change zones
below the "Sel" to enter the zone, Done
below "chan" once
to change channels in the current zone
below the "Sel" to enter the Chan, Done
for 3 Sec's
9
MOTOROLA
Time
H
AES
1450
Zone & Name
Z4 D9/D4
CAS D9
Channel
LASD 5358
Zone Chan Scan
1 2 3
,.?
ABC DEF
4 5 6
GHI MNO
JKL
7 8 9
PQRS TUV
WXYZ
0
* #
3 June 2016
Communications Solutions 323-881-8033, JRH
A PDF of this can be found at
http://intranet/intranet/bureaus/cfmb/communications/index.htm
Note: This information may change with out notice.
